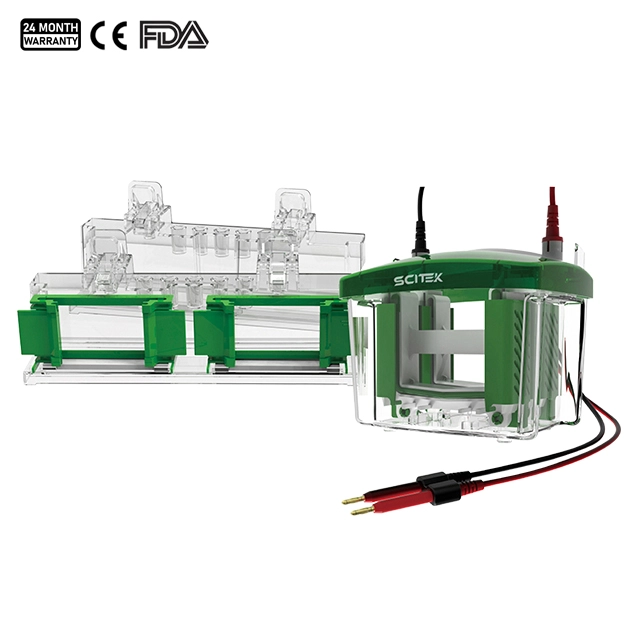

The vertical electrophoresis tank is designed for efficient separation and analysis of macromolecules, such as DNA, RNA, and proteins, through gel electrophoresis. This model accommodates sample combs for 10 and 15 samples, with the capacity to run 1-2 gels simultaneously.
Vertical Electrophoresis Tank Feature:
- Finishes four mini-gel electrophoresis experiments in an hour, boosting productivity or fulfilling particular experimental requirements.
- For exact alignment and to stop gel leaks, edge banding is affixed permanently to the glass plate.
- Gel polymerization reaction is not inhibited by special material electrophoresis comb.
Vertical Electrophoresis Tank Specifications:
| Model |
ET-V04 |
| Glass Tray(W×L)(mm) |
Thick type: 101×83 |
| Thin type: 101×73 |
| Gel Tray(W×L)(mm) |
Hand glue: 83×73 |
| Precast glue: 86×68 |
| Sample Comb |
10 samples |
| Number of Gels |
1-4 pcs |
| Gel Thickness |
Standard 1.0mm, optional 0.75 & 1.5mm |
| Number of Samples |
10~40pcs |
| Buffer Capacity |
1000ml |
| Sizes (W×D×H)(mm) |
180×130×130 |
| Shipping Size(W×D×H)(mm) |
420×370×320 |
| N.W./G.W. (kg) |
2.9/5 |
| Standard Accessories |
| Name |
Quantity |
| Electrophoresis Tank |
1 |
| Cap |
1 |
| Electrode Core |
1 |
| Gel Casting Base |
2 |
| Gel Frame |
4 |
| Single Glue Baffle |
1 |
| Gel Shovel |
1 |
| Glass Plates |
5 pairs |
| 1.0mm Thickness 10 Wells Comb |
5 |
Advantages of Vertical Electrophoresis Tank:
- Because built-in ridges prevent air contact, oxidized film formation is less likely to occur, increasing experiment success and reproducibility.
- The two gels can be seen filling simultaneously thanks to the filling frames’ parallel design, which also features rubber gaskets and spring-loaded rods for a tight seal.
- On any horizontal plane, accurate alignment is ensured by gel frames equipped with cams.
Application of Vertical Electrophoresis Tank:
- Molecular Biology: Ideal for the separation and analysis of nucleic acids and proteins.
- Genetic Research: Used for DNA fingerprinting, genotyping, and molecular cloning.
- Biotechnology: Essential in protein purification, DNA sequencing, and genetic engineering experiments.
- Clinical Diagnostics: Utilized in the analysis of clinical samples for diagnostics and research.
- Educational Laboratories: Perfect for teaching basic and advanced electrophoresis techniques in academic institutions.
