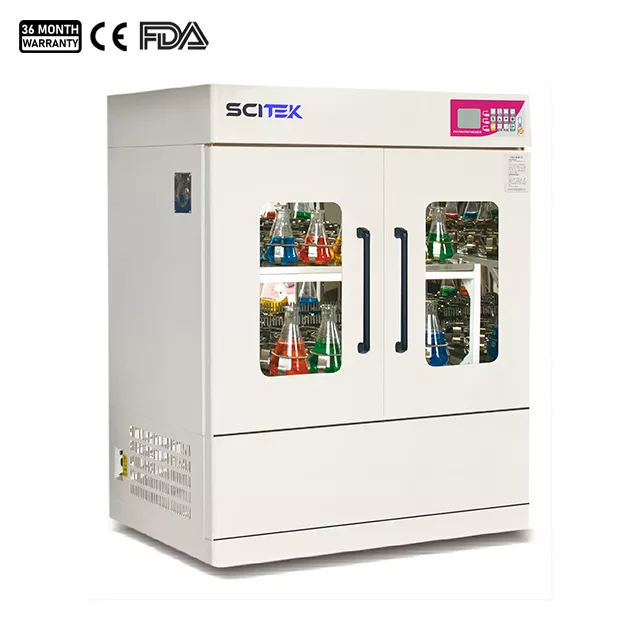

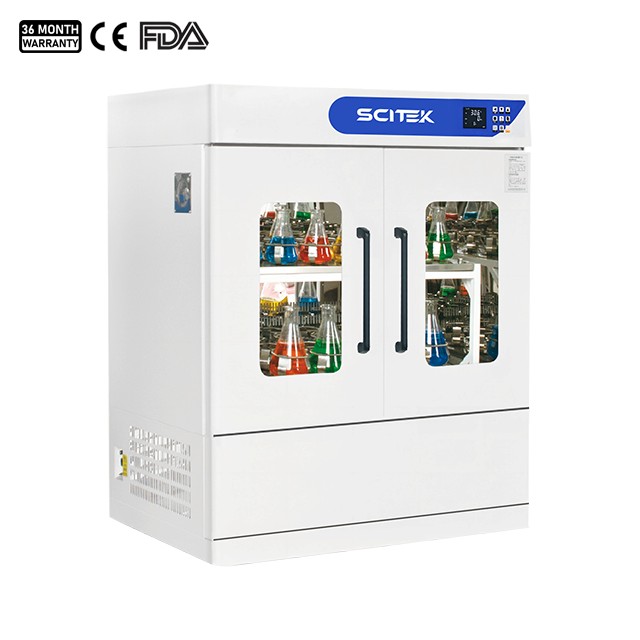

Vertical double door shaking incubator is used to heat and shake a variety of samples such as cell cultures and bacterial suspensions.
This vertical double door shaking incubator is a highly efficient unit tailored for molecular science, food safety, environmental protection, and various research applications. It comes equipped with an LCD display and a PID controller for precise regulation. Featuring a forced convection circulation mode and rotary oscillation, this powerful shaking incubator meets a wide range of experimental needs and is available at an economical price.
| Model | ICB-305VDS | ICB-305VDSI |
| Display | LCD display | |
| Controller | PID | |
| Circulation Mode | Forced convection | |
| Shaking Mode | Convolution | |
| Drive Mode | Multidimensional drive | |
| Capacity(L) | 305L | |
| Temperature Range(℃) | RT+5~65℃ | 4~65℃ |
| Temperature Accuracy(℃) | ±0.1℃ | |
| Temperature Uniformity (℃) | ±0.5℃(at 37℃) | |
| Cyclotron Frequency Range (rpm/min) | 20-350(r/min)(To do static culture) | |
| Cyclotron Frequency Sensitivity (rpm) | ±1 | |
| Orbit Range (mm) | Φ26 | |
| Refrigerant | / | Environmentally friendly refrigerant |
| Timing Range(h/min) | 0-9999h/min(Any time,continuous duty) | |
| Standard Capacity | Clamp flask:250ml×28+500ml×22 | |
| Max. Capacity | Clamp flask:100ml×100 or 250ml×56 or 500ml×44 or 1000ml×24 | |
| Auxiliary Functions | Ultra-low speed start, Adjustable start speed, Overspeed auto-prtection, Watch dog timer, Parameters Storage, Encryption parameters, Electricity incoming recovery, Refrigeration unit overload protection, Sound and light alarm when upper and lower overtemperature, Function of lighting and UV disinfection, Automatically stop when opening the door (optional) | |
| External and Internal Material | Stainless steel | |
| Number of platform | Two | |
| Power Supply | AC220V±10%, 50/60Hz; 110V, 60Hz | |
| Consumption | 900W | 1150W |
| Shaking Plate Size(mm) | 710×455 | |
| Size(W×D×H)(mm) | 950×700×1280 | |
| Shipping Size (W×D×H)(mm) | 1130x880x1530 | |
| G.W. (kg) | 295 | |
To guarantee that the vertical double door oscillation incubator is not harmed during transit, we package it professionally. To prevent vibration or impact, each item is placed in a robust hardwood box lined with materials that absorb stress. In order to remind transporters to handle the item carefully, we also clearly designate the outside with anti-tilt and fragile markings.
We carry out a thorough examination of every shipment to make sure the products are in optimal condition before they leave the factory.
Assume that any issues with damage result from the shipping procedure. In that instance, we will guarantee that customers’ rights and interests are protected by offering prompt after-sales support, which includes free repair or replacement. We are committed to providing you with the best quality products and the most reliable transport guarantee, so you have no worries.
What is the difference between shaker and incubator?
A shaker is a device that provides controlled agitation or mixing of samples, often using a shaking motion. An incubator, on the other hand, is a device that maintains a controlled environment for the growth of organisms, typically regulating temperature and sometimes humidity or CO2 levels.
In essence, a shaker is used for mixing, while an incubator is used for cultivating. Shaking incubator combine both functions, which can both agitate and maintain a controlled environment.
What is the principle of shaking incubator?
The principle of a shaking incubator involves combining controlled agitation with a stable environmental condition. It maintains precise temperature and sometimes humidity or CO2 levels, essential for sample growth, while simultaneously shaking or agitating the samples. This agitation promotes proper mixing and aeration, which is crucial for the growth of cell cultures, microbial cultures, or other biological samples, ensuring uniform conditions throughout the sample.
