- Model : WP-U10LSSE; WP-U10TOSE; WP-U10MBSE; WP-U10BSE; and other SE series
- Conductivity : <0.2μs/cm
- TOC : <3ppb; <5ppb; <10ppb; <20ppb
- Microorganism : <1cfu/ml
- Shipping Size(mm) : 595x540x650
Ultrapure Water System, Supereconomic Series
Ultrapure Water System Feature:
- The ultrapure water system is equipped with a low-pressure alarm function to monitor the status of the water source in real time.
- The water tank will stop discharging water automatically when it is full.
It will automatically backwash for 30 seconds when turned on and 10 seconds when turned off. - Online three-channel water quality test:
Water source TDS monitoring is used to detect the dissolved solids content of the water source.
Online conductivity and temperature monitoring for RO and UP water;
Fully automatic RO membrane anti-fouling flushing program to extend the life of RO membrane.
Optional water storage tank capacity. - New types of quick-connect couplings make filter cartridge replacement and maintenance more convenient.
- Nuclear grade resin and full downflow ultra-purification column design always ensure top-quality water.
- Constant pressure system for ultrapure water
Ultrapure Water System Specification:
| Ultrapure Water System, Supereconomic Series | ||||
| Model | WP-U10LSSE | WP-U10TOSE | WP-U10MBSE | WP-U10BSE |
| WP-U20LSSE | WP-U20TOSE | WP-U20MBSE | WP-U20BSE | |
| WP-U30LSSE | WP-U30TOSE | WP-U30MBSE | WP-U30BSE | |
| WP-U40LSSE | WP-U40TOSE | WP-U40MBSE | WP-U40BSE | |
| WP-U50LSSE | WP-U50TOSE | WP-U50MBSE | WP-U50BSE | |
| WP-U60LSSE | WP-U60TOSE | WP-U60MBSE | WP-U60BSE | |
| WP-U80LSSE | WP-U80TOSE | WP-U80MBSE | WP-U80BSE | |
| Water Output (L/H) | 10/20/30/40/50/60/80 | 10/20/30/40/50/60/80 | 10/20/30/40/50/60/80 | 10/20/30/40/50/60/80 |
| Feed Water Requirements | Tap water: conductivity<400μs, 5-40℃, 1.0-5.0Kgf/cm² | |||
| RO Water Quality | ||||
| Conductivity | <0.2μs/cm | |||
| UP Water Quality | ||||
| Resistivity | 18.25 MΩ·cm@℃ | |||
| TOC | <3ppb | <5ppb | <10ppb | <20ppb |
| Microorganism | <1cfu/ml | |||
| Particle (>0.22μm) | ||||
| Endotoxin | <0.001EU/ml | <0.002EU/ml | <0.005EU/ml | / |
| RNA Enzyme | <0.01ng/ml | / | / | / |
| DNA Enzyme | <0.04pg/ml | / | / | / |
| Terminal Filter | 0.22μm terminal flter | Optional | ||
| Storage Vessel | 30L sterile tank with Dual wavelength UV lamp, 185nm/254nm | 3.2 gallon pressure tank | ||
| Ion Content | Na+: ＜0.1ppb, K+:＜0.1ppb, Ca2+: ＜0.1ppb, Mg2+: ＜0.1ppb, Fe3+: ＜0.01ppb, Cl-: ＜0.1ppb, NO3-: ＜0.1ppb, SO₄²⁻: ＜0.1ppb, PO₄³⁻: ＜0.1ppb, CO₃²⁻: ＜0.1ppb, Br⁻: ＜0.1ppb | |||
| UV Lamp | Dual wavelength UV lamp, 185nm/254nm | / | ||
| Standard Configuration | Ultra low organic purification column | / | ||
| Equipped with high throughput ultrafiltration membrane | / | |||
| Consumption | 80~120W | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz (Optional) | |||
| Shipping Size (mm) | 595x540x650 | |||
| Gross Weight | 35kg | |||
Ultrapure Water System Application:
- WP-ULSSE Series Life Science Type: For electrophoresis, endotoxin analysis, cell immunity chemistry, nucleic acid and protein separation, monoclonal antibody research.
- WP-UTOSE Series Trace Organic Type: Suitable for GFAAS, GC-MS, HPLC, ICP-MS, IC, TOC analysis, and SPE.
- WP-UMBSE Series Molecular Biology Type: Used for mammal tissue cell cultivation, microorganism analysis, molecular biology research, and plant tissue cell cultivation.
- WP-UBSE Series Basic Type: Ideal for AAS, atomic fluorescence, normal chemistry, and ICP-AES.
Details of Ultrapure Water System (WP-U30LSSE):

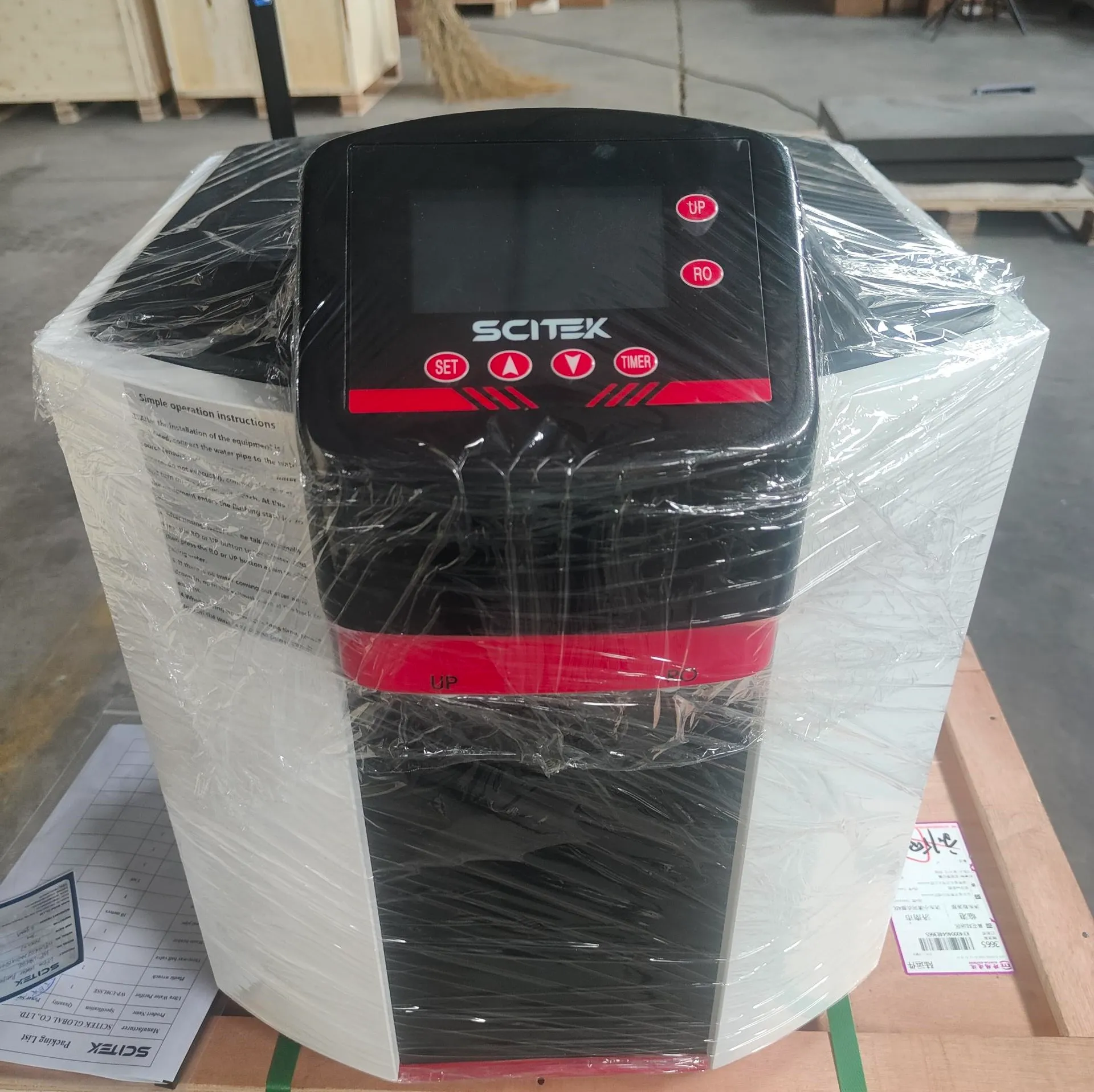

The ultrapure water system features a modern design with a combination of black and red color with a display and physical button operation area. The touch screen can display the working status and water quality parameters of the equipment in real time, and the buttons are reasonably designed for user-friendly operation.

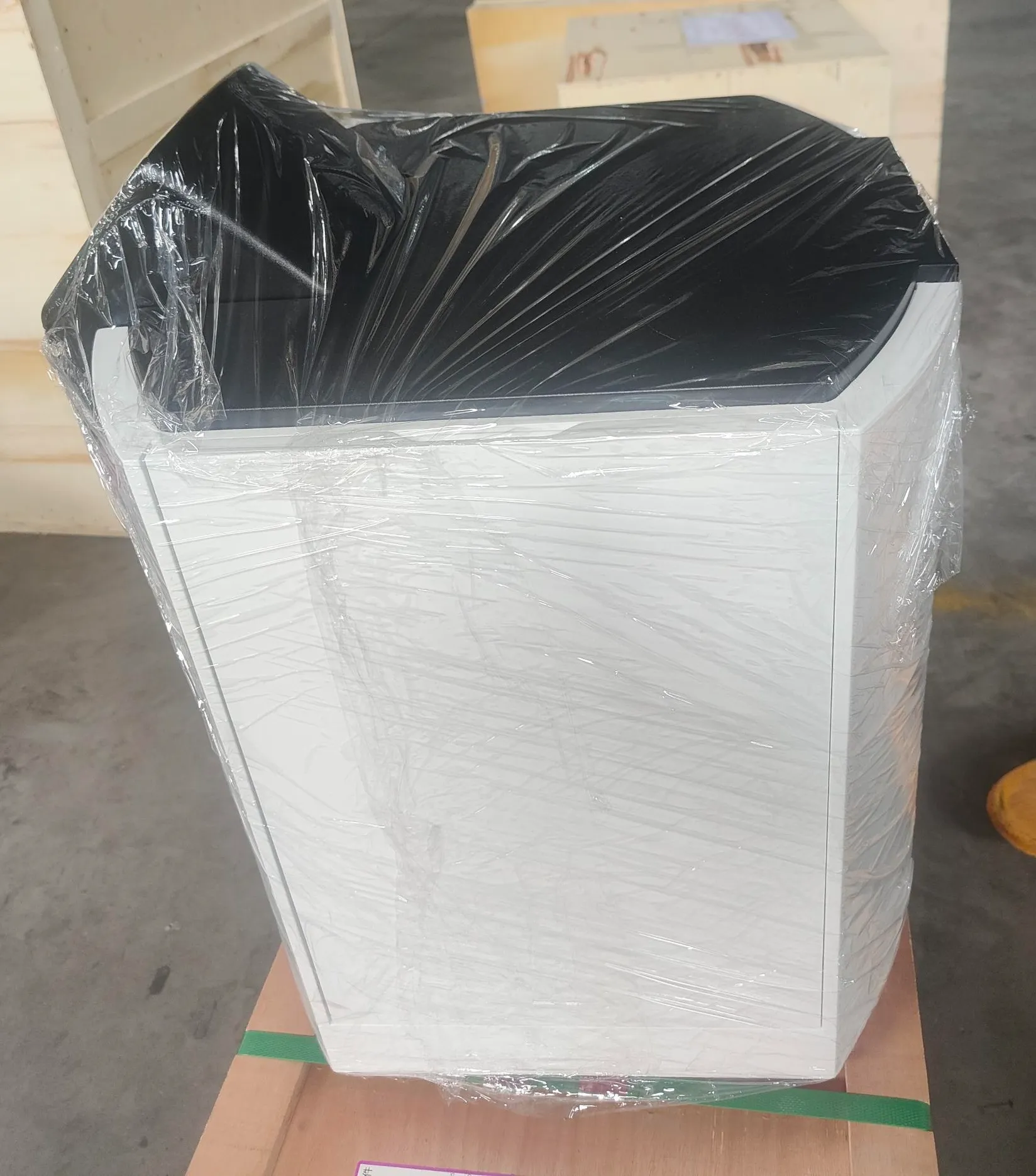

The ultrapure water system unit is wrapped in white protective plastic film and placed securely on a shockproof pallet to ensure the unit’s safety during transportation.

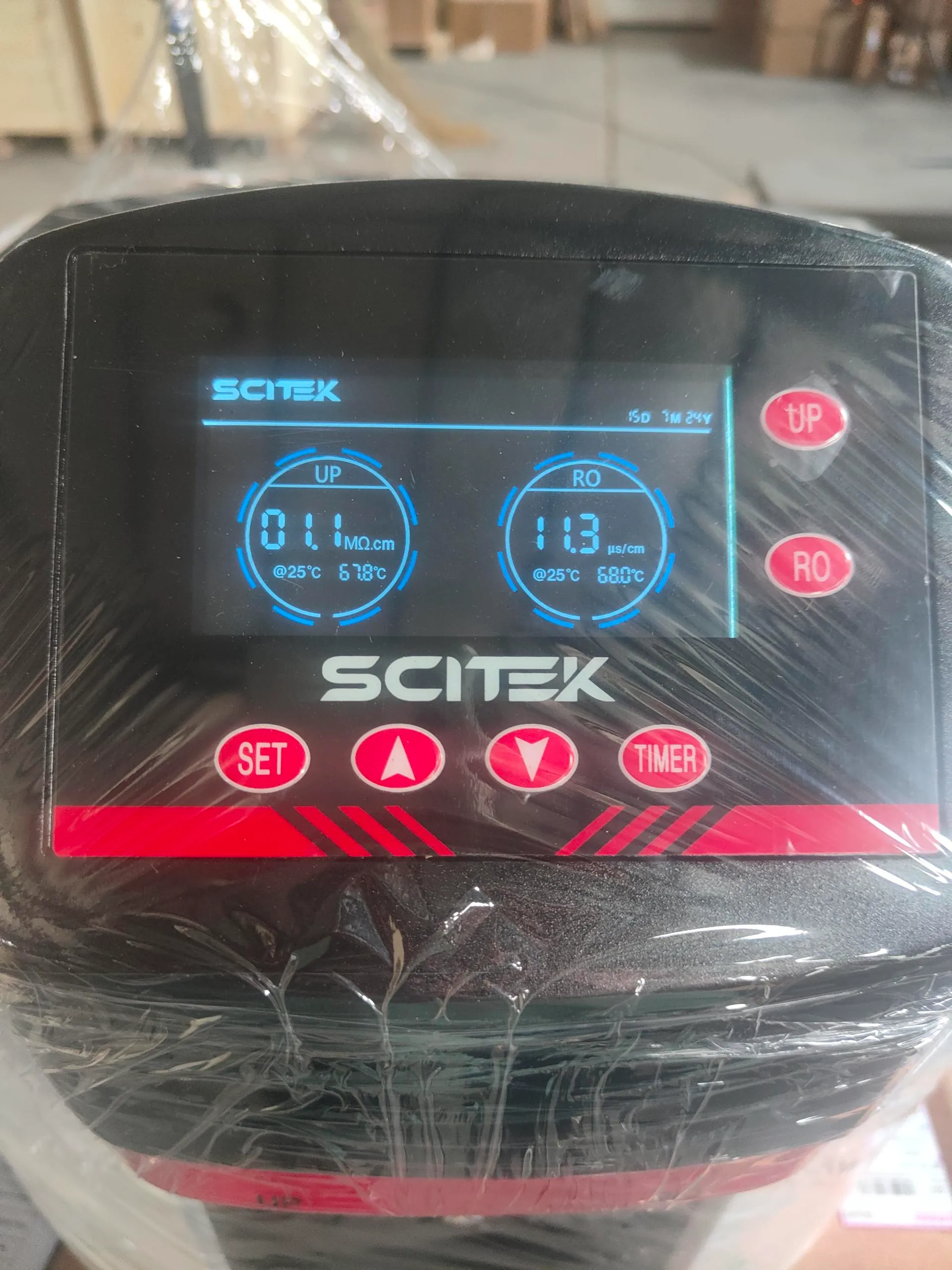

Current water quality information is clearly shown on the high-definition display, making it easy for users to quickly understand and use.

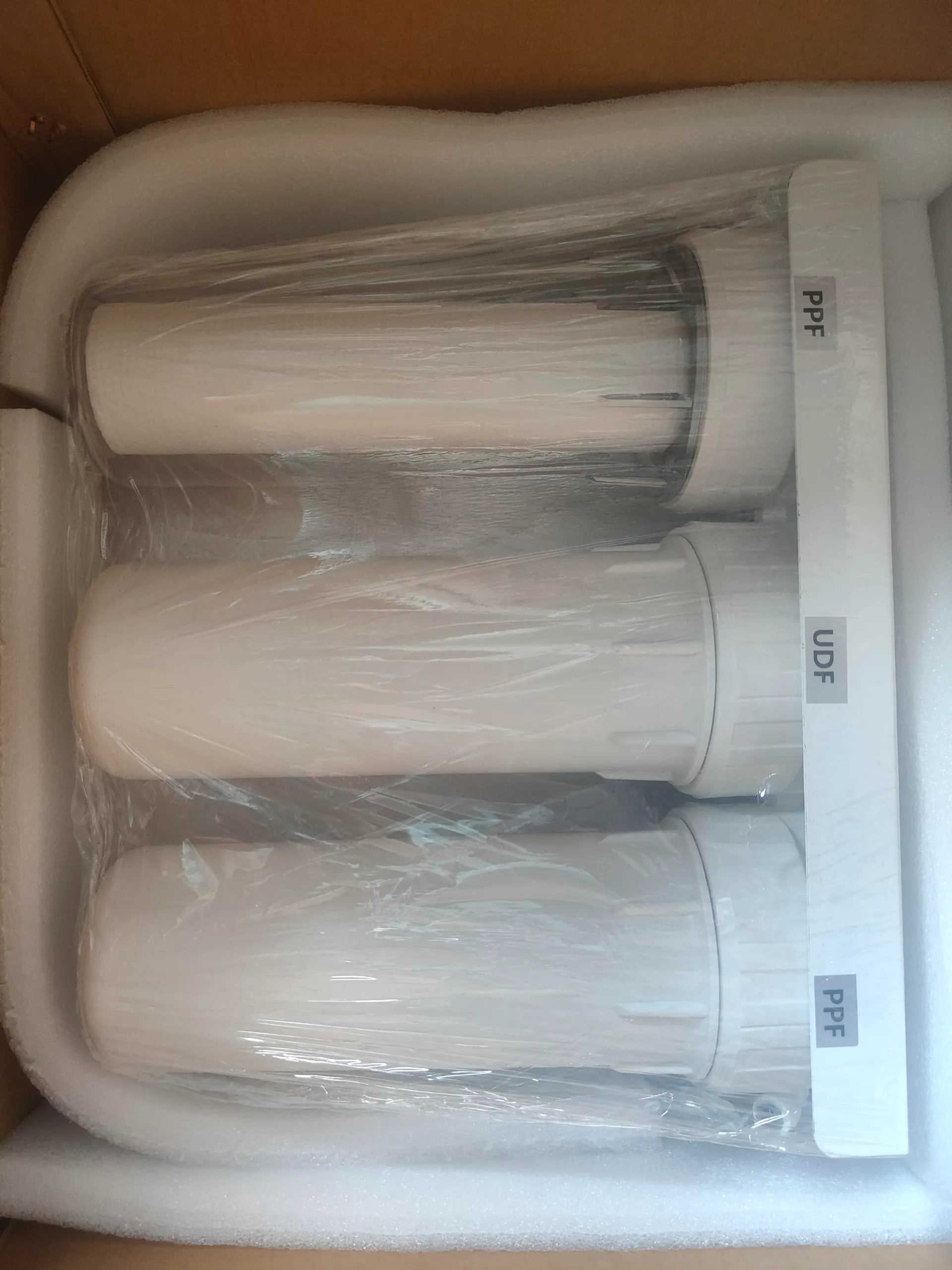

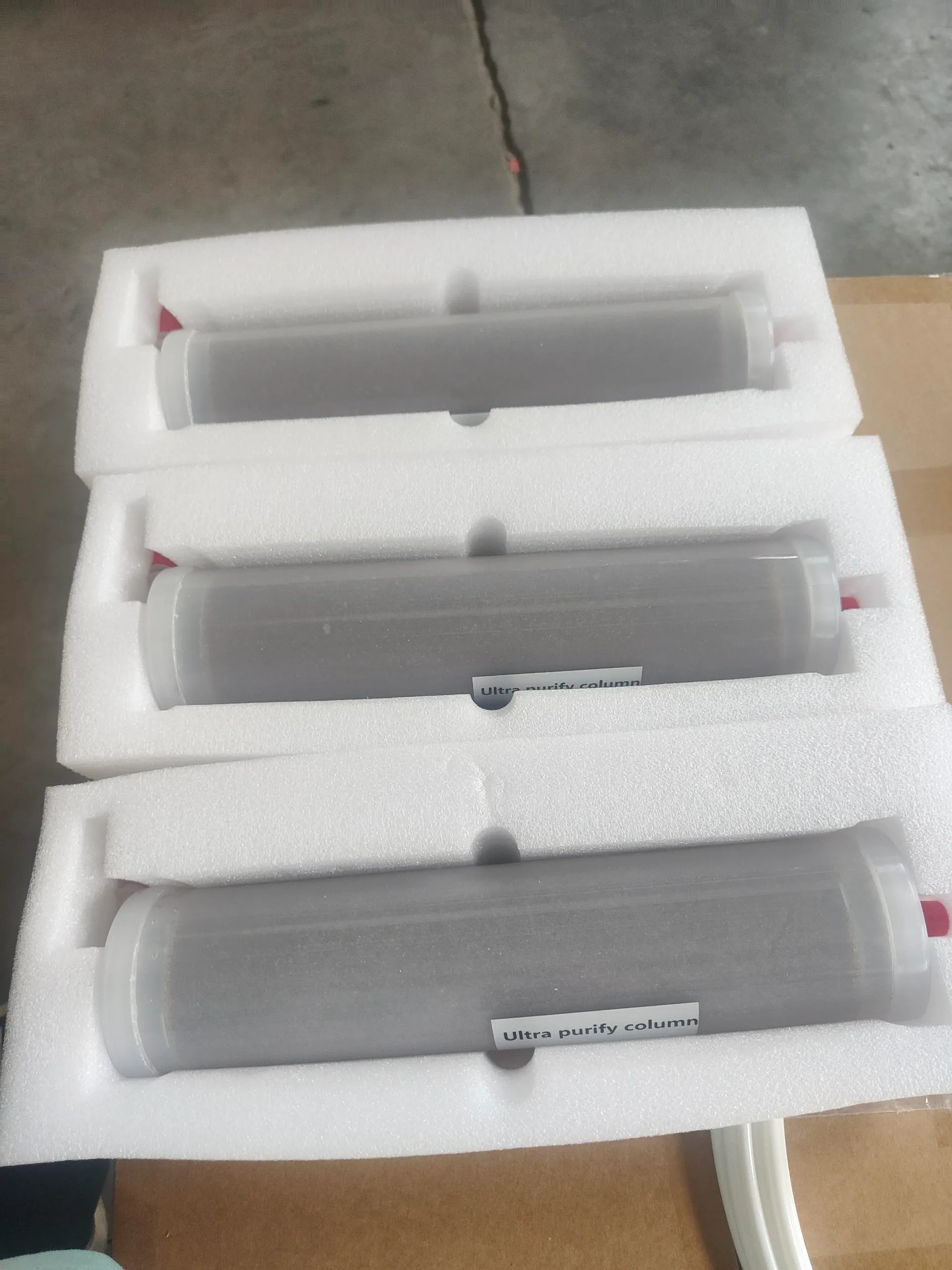

A display of the internal multi-stage cartridge module with three large cartridges neatly arranged in individually sealed packages to ensure cleanliness during transportation and installation. The cartridges are of superior quality for high efficiency filtration and deionization.
