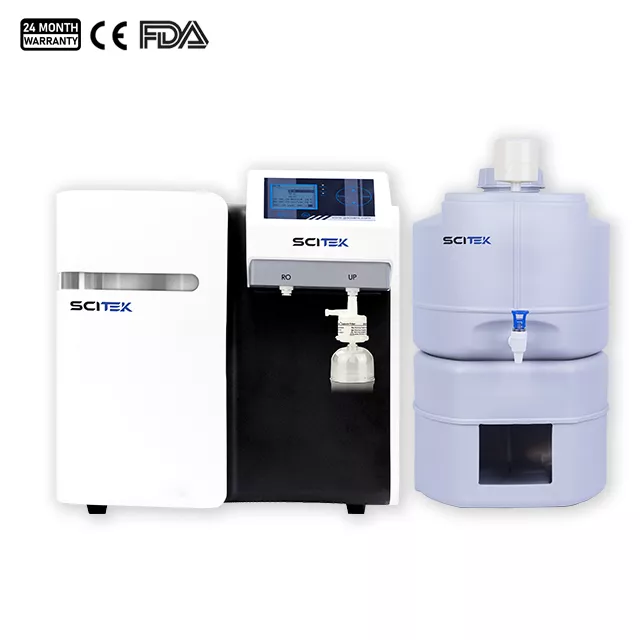

Ultrapure Water System, High-end Series

This high-end water purifier can produce pure water with a TOC of less than 5 PPT, suitable for standard experimental use in the life sciences.

  • Model : WP-U5LSH; WP-U5TOH; WP-U5MBH; WP-U5BH; and other LSH/TOH/BH series
  • Conductivity : <0.2μs/cm
  • TOC : <3ppb; <3ppb; <5ppb; <20ppb
  • Microorganism : <1cfu/ml
  • Shipping Size(WxDxH)(mm) : 645x490x560

Share the product

Category:

This high-end series laboratory ultrapure water system adopts advanced multi-purification technology, which can efficiently remove all kinds of pollutants in the water and output ultra-pure laboratory water.

The water purifier is equipped with precision-activated carbon filtration, ultrafiltration membrane filtration, UV disinfection, and another multi-stage purification system, which can remove bacteria, heavy metals, organic matter, and other impurities. Ensure that the water quality meets the international standards of ASTM, CAP, ISO and so on.

Ultrapure Water System Feature:

  1. Full-automatic microcomputer control system, more simple and convenient operation.
  2. High-definition touch screen, modular control system.
  3. Built-in TOC (Total Organic Carbon) online monitoring module, at any time to observe the changes in water quality TOC.

Ultrapure Water System Specifications:

Ultrapure Water System, High-end Series
Model WP-U5LSH WP-U5TOH WP-U5MBH WP-U5BH
WP-U10LSH WP-U10TOH WP-U10MBH WP-U10BH
WP-U20LSH WP-U20TOH WP-U20MBH WP-U20BH
WP-U30LSH WP-U30TOH WP-U30MBH WP-U30BH
WP-U40LSH WP-U40TOH WP-U40MBH WP-U40BH
WP-U60LSH WP-U60TOH WP-U60MBH WP-U60BH
Water Output (L/H) 5/10/20/30/40/60 5/10/20/30/40/60 5/10/20/30/40/60 5/10/20/30/40/60
Feed Water Requirements Tap water: conductivity<400μs, 5-40℃, 1.0-5.0Kgf/cm²
RO Water Quality
Conductivity <0.2μs/cm
UP Water Quality
Resistivity 18.25 MΩ·cm@℃
TOC <3ppb <3ppb <5ppb <20ppb
Microorganism <1cfu/ml
Particle(>0.22μm)
Endotoxin <0.001EU/ml <0.002EU/ml <0.005EU/ml /
RNA Enzyme <0.01ng/ml / / /
DNA Enzyme <0.04pg/ml / / /
Terminal Filter 0.01μm terminal flter 0.05μm terminal flter /
Storage Vessel 30L sterile tank with Dual wavelength UV lamp, 185nm/254nm
UV Lamp Dual wavelength UV lamp, 185nm/254nm /
Water Intake Function Water intake can be fixed time, quantity and quality
Special Function Online TOC detection
Consumption 80~120W
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz (Optional)
Shipping Size (WxDxH)(mm) 645x490x560
Gross Weight 33kg

Advantages of Ultrapure Water System:

  1. Pure water storage selection of 30L aseptic barrel, can be dynamically displayed and intelligent control of the water level.
  2. Aseptic barrel built-in dual-wavelength UV lamps, can effectively reduce the TOC content of water.
  3. Support to view the operation and alarm data at any time.
  4. Ultra-pure water circulation system can be freely selected automatically and manually, to maintain a low level of bacterial contamination of the system.
  5. System settings are password protected to prevent unauthorised changes and use.
  6. Equipped with primary water filtration system to increase the service life of the ultrapure water system.
  7. Water shortage, water full alarm, source water, RO reverse osmosis water, DI deionised water/UP ultrapure water exceeds the alarm.

Applications of Ultrapure Water System:

  1. WP-ULSH Series Life Science Type: Experiment fields such as electrophoresis, endotoxin analysis, cell immunity chemistry, nucleic acid and protein separation monoclonal antibody research.
  2. WP-UTOH Series Trace Organic Type: Graphite furnace atomic absorption spectrometry(GFAAS), gas chromatography and mass spectrum combination(GC-MS), high performance liquid chromatography (HPLC), inductive coupling plasma mass spectrum (ICP-MS), ion mass spectrum(IC), TOC analysis,solid-phase extraction(SPE)
  3. WP-UMBH Series Molecular Biology Type: Cultivation of mammal tissue cell, analysis of microorganism, research of molecular biology and cultivation of plant tissue cell
  4. WP-UBH Series Basic Type: Atomic absorption spectrum(AAS), atomic fluorescence normal chemistry, inductive coupling plasma spectrograph (ICP-AES)

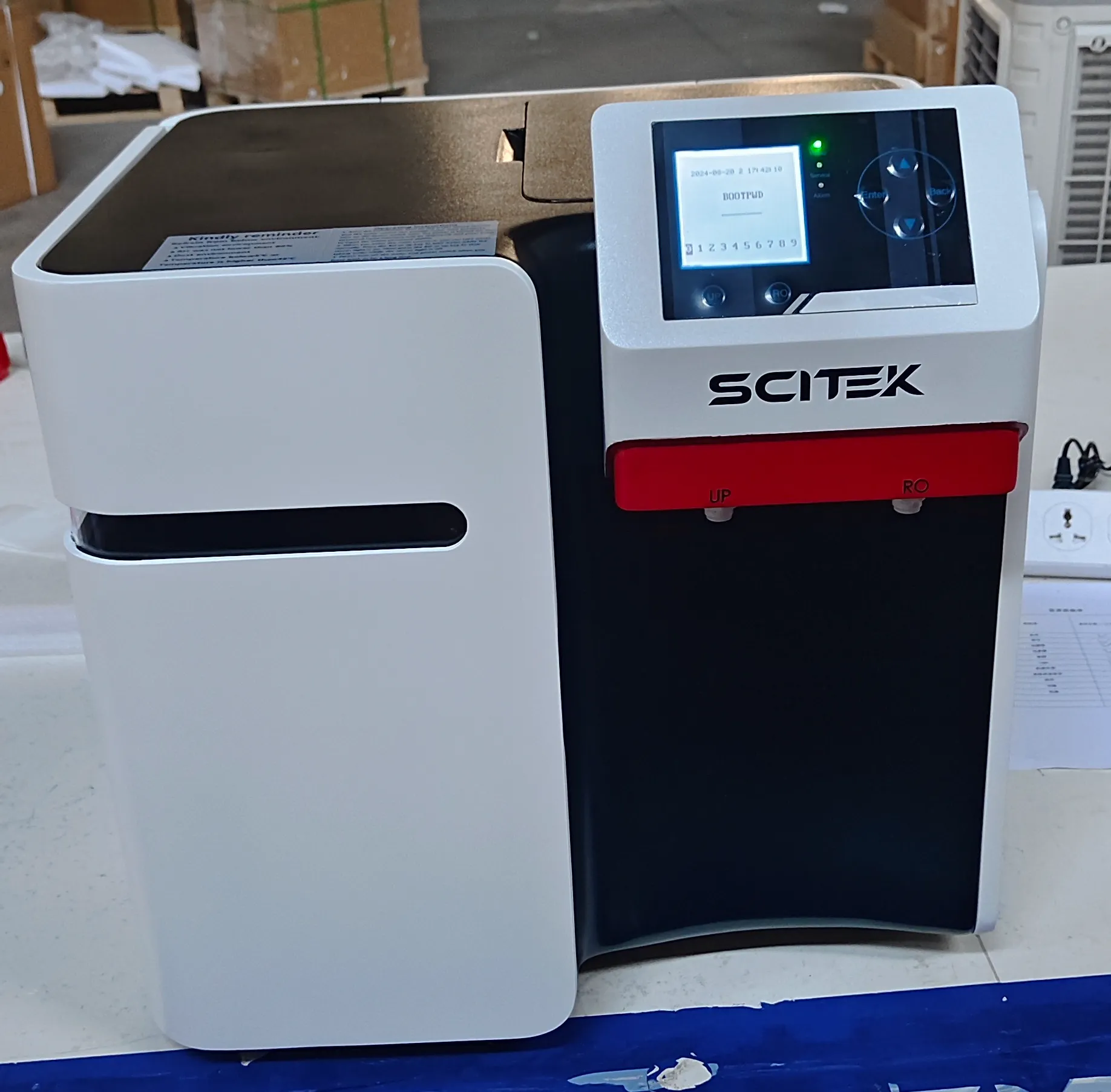

Details of Ultrapure Water System(WP-U10LSH):

Ultrapure Water System

The front of the ultrapure water system features a simple and intuitive interface with a high-definition touch screen that displays real-time water quality data, operating status and consumable replacement reminders for easy operation.

Ultrapure Water display

Ultrapure Water System

Ultrapure Water System

Internal integrated multi-stage filtration system, including pre-filtration, reverse osmosis (RO), deionization (DI) and ultraviolet sterilization (UV) modules, ensures that the quality of the effluent meets the standard of ultrapure water. The modularized design is convenient for maintenance and enhances the service life.

Ultrapure Water tank

Equipped with high sealing pure water storage tank, smooth inner wall to prevent microbial growth, built-in water quality monitor to maintain high quality of pure water at all times.



Ultrapure Water System package
