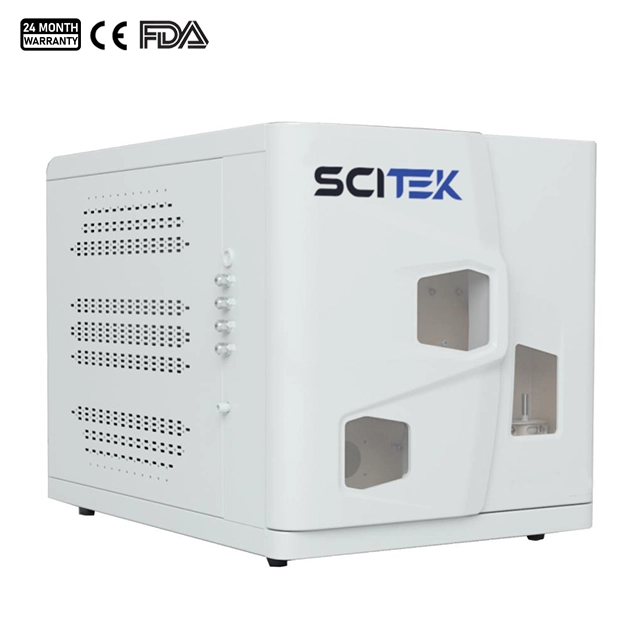

TOC-A5000 total organic carbon analyzer is a highly automated laboratory water quality analyzer. It has automatic dilution, purging, and acid addition capabilities.
This TOC analyser is used to detect total organic carbon levels in a wide range of water purities. It has a high level of detection sensitivity, is suitable for continuous measurements and provides results in real time. Scitek’s toc analyser is easy to operate and low maintenance. It is easy to operate and low maintenance, and in the event of a detection anomaly, preventive action can be taken immediately. The A5000 TOC analyzer is popular in the pharmaceutical, drug manufacturing, laboratory and water analysis industries.
| Model | TOC-A5000 |
| Detector | NDIR |
| Method | High temperature combustion |
| Parameters | TC, TIC, TOC, NPOC |
| Operation Mode | PC software controlled |
| Application | Liquid sample |
| Gas Requirement | Oxygen >99.995% |
| Measurement Range | 0-50000mg/L |
| Electricity | AC 220V, 50/60Hz; 110V, 50/60Hz |
| Size(W×D×H)(mm) | 500x450x480 |
| Shipping Size (W×D×H)(mm) | 780x710x610(Main device); |
| 550x260x550(Accessories) | |
| N.W./G.W. (kg) | 46kg(Main device) + 4kg(Accessories) |
| 70kg(Main device) + 8kg(Accessories) | |
| Software Introduction | |
| Standard Curve | All detailed sample and measurement info would be displayed clearly. |
| Automatically append measurements to meet RSD or SD limits. | |
| Real-time display of peak shape, easy to make comparisons. | |
| Sample Measurement | Quick setting of measurement mode and ID info. |
| Real-time monitoring of temperature and airflow, an alarm is initiated when exception occurs. | |
| Real-time display of measurement data and peak shape. | |
| Consumables Management | Available to set and check the service life and service condition of consumables. |
| Timely reminding users to replace consumables. | |
| Measurement Record | Easy to retrieve sample info, measurement data and peak shape. |
| Measurement report can be exported in Excel or PDF format. | |
| Test report under Single-sample or Multi-sample mode can be selected flexibly to meet different requirements. | |
| Software Introduction | |
| Multi-channel Rotary Valve System | Quantitative pump ensures precision injection volume. |
| Single-point dilution, quick and convenient. | |
| Wide sample measurement range, max. autoatic dilution ratio 100. | |
| High Temperature Pyrolysis Module | Pyrolysis temperature can be set as required. |
| Precision temperature control system, the highest temperature 1000°C. | |
| IC Reaction Module | Complete IC digestion by acid-adding and heating. |
| Electronic cooling system, filter and membrane dryer effectively remove water vapor | |
| NDIR Detector | Imported light source, detector and special gas chamber. |
| Stable results, lower noise, wider detection range and faster speed. | |
| A constant temperature environment ensures high stability and accuracy. | |
What is Total Organic Carbon (TOC)?
TOC is the term used to describe the carbon content of organic matter in water. Organic matter covers a wide range of substances, including but not limited to sucrose, plastic particles, and organic waste.
Organic matter may be present in water.
Organic matter may be the product of the leaching or shedding of various constituents within the purification or distribution system.
Organic matter may be a product of biofilm (bacteria) formation in the water system.
How is TOC measured?
The TOC analyzer supports both online and offline measurements. Offline measurements (laboratory methods) are typically used for high concentrations (>1 ppm). Online measurements are typically used for sub-ppm (<1000 ppb) detection and have a faster response time than laboratory methods.
Why use TOC measurements?
TOC measurement is used to monitor the quality and equipment efficiency of many water purification processes.
Where is TOC measured?
Membrane efficiency is monitored after reverse osmosis
After deionization, the resin life and efficiency are monitored, and the shedding of new resin is monitored.
TOC Monitors UV lamp efficiency after destroying UV lamps.
Monitor boiler feedwater to prevent damage to turbines and other equipment.
