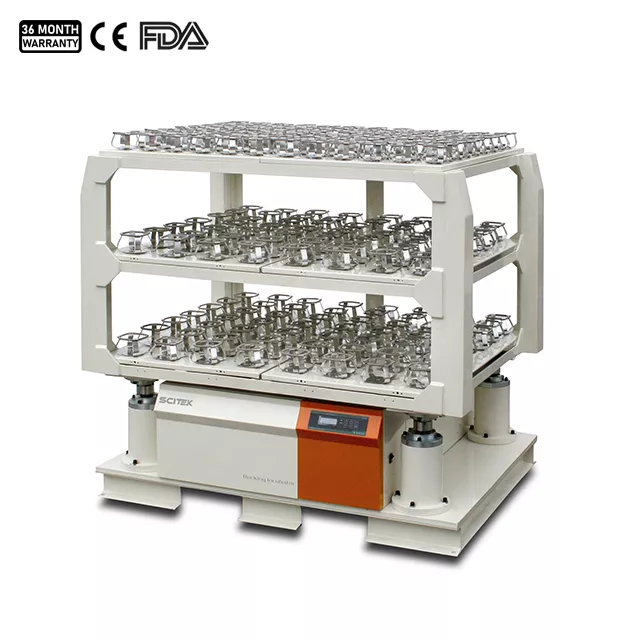

Three-layer Shaker

Elevate your shaking experiments with Scitek Three-layer Shaker. Now the affordable double-layer shaker for sale at cost price.

Model : SK-T3432
Circulation Mode : Natural convection
Oscillation Mode : Gyratory
Drive Mode : Balance drive by Multi-sizeal
Sizes(W×D×H)(mm) : 1590×1120×1310

Share the product

Category: Shaker

Details

The three-layer shaker is suitable for centralised temperature control and cluster oscillation in specific temperature controlled chambers. It not only provides the highest level of oscillation efficiency for mass production operations and biopharmaceutical research applications for pilot testing and large-volume strain screening, but also is highly economical and practical.

Three-layer Shaker Features:

PID microprocessor control supports the setting of different speeds and time, easy to operate.
Advanced finishing technology to ensure the stability and reliability of mechanical operation.
Unique single-axis drive mechanism, silent operation, durable.
Motor overheating, temperature out of control automatic power-off protection device.
Automatic memory of the last set speed, slowly accelerate to the last running speed after switching on the machine.
The cabinet is made of high quality material with long service life.

Three-layer Shaker Specifications:

Model	SK-T3432
Control Mode	P. I. D (Microcomputer scans the micro-processing chip)
Erlenmeyer Flask : Max number of rocking plates in single configuration	250ml: 450
	500ml: 324
	1000ml: 168
Display Mode	LCD (Large liquid crystal screen)
Circulation Mode	Natural convection
Oscillation Mode	Gyratory
Drive Mode	Balance drive by Multi-sizeal
Ambient Temperature Requirement (℃)	15-35
Curve Programming Settings	Programming settings of repetition, steps and eight-section curves
Safety Functions	Automatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage
Additional Functions	Monitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or over-current protector
Speed Range (r/min)	30-300
Speed Accuracy (r/min)	±1
Amplitude of Rocking Plate (mm)	50
Timing Range (min)	0-999.59
Size of Rocking Plate (mm)	1080×680
Number of Rocking Plates	6
Power (kW)	1.1
Power Supply	AC 200-240V 50-60Hz
Material of Outer Box	High-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets
Sizes (W×D×H)(mm)	1590×1120×1310
Shipping Size (W×D×H)(mm)	1720×1230×1520
N.W./G.W. (kg)	800/913

Applications of Three-layer Shaker:

The three-layer shaker is used in laboratories for simultaneous shaking or mixing of multiple samples. It finds applications in cell culture, microbiology, biochemistry, pharmaceutical research, and environmental analysis.
