Thermostatic Water Bath

This thermostatic water bath is essential for university laboratories or research organisations.

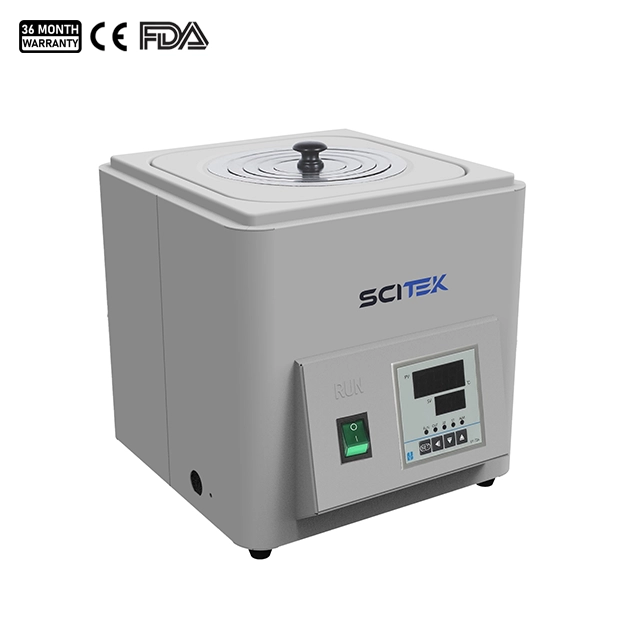

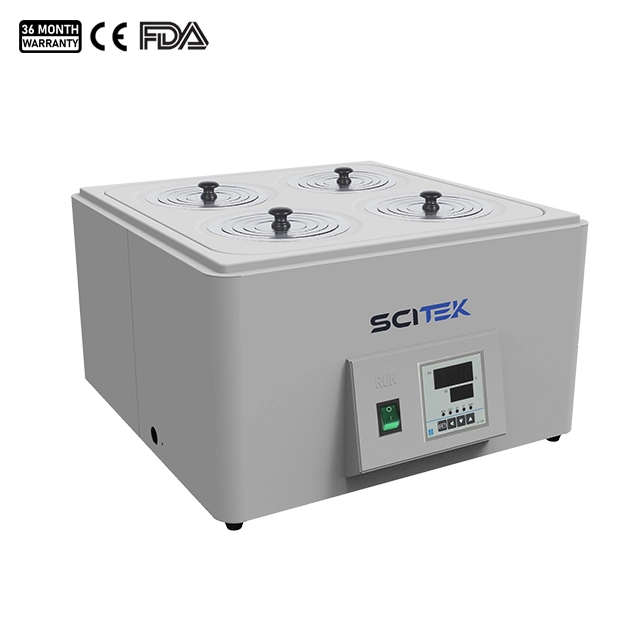

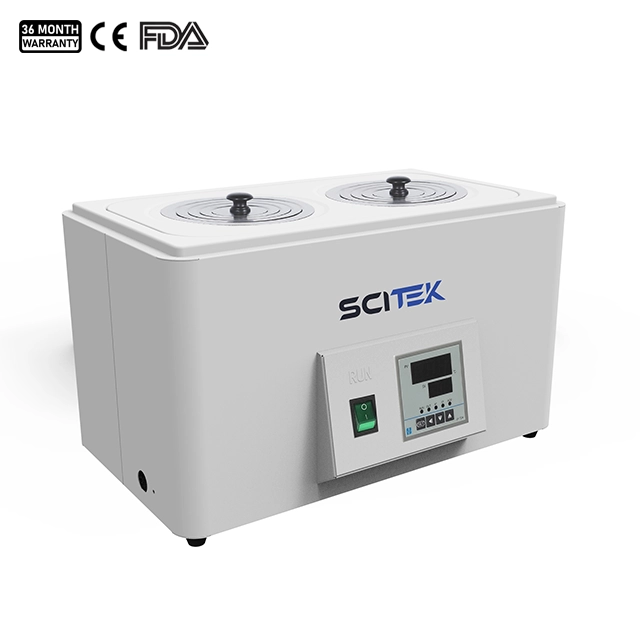

Model : WB-1L1H; WB-1L2H; WB-2L4H;
Classification Specifications : 1 hole; 1 row & 2 holes; 2 rows & 4 holes
Heating Mode : Nature water convection heat transfer
Function Temp. Range : RT+5～100℃
Sizes (W×D×H)(mm) : 170×154×210; 318×168×210; 350×318×210;

Share the product

With an immersion circulator and an open reservoir, Scitek’s thermostatic water bath maintains a steady temperature. Temperature-sensitive samples can be heated with precision thanks to the tiny temperature inaccuracy and configurable temperature range of RT+5 to 100°C.

The thermostatic water bath’s main component is made of stainless steel. Because the reservoir is continuous, there is no chance of leakage or rust. The surface has an easy-to-clean, basic design.

Thermostatic Water Bath Feature:

The roof cover and interior container are made of stainless steel.
PID programming, a digital tube display, timing capabilities, and over-temperature protection are all features of this intelligent temperature controller.
Include a simple one-button electric drain switch for easy draining.
Thermostatic water baths with a single hole do not have a drain feature.
Turn off the power when there is a water deficit to guarantee the product operates safely.
The control unit quickly reaches the desired temperature and maintains a constant temperature to prevent overheating of the sample

Thermostatic Water Bath Specification:

Model		WB-1L1H	WB-1L2H	WB-2L4H
Classification Specifications		1 hole	1 row & 2 holes	2 rows & 4 holes
Heating Mode		Nature water convection heat transfer
Function	Temp. Range	RT+5～100℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±0.5℃
	Temp. Uniformity	±1.0℃
Structure	Inner Chamber	Stainless steel
	Outer Shell	Cold-rolled steel plate, resistance to chemical reagents coating on the surface
	Heater	Stainless steel heating tube
	Power Rating	0.4kW	0.5kW	1.0kW
Controller	Temp. Control Mode	PID
	Temp. Setting Mode	Touch button setting
	Temp. Display Mode	Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row
	Timer	0～9999min (with timing wait function)
	Operation Function	Fi×ed temperature operation, timing function, auto stop.
	Program Mode	Optional
	Additional Function	Deviation Correction, menu key locked,power failure back-up, power-off memory
	Sensor	NTC
Safety Device		Over temperature alarm
Specification	Volume	3.4L	6.1L	14.6L
	Load Per Rack	5kg
	Shelf Number	1
	Power Supply	AC220/110V, 50/60Hz
	Chamber Size (W×D×H)(mm)	150×135×150	300×135×150	325×300×150
	Sizes (W×D×H)(mm)	170×154×210	318×168×210	350×318×210
	Shipping Size (W×D×H)(mm)	240×230×280	390×240×280	420×390×280
	N.W./G.W. (kg)	3.3/6	4.5/7	6/9
