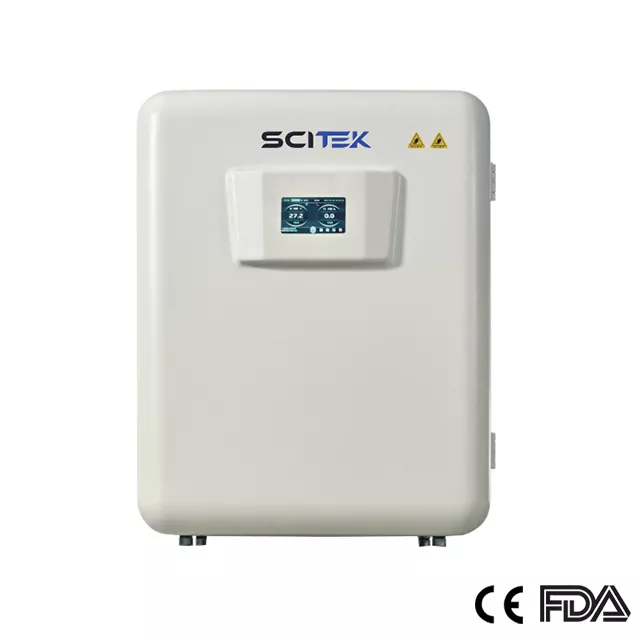

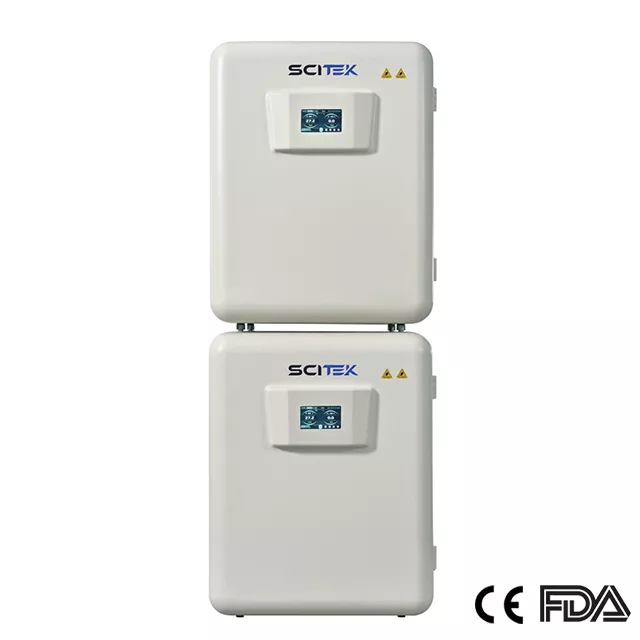

Stackable CO2 incubators are specifically designed to provide performance reliability, ease of operation and are suitable for applications ranging from basic research to demanding, cutting-edge applications.
The ICB-SC series stackable CO2 incubators represent the pinnacle of biological culture equipment. They are ideal for a wide range of applications, including animal cell culture, germ cell culture, and anaerobic cell culture. Additionally, they are well-suited for culturing and incubating all types of microorganisms, as well as seed cultivation and tissue culture experiments.
| Model | ICB-160SC | ICB-270SC | |
| Temperature | Mode | Six-sided direct heating air jacket type | |
| Control | Temperature Range | Ambient temperature: +5°C-60°C | |
| Temperature Stability | ±0.5°C (at 37°C) | ||
| Temperature Accuracy | ±0.1℃ | ||
| Temperature Recovery Time | ≤ ±10mins | ||
| Ambient Temperature Range | 10℃-30℃ | ||
| CO2 Concentration | CO2 Control Scope | 0.1-20% | |
| Control | CO2 Control Accuracy | 0.10% | |
| CO2 Stability | ±0.1℃ | ||
| CO2 Accuracy | ±0.3% | ||
| CO2 Sensor | Germany imported infrared ray (IR) sensor | ||
| Sterilization Mode | 90°C damp-heat (optional 140°C dry-heat sterilization) | ||
| Concentration Recovery Time | ≤5Mins, door opened for 30S | ||
| Humidity Control | Mode | Natural evaporation (injecting sterile distilled water into the bottom tank of the cavity) | |
| Humidity Range | 45%-94% | ||
| Door Opening Recovery | 15mins | ||
| Technical | Capacity | 160L | 270L |
| Specification | Number of Shelves | 3/7 | 4/8 |
| Shelf Size(mm) | 466×426 | 520×524 | |
| Heating Power | 800W | 1000w | |
| Power Supply | 220V, 50/60Hz; 110V, 60Hz | ||
| Maximum Stacking | 2 sets | 2 sets | |
| Internal Size (WxDxH)(mm) | 492x515x630 | 622x560x782 | |
| External Sizes (W×D×H)(mm) | 620x800x810 | 750x730x950 | |
| Shipping Size (W×D×H)(mm) | 920x730x990 | 920x870x1150 | |
| N.W./G.W. (kg) | 72/110 | 99/160 | |
| Technical Features | Display Mode | 5-inch true color touch screen | |
| Control Mode | P.I.D microcomputer environment scanning microprocessor chip control | ||
| Placement Position | On/off the experimental table, landing or stacking | ||
| Inner Glass Door | Standard single inner door (inner door heating) | ||
| Ambient Temperature | 10℃-30℃ | ||
| Temperature Probe | Separate | ||
| Cleanliness | Moist-heat sterilization at 90°C | ||
| HEPA filter (optional) | |||
| The intake gas is sterilized by a 0.2um online filter | |||
| Data Export | USB interface (optional) | ||
| Optional Accessories | Cavity, liquid tray, shelf | ||
| Relative Humidity | <95% | ||
| Remote Control | Extensible computer remote wireless monitoring and mobile APP monitoring (optional) | ||
| Luxury Style | Patented modeling with extremely aesthetic design, mold design and manufacturing technology, integrating appearance and practicality | ||
Ensuring the safe and secure transportation of the CO2 incubator is paramount. The packing process is meticulously designed to protect the stackable CO2 incubator from any potential damage during shipping and handling.
