Single-layer Shaker

Single-layer shaker provides a smooth, quiet orbital motion for mixing in bottles, flasks and beakers

Category: Shaker

Single-layer Shaker Features:

Single-layer shaker’s controller adopts the original single-axis balanced drive technology to ensure ultra-low noise.
Large LCD screen clearly displays setup and measurement parameters, making operation more intuitive and convenient.
The encrypted locking function of the operating parameters effectively prevents the occurrence of human error.
The operating parameter memory function simplifies the operation process and allows you to use the equipment more efficiently.
Adopting frequency conversion motor design, it not only has low vibration and low noise, but also has high efficiency, providing you with stable and reliable using experience.

Single-layer Shaker Specifications:

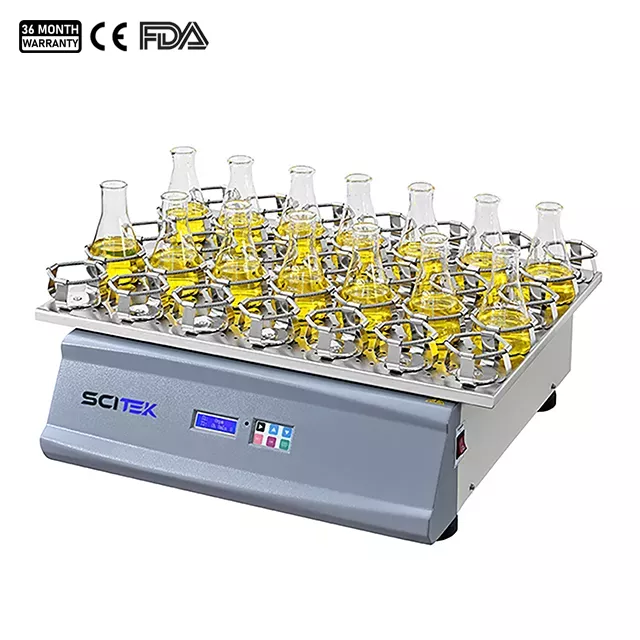

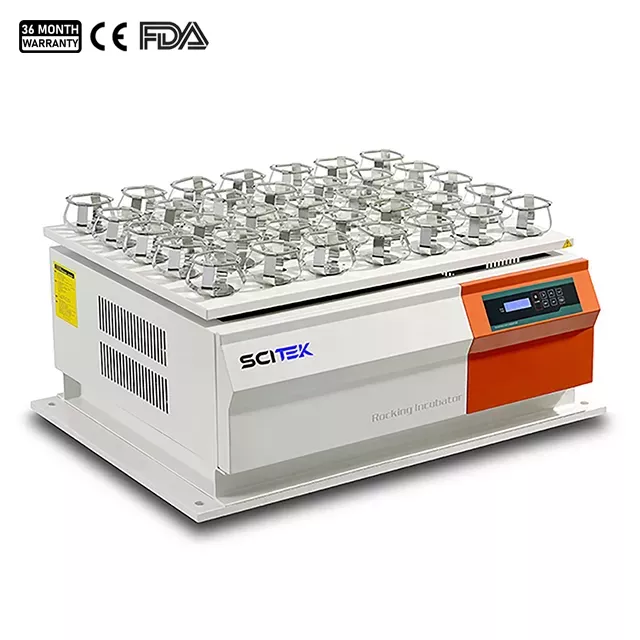

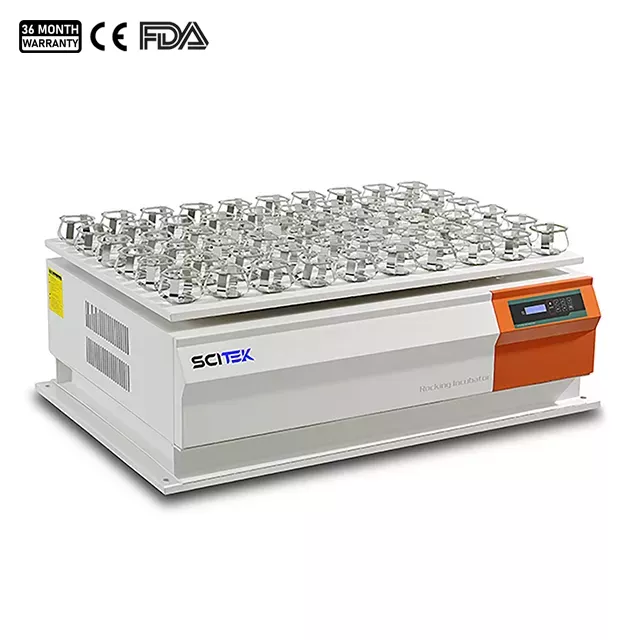

Model	SK-S300	SK-S311	SK-S322
Control Mode	P. I. D (Microcomputer scans the micro-processing chip)
Display Mode	LCD (Large liquid crystal screen)
Circulation Mode	Natural convection
Oscillation Mode	Gyratory		Gyratory
Drive Mode	Balance drive by single shaft
Ambient Temperature Requirement(℃)	15-35
Curve Programing Settings	Programing settings of repetition, steps and eight-section curves
Safety Functions	Automatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage
Additional Functions	Monitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or over-current protector
Speed Range (r/min)	30-300
Speed Accuracy (r/min)	±1
Amplitude of Rocking Plate (mm)	50
Timing Range (min)	0-999.59
Size of Rocking Plate (mm)	680×500	840×620	1108×740
Number of Rocking Plates	1
Power/w	80		150
Power Supply	AC200-240V, 50-60Hz
Material of Outer Box	High-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets
Sizes(W×D×H)(mm)	680×615×300	900×650×480	1210×795×380
Shipping Size (W×D×H)(mm)	810×760×490	1010×800×640	1320×920×590
N.W./G.W. (kg)	104/120	216/245	323/355
Specifications	The number of rocking plates in single configuration is highest	The number of rocking plates in single configuration is highest	The number of rocking plates in single configuration is highest
Erlenmeyer Flask
250ml	30	54	96
500ml	24	35	60
1000ml	15	24	40
5000ml	4	6	12

Over-temperature sound and light alarm function can automatically cut off the respective power supply when the motor is overheated, the temperature is out of control or there is over-temperature abnormality to ensure the safety of the experiment.
When the external power supply is suddenly interrupted and restored, the Single-layer shaker can automatically resume operation according to the original set procedure to ensure the continuity and stability of the experiment.
The control acceleration circuit ensures that the oscillator starts slowly and accelerates smoothly, effectively protecting the safety of experimental samples.
The key components are made of high quality cast iron to ensure the durability and stability of the equipment.
Electrostatic colour spraying cabinet and the large screen tempered glass window are not only beautiful and generous, but also easy to clean and maintain.
