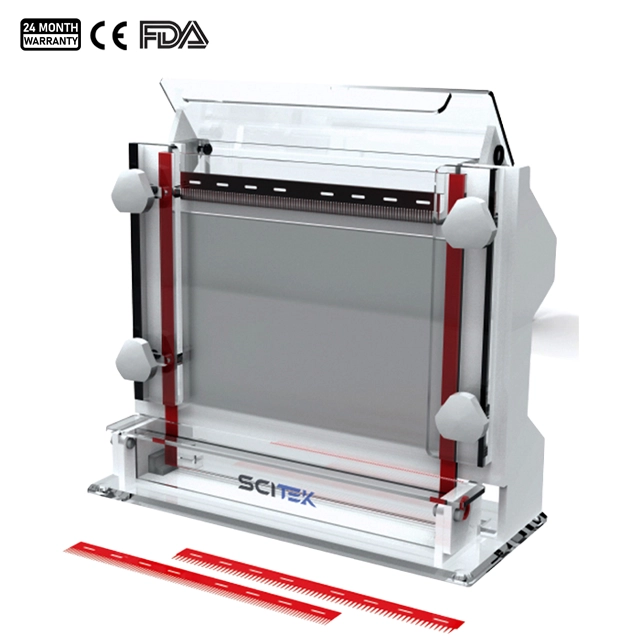

Sequencing Electrophoresis Tank

  • Model : ET-S01
  • Gel Tray (W×L)(mm) : 310×330
  • Buffer Capacity : 750ml
  • Sampling Comb : 68, 100 teeth (The gun for adding samples can be used.)
  • Sizes (W×D×H)(mm) : 415×160×380

Share the product

Our sequencing electrophoresis tank is meticulously designed to meet the rigorous demands of DNA sequencing and fragment analysis. Engineered with precision, it ensures high-resolution separation and reliable results for your most critical applications. Featuring advanced technology and user-friendly design, this tank is an indispensable tool for researchers in genomics and molecular biology.

Sequencing Electrophoresis Tank Feature:

  1. The sequencing electrophoresis tank features a large capacity, accommodating up to 96 PCR samples at once, enhancing efficiency and speed.
  2. Equipped with high-quality shark tooth combs, it ensures easy observation and prevents sample tampering.
  3. Its user-friendly design includes four sturdy knobs for simple operation, buffer-saving capabilities, and prevention of gel leakage.
  4. The sequencing electrophoresis tank tank also has an upper buffer outlet and a movable bottom groove for easy removal of residual liquid, ensuring cleanliness.
  5. Additionally, the power-off function enhances safety during experiments, providing a reliable working environment.

Sequencing Electrophoresis Tank Specifications:

Model ET-S01
Glass Tray (W×L)(mm) 350×350
Gel Tray (W×L)(mm) 310×330
Buffer Capacity 750ml
Sampling Comb 68, 100 teeth (The gun for adding samples can be used.)
Sizes (W×D×H)(mm) 415×160×380
Shipping Size (W×D×H)(mm) 620×620×820
N.W./G.W. (kg) 12/18
Standard Accessories
Name Specification Quantity
Electrophoresis Main Tank (Main Body)   1
Concave Glass Plate   2
Flat Glass Plate   2
Shark Sample Comb 100 samples 2
68 samples 2
Filler Strip   4
Wire   1
Water Pipe   1

Applications of Sequencing Electrophoresis Tank:

  1. DNA Sequencing: High-resolution separation for accurate DNA sequence determination.
  2. Fragment Analysis: Effective for analyzing DNA fragments, including microsatellites and SNP genotyping.
  3. PCR Product Analysis: Reliable separation and analysis of PCR-amplified DNA.
  4. Mutational Analysis: Detects genetic mutations through precise electrophoretic separation.
  5. RNA Sequencing: Facilitates the separation and analysis of RNA sequences for transcriptome studies.
