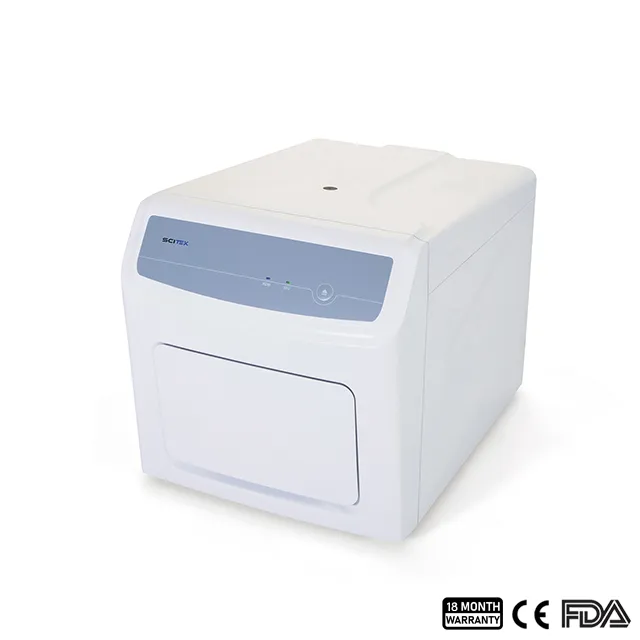

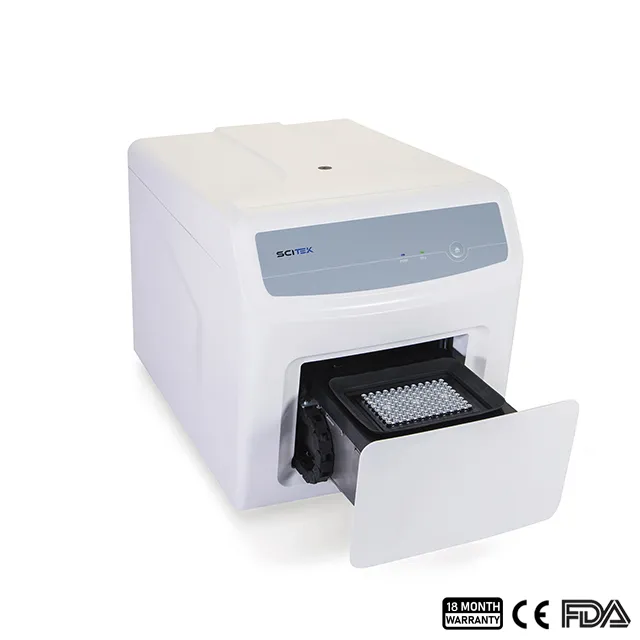

Real Time PCR System

The real time PCR systems reliability is combined with flexible configurations to meet your research needs.

Real Time PCR System Feature:

Multiplex PCR is possible with up to 6 fluorescence detection channels.
Effectively minimizes fringing effects and multi-color crosstalk without requiring ROX correction.
A novel optical scanning detection mechanism is implemented to guarantee the precision of the detected data.
To increase the effectiveness of detection, use a novel scanning technique and time-resolved signal separation technology.
Innovative edge temperature compensation method to increase temperature control precision

Real-time Fluorescence Quantitative PCR System Specification:

Model	PCR-RFQ96	PCR-RFQ96I
Sample Capacity	0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Reaction Volume	10-50 μl
Thermal Cycle Technology	Peltier
Temperature Control system
Max. Heating/Cooling Rate	6.0°C/s
Heating Temperature Range	4-100 °C
Temperature Accuracy	± 0.2°C
Temperature Uniformity	±0.2℃ @60℃, ±0.3℃ @95℃
Temperature Gradient Setting Range	30-100°C
Temperature Gradient Difference Setting range	1-36°C
Detection System
Excitation Light Source	5 monochrome high efficiency LEDs	6 monochrome high efficiency LEDs
Detection Device	PMT
Detection Mode	Time-resolved signal separating technology
Excitation/detection Wavelength Range	455-650nm	510-715nm
Fluorescent Channels	5 channels	6 channels
Supported Dye	FAM/SYBR Green, VIC/HEX ROX, Cy5, Cy3 (only for PCR-RFQ96I)
Sensitivity	Single copy gene
Resolution	1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic Range	10 orders of magnitude copies
Sizes (W×D×H)(mm)	720x560x620
Shipping Size(W×D×H)(mm)	980x680x780
N.W./G.W. (kg)	36/50
