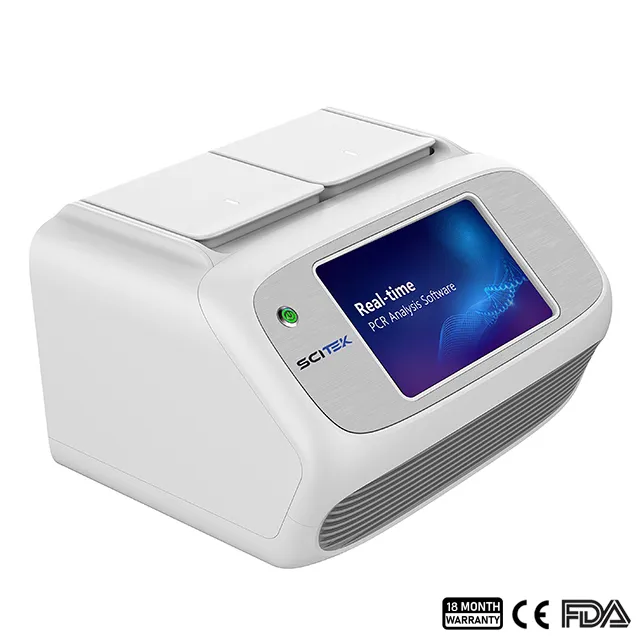

Real-time Fluorescence Quantitative PCR Detection System

This real-time PCR system is commonly used for rapid and accurate quantification of DNA or RNA samples.

Real-time Fluorescence Quantitative PCR Detection System Feature:

Temperature control accuracy of ±0.1°C ensures temperature stability and experimental accuracy of the reaction system.
The temperature uniformity reaches ±0.25℃. The sample is heated uniformly to ensure the reliability of the experiment.
Adjustable temperature range of the hot cover, adapting to different experimental needs.
High-sensitivity photoelectric sensor, detection range of 1-10^10, applicable to a variety of concentrations.
Supports module and tube temperature control modes, providing flexible operation options.
It detects single-copy genes and is suitable for a variety of genetic testing and analysis scenarios.
Provides software analysis functions such as quantitative/qualitative melting curves and genotyping.
7-inch color touch screen, support WiFi or USB 2.0 connection, convenient operation.
Equipped with 20G flash memory, capable of saving 40,000 sets of experimental data.
It supports direct report printing and an optional USB thermal printer for easy record sharing.

Real-time Fluorescence Quantitative PCR Detection System Specification:

Model	PCR-RFQ161	PCR-RFQ164
Sample Capacity	16×0.2ml (2×8well, dual block)
Consumable	Clear 0.2 ml PCR tube /8-tube strips
Reaction Volume	15-100μL
Temperature Control Technology	Marlow customized peltier allow 1000000 cycles
Temperature Range	0-100℃ (Resolution: 0.1℃)
MAX. Ramp Rate	6℃/s	8℃/s
Temperature Fluctuation	±0.1℃
Uniformity	±0.25℃
Accuracy	±0.25℃
Hot Lid Temperature	30-110℃ (Adjustable, default 105℃)
Temperature Control	Block/Tube
Excitation Wavelength	300-800nm
Emission Wavelength	500-800nm
Factory Calibrated Dyes	F1: FAM/SYBR Green I
	F2: HEX/VIC/JOE/TET
	F3: ROX
	F4: CY5
Excitation	Long life LED
Detection	High sensitivity photoelectric detector
Dynamic Range	1-1010 Copies
Sensitivity	1 copy
Feature Function	Quantitative/Qualitative analysis, Melting curve, Genotyping
Date Export Formats	Excel, csv, txt
Printing	Report can be printed (optional USB thermal printer)
Control Method	7 inch color TFT touch screen, Can be connected to computer control
Communication	USB2.0
Power Supply	AC220V, 50Hz
Power	DC15V, 255W
Size(W×D×H)(mm)	300×267×198
Shipping Size(W×D×H)(mm)	500×420×350
N.W./G.W. (kg)	8.5/13
