Real-time Fluorescence Quantitative PCR System

This real-time PCR system is commonly used for gene expression analysis, pathogen detection and genetic testing.

Real-time Fluorescence Quantitative PCR System Feature:

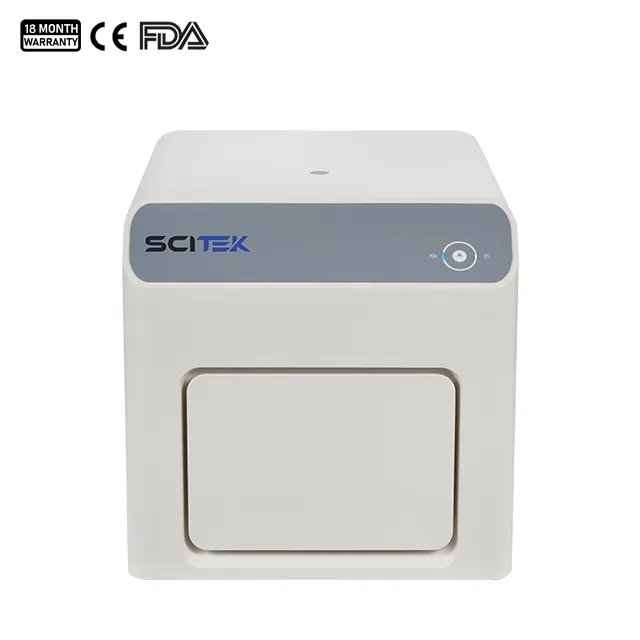

A 96-well real-time quantitative PCR system is the PCR-RFQ964/165. The real-time qPCR system has evolved in detection sensitivity, multi-color crosstalk correction, temperature uniformity, and accuracy thanks to its breakthrough signal capture and spectral separation technologies combined with unique temperature management technology.
Multiplex PCR detection is made simple by the real-time fluorescence PCR system’s 4- or 5-channel setups and compatibility with dye- and probe-based PCR reagents. Standard analysis techniques like absolute quantification, genotyping, HRM, MMCA, and gene expression analysis are supported by the real-time qPCR system.

Real-time Fluorescence Quantitative PCR System Specification:

Model	PCR-RFQ964	PCR-RFQ165
Type	Real-Time QPCR	Real-Time QPCR
Sample Capacity	96	96
Compatible Consumables	0.1ml Low Profile, PCR tube & 8-Strip with Real Time Cap, transparent tube, 96-well plate	0.1ml Low Profile, PCR tube & 8-Strip with Real Time Cap, transparent tube, 96-well plate
Maximum Ramping Rate	6.0° C/s	6.0° C/s
Temperature Range	4-100 °C	4-100 °C
Temperature Accuracy	± 0.2°C	± 0.2°C
Temperature Uniformity	± 0.2°C@60, ± 0.3°C@95	± 0.2°C@60, ± 0.3°C@95
Excitation Light	Single LED
Detector	PMT
Detection Method	Time-resolved real-time scanning
Excitation/Emission Wavelengths	455-650nm/510-750nm
Fluorescence Channels (MAX)	4	5
Supported Dyes	FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ (Optional- Cy5.5 or Cy3)
Data Connection	USB, bluetooth
Operation Mode	PC	PC
Power	220V, 50/60Hz	220V, 50/60Hz
G.W(KGS)	34
Size(LxWxH)(mm)	485x365x370	300x260x110
Gross Weight	30Kg	5.7Kg
