This forced air drying ovens is ideal for research and quality assurance applications.
This horizontal forced air drying oven is designed for efficient and precise drying applications. It utilises advanced forced air circulation to ensure uniform temperature distribution and rapid heat recovery, making it ideal for a wide range of laboratory and industrial processes.
| Model | FDO-20A | FDO-50A | FDO-100A | FDO-200A | FDO-625A | |
| Capacity (L) | 20 | 50 | 100 | 200 | 640 | |
| Circulation Mode | Forced convection | |||||
| Size(WxDxH)(mm) | Internal | 300x300x270 | 420x350x350 | 550x350x520 | 600x550x570 | 800x800x1000 |
| External | 600x470x420 | 710x520x520 | 840x530x730 | 890x730x780 | 1090x980x1180 | |
| Temperature | Range (℃) | RT+10~250 | ||||
| Fluctuation (℃) | ±0.5 | |||||
| Resolution (℃) | 0.1 | |||||
| Uniformity (℃) | ±2.5% | |||||
| Sensor | PT100 | |||||
| Controller | PID | |||||
| Display | High efinition LCD | |||||
| Timer | 1~9999min | |||||
| Material | Internal | High-quality brushed stainless steel | ||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||
| Shelves(Standard / Max ) | 2 | |||||
| Test Hole (Optional) | Φ25, 50, 80mm | |||||
| Safety Device | Leakage protector, over temperaure visible & audible alarm | |||||
| Electricity | Voltage/ Frequency |
AC 220/110V, 50/60Hz | AC 380V 50Hz | |||
| Consumption (W) | 500 | 750 | 1500 | 2000 | 4000 | |
| N.W./G.W. (kg) | 30/45 | 40/50 | 55/80 | 75/100 | 155/175 | |
| Shipping Size (WxDxH)(mm) | 710x600x550 | 810x640x600 | 950x680x880 | 1020x890x930 | 1200x1280x1120 | |
| Optional | Digital independent temperature limiter, multi-segment programable control (Optional USB, RS485/232 and printer), spare shelf | |||||

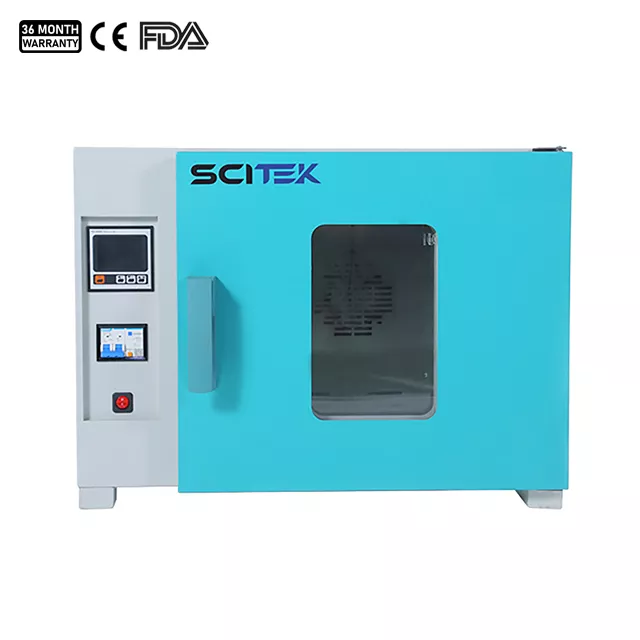

The front of the horizontal forced air drying oven has a simple and elegant design with a high precision LCD display for real time monitoring and parameter setting. A large viewing window allows the user to view the interior without opening the door.
The backside showcases its sturdy cold rolled steel shell that is rust resistant and durable. Vents are provided to keep undesirable air out of the work area.
The instruction manual is detailed and contains guidelines for the installation, operation, maintenance and troubleshooting of the equipment.
The internal shelves are made of stainless steel, which is corrosion-resistant and easy to clean. They are solidly constructed to withstand heavy samples and are suitable for a wide range of experimental and drying needs.
What is a drying oven in a laboratory?
A drying oven in a laboratory is a piece of equipment designed to remove moisture from samples or materials by subjecting them to controlled heat.
What is the basic principle of drying oven?
The basic principle of a drying oven is to use controlled heat to remove moisture from samples or materials placed inside the oven. By increasing the temperature within the oven chamber, the water molecules in the samples gain energy, causing them to evaporate and escape into the surrounding air. This process continues until the moisture content of the samples reaches the desired level, effectively drying them. The oven’s ventilation system helps to remove the moist air and maintain a dry environment within the chamber.
