PP Fume Hood

Functional and energy-efficient PP fume hoods provide an environmentally friendly solution for the laboratory environment and operators.

  • Model : FMH-1000DP; FMH-1200DP; FMH-1500DP; FMH-1800DP
  • Work Surface Height : 820mm
  • Max Opening : 740mm
  • Air Velocity : 0.3~0.8m/s, speed adjustable

Share the product

Category:

PP fume hood is suitable for the experiment of strong acid, strong alkali, strong corrosion and volatility. It can effectively protect the operator from inhaling toxic gases and protect the operator and sample safety. And dramatically reduces the risk of fire and explosion. The environment can also be protected by installing appropriate filters.

PP Fume Hood Features:

  1. The mainframe is constructed from integrally welded PP (polypropylene) material, offering exceptional resistance to strong acids, alkalis, and corrosion.
  2. The PP fume hood is equipped with a microprocessor control system and LCD display for precise control and monitoring.

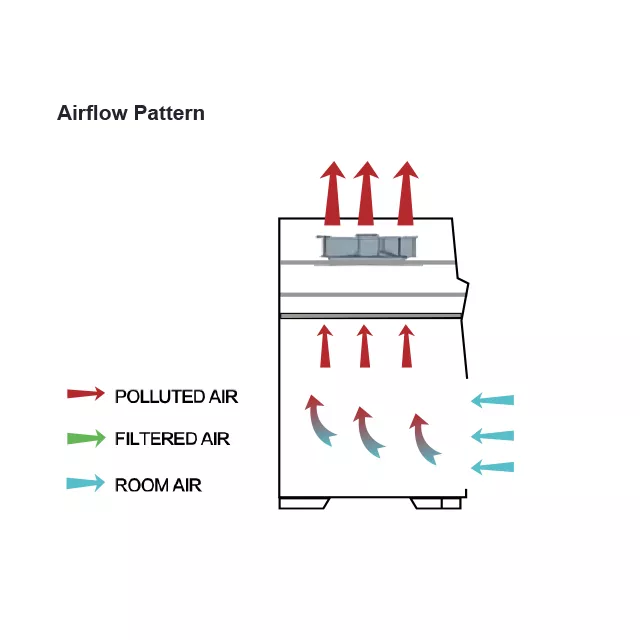

  3. Features a top-shield suction design and a deflector made of homogeneous PP material, providing robust resistance to acids and alkalis.
  4. Ensures optimal exhaust gas capture performance with no airflow dead angles.
  5. The operating surface includes water-retaining and anti-overflow treatments for enhanced safety.

PP Fume Hood Specifications:

Model FMH-1000DP FMH-1200DP FMH-1500DP FMH-1800DP
External Size (WxDxH)(mm) 1047x800x2450 1247x800x2450 1547x800x2450 1847x800x2450
Internal Size (WxDxH)(mm) 787x560x700 987x560x700 1287x560x700 1587x560x700
Max.Opening 740mm
Work Surface Height 820mm
Control System Display Microprocessor controller with LCD display, display the operating status of each function
Airflow System Airflow Velocity 0.3~0.8 m/s, speed adjustable
Cabinet Construction


Main Body Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.
Work Surface Chemical resistant phenolic resin
Front Window Manual, 5mm toughened glass, height adjustable.Resistant to acid and alkali,
Electrical System




LED Lamp 12W×2 12W×2 22W×2 18W×2
Blower Built-in PP centrifugal blower(2 blowers for FMH-1800DP only); Speed adjustable
Consumption

400W 400W 500W 800W
Not include socket loading power consumption
Power Supply AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination ≥900Lux
Sound Emission ≤68dB(A)
Standard Accessory 1.Base Cabinet;
2.LED Lamp;
3.Waterproof Socket×2;
4.Water Tap (PP);
5.Gas Tap (PP);
6.Gas & Water Remote Control Valve;
7.Water Sink;
8.Work Table: Chemical resistant phenolic resin;
9.PP Centrifugal Blower*1(2 for FMH-1800DP only);
10.10m PVC aluminum foil composite exhaust duct, Diameter: 250mm; (2 pcs of 10m exhaust duct for FMH -1800DP only,duct is retractable and can be cut freely.) Pipe strap x2 (4 pcs for FMH-1800DP only);
Optional Accessory 1. PP Work Table, epoxy resin board, ceramic board or Solid core physical and chemical board;
2. Active Carbon Filter;
3. External PP centrifugal blower
Gross Weight (kg)

Main Body 137 155 180 206
Base Cabinet 89 99 114 140
Shipping Size(W×D×H) (mm) Main Body 1188x938x1612 1388x938x1612 1688x938x1612 1988x938x1612
Base Cabinet 1188x888x1000 1388x888x1000 1688x888x1000 1988x888x1000
Shipping Volume (m3) 2.9 3.4 4.1 4.8

Details of PP Fume Hood:

PP Fume Hood

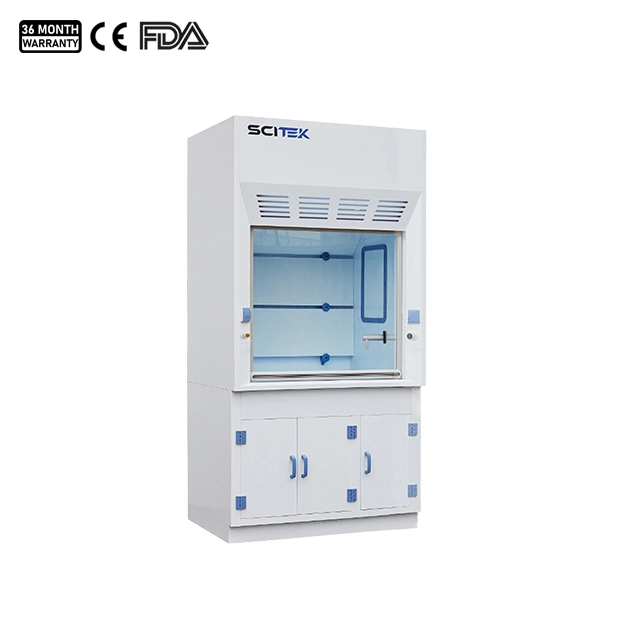

The body of the PP fume hood is made of Porcelain white PP to ensure resistance to strong acids, alkalis and corrosive properties. The overall design is simple and beautiful.

PP Fume Hood

PP Fume Hood

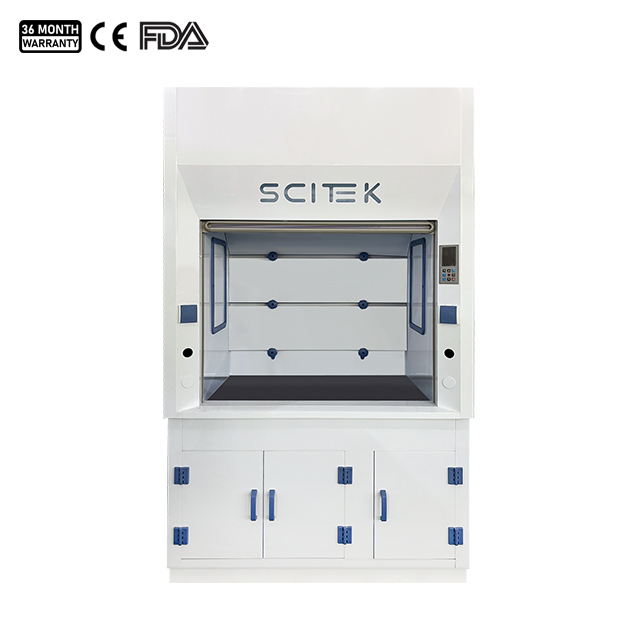

FMH-1000DP PP Fume Hood

PP Fume Hood

PP Fume Hood Stand

Base with storage cabinets for lab supplies

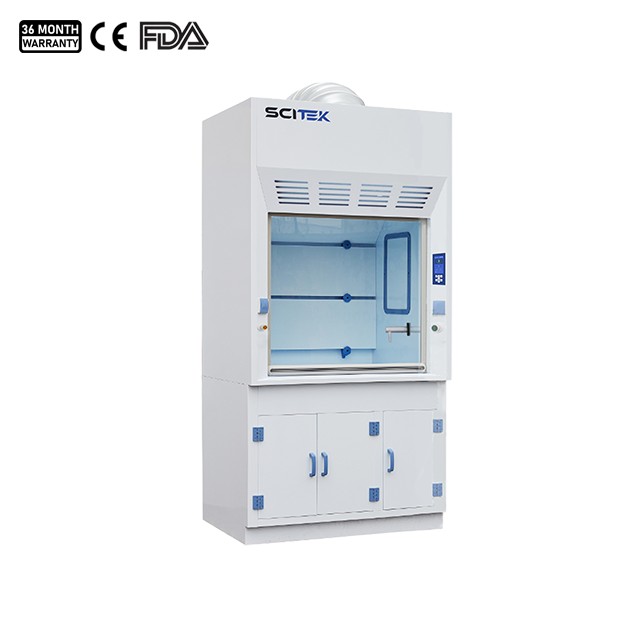

PP Fume Hood

The connection port of the exhaust duct allows the exhaust gas to be discharged through the laboratory exhaust system in a timely manner. The supporting legs and frame at the bottom are solidly designed for good stability of the equipment.

Packaging and shipping:

During transport, our PP fume hood is meticulously protected and securely installed to ensure its safety. It is surrounded by dense packing material to prevent any collision or vibration damage during transit.

We offer a variety of shipping options including sea freight, air freight, land freight, and express service. Additionally, we accept a wide range of trade terms including EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, and DDP to accommodate your specific shipping needs.

WHY SCITEK

  1. 36 Months Limited Warranty
  2. Help meet ISO, FDA, CE quality assurance guidelines
  3. 1-2 Days Handling and 7-30 Days Shipping

FAQ

What is the best material for a fume hood?

Polypropylene. Polypropylene is undoubtedly the material of choice when constructing modern fume cupboards.

Advantages of Polypropylene Fume Hoods

  1. Polypropylene has excellent chemical resistance to most acids, bases, solvents and chemical reagents.
  2. Polypropylene has high mechanical strength and impact resistance.
  3. Polypropylene can usually withstand temperatures of around 120°C.
  4. Polypropylene fume hood has a smooth surface that does not easily adhere to dirt and chemical residues, making it easy to clean.
