- Model : PPB-06; PPB-12
- Number of Layers : 6 layers; 12 layers
- Maximum Number of Blood Bags Stored : 12 bags; 48 bags
- Temperature Control Range : 22±2℃
- Temperature Resolution : 0.1℃
- Size(W×D×H)(mm) : 540x500x1090; 640x560x1250

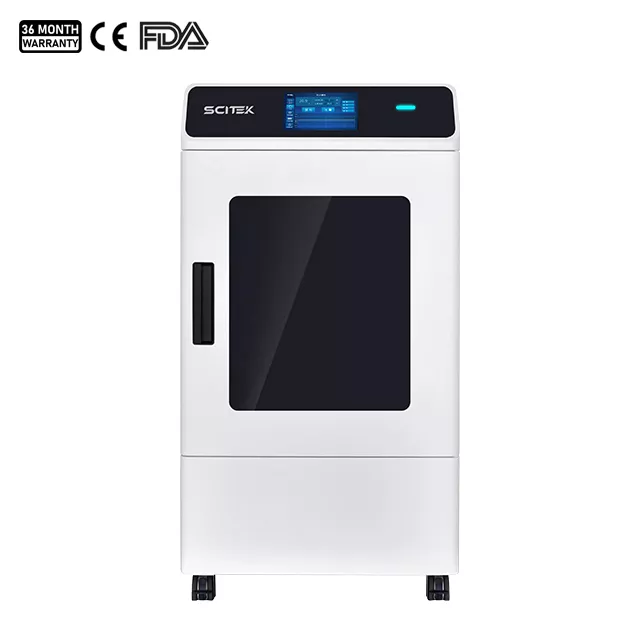

Platelet Preservation Box, Touch Screen
The platelet preservation box is ideal for blood centers, blood banks, and hospital transfusion departments. It provides continuous reciprocating horizontal oscillation with a 50mm range and a frequency of 60 times per minute, ensuring the long-term stable storage of platelets.
Platelet Preservation Box Feature:
- The dual-core components of the platelet preservation box.
- An 8-inch IPS high-definition touch screen suitable for medical use.
- Temperature tracking in real time, creation of a temperature curve, logging and storing the complete procedure, and support for wireless data export.
- Constant temperature management that is automatic.
- When the door is opened, the oscillation ceases and the door light immediately turns on.
- A platelet preservation box with a UV disinfection feature.
- Includes alarms for high/low temperatures, stoppage, and power outages.
Platelet Preservation Box Specification:
| Model | PPB-06 | PPB-12 |
| Number of Layers | 6 layers | 12 layers |
| Maximum Number of Blood Bags Stored | 12 bags | 48 bags |
| Temperature Control Range | 22±2℃ | |
| Temperature Resolution | 0.1℃ | |
| Oscillation Frequency | 60 cycles/min | |
| Oscillation Amplitude | 50±5mm | |
| Oscillation Mode | Continuously reciprocates left and right, oscillating horizontally | |
| Data Recording and Storage | Storage capacity of 64GB, capable of recording and storing over 32,000 sets of data records | |
| Consumption | 1000W | |
| Power Supply | AC220/110V, 50/60Hz | |
| Size(W×D×H)(mm) | 540x500x1090 | 640x560x1250 |
| Shipping Size(W×D×H)(mm) | 600x560x1130 | 700x620x1300 |
| N.W./G.W. (kg) | 75/98 | 90/108 |
Optional Features:
- Internet of things (IoT) functionality
- Reserved communication port, can be connected to the hospital’s HIS system
- Optional cloud alarm system
- Optional scanner, can scan and input data from blood plasma bag barcodes
FAQ:
Does the Platelet Preservation Box have a shaking feature?
Yes, continuous shaking prevents platelet aggregation.
How many platelet units can be stored?
Depending on the model, the common capacity is 12-48 bags.
What happens if the power supply is interrupted?
Equipped with battery backup or alarm system, some support UPS.
Is there an alarm system?
Yes, there are alarms for abnormal temperature, door not closed, power supply failure, etc.
Does it have temperature recording function?
Yes, most of the devices support automatic recording and exporting data.
