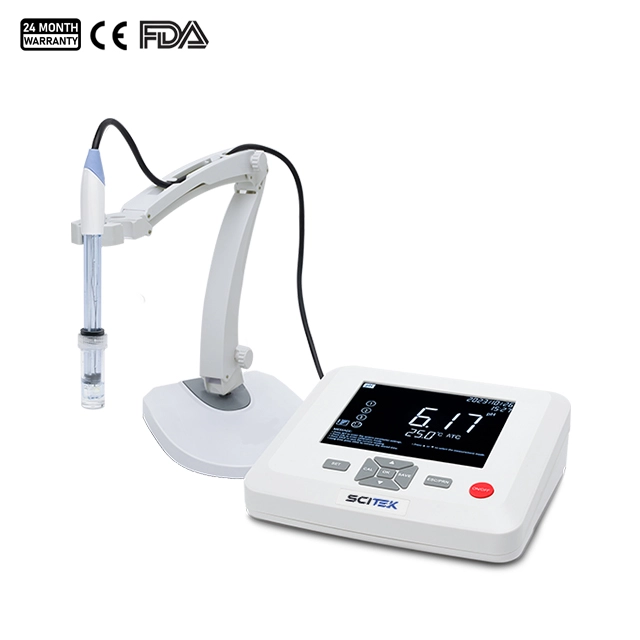

Benchtop pH/Conductivity/Dissolved Oxygen Meter, Automatic Calibration

The DO-PCB100 is an easy-to-use benchtop meter designed to easily measure pH, Cond., DO and temperature.

Benchtop pH/Conductivity/Dissolved Oxygen Meter Feature:

High-quality LCD display panel.
Featuring an integrated microprocessor chip, data storage, parameter setup, automated temperature compensation, and calibration.
Stable reading display, automatic calibration, self-diagnosis, and automatic recognition of standard buffer solutions.
Cal points: conductivity: 1 point; pH: 1-3 points. DO: Zero oxygen calibration or 100% oxygen.
An ATC pH probe, a plastic ATC Cond electrode, a polarographic type DO probe, and three replacement sensor covers are included with every package.
IP54 spill- and dust-resistant.

Benchtop pH/Conductivity/Dissolved Oxygen Meter Specification:

Model		DO-PCB100
pH	Range	(-2.00-20.00)pH
	Resolution	0.01/0.1 pH
	Accuracy	±0.01 pH ±1digit
Cond.	Range	0~200.0mS/cm, auto divided by range of:
		0~19.999μS/cm
		20.0~199.9μS/cm
		200~1999μS/cm
		2.00~19.99mS/cm 20.00~199.9mS/cm
		TDS: 0 -100.0g/L
		Resistivity: 5.00Ω·cm-100.0MΩ·cm, Salinity: 0-100.0 ppt
	Resolution	0.001
	Accuracy	±1.0 % FS±1digit
DO	Range	0-20.00 mg/L (ppm), 0-200.0 %
	Accuracy/Resolution	± 0.30 mg/L; 0.01 or 0.1 mg/L
	ATC Range	(0 – 50)℃ automatically
	Salinity Compensation	0~45 ppt manual
	Barometric Compensation	0~200 kPa automatically
Temperature	Range	0-100°C
Temperature	Resolution/Accuracy	0.1℃; ±0.2℃
Data Storage		450groups
Data Output		1. USB to Flash Disk
Data Output		2. Wireless connection to printer (the printer is optional)
Power Supply		DC12V
Packing Including		1. DO-PCB100 Meter
		2. 201T ATC pH probe
		3. pH buffer solution: pH4.00/7.00/10.01, 50mL, one for each
		4. CON201T Plastic ATC Cond probe, K=1.0
		5. Standard Cond solution: 50mL: 84μS/1413μS/12.88mS/cm, one for each;
		6. DO01-2M Polarographic DO probe, cable length: 2m
		7. DOS-01 Membrane refill solution: 30mL,1pc
		8. DOSC Sensor caps: 3pcs/group, 1pkg
		9. F01 Flexible probe Holder: 1pc
		10. A01 Power adaptor:1pc
Shipping Size (WxDxH)(mm)		430x600x130
N.W. / G.W. (kg)		2.2 / 3
