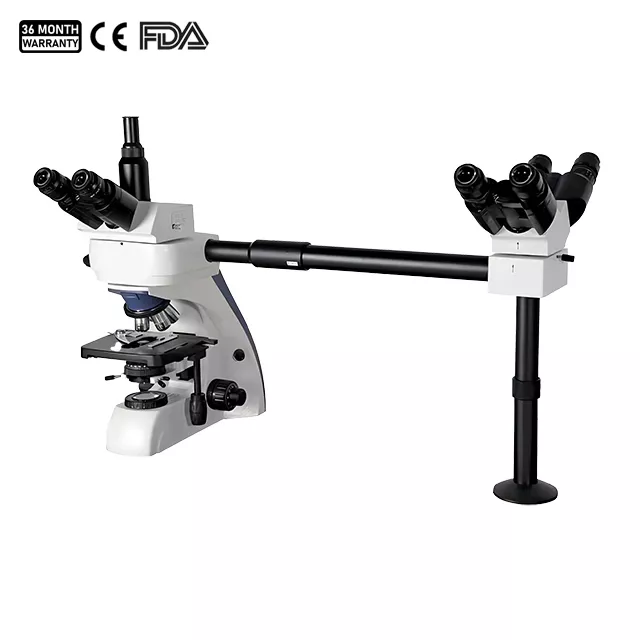

Multi-view Microscope, Trinocular

The multi-view microscope has been developed specifically for educational purposes with a major focus on ergonomics and today’s quality standards.

Multi-view Microscope Feature:

Supports multiple users with two types of view heads, allowing simultaneous observations.
The heads can rotate 360°, offering flexible observation angles for user comfort.
Delivers clear and accurate results with advanced optical performance.
Captures sample details easily with a broad viewing area.
Includes 4X, 10X, 40X, 100X objectives for varied magnification needs.
Ensures clear observation with accurate focusing.
Provides a large, stable platform for precise sample movement.
Green LED with adjustable brightness helps locate the observation area accurately.

Multi-view Microscope Specification:

Model	MSC-MV503T
View Head	Siedentopf trinocular head, Inclined at 30°, 360° Ratatable, Interpupilary distance 50-75mm, Three levels of light splitting (1pc, main microscope)
View Head	Siedentopf binocular head, Inclined at 30°, 360° Ratatable, Interpupilary distance 50-75mm (2pcs, secondary microscope)
Optical System	Infinite optical system
Eyepiece	Wide field plan eyepieces WF10×/22
Objective	Infinite plan objective 4×/N.A.0.1, 10×/N.A.0.25, 40×/N.A.0.65, 100×/N.A.1.25 (Oil)
Nosepiece	Quadruple nosepiece
Condenser	N.A.1.25 abbe condenser with variable diaphragm and filter
Focusing	Coaxial coarse & fine focus adjustment, fine division 0.002mm
Stage	Double layers mechanical stage, stage size: 180x160mm, moving range 80x50mm
lllumination	Kohler lllumination, With aperture diaphragm and field optical cable, halogen lamp 12V/100W, Brightness adjustable
Pointer Module	Middle LED pointer, brightness adjustable
Shipping Size (W×D×H)(mm)	730x570x220; 350x270x540; 440x340x560
G.W. (kg)	11;9;11
