- Model : ICB-150MI; ICB-250MI; ICB-350MI; ICB-450MI
- Capacity(L) : 150; 250; 350; 450
- Circulation Mode : Forced convection
- Range (℃) : 0~60
- Fluctuation (℃) : ±0.5
- External Size(WxDxH)(mm) : 635x575x1425; 680x660x1710; 685x780x1860

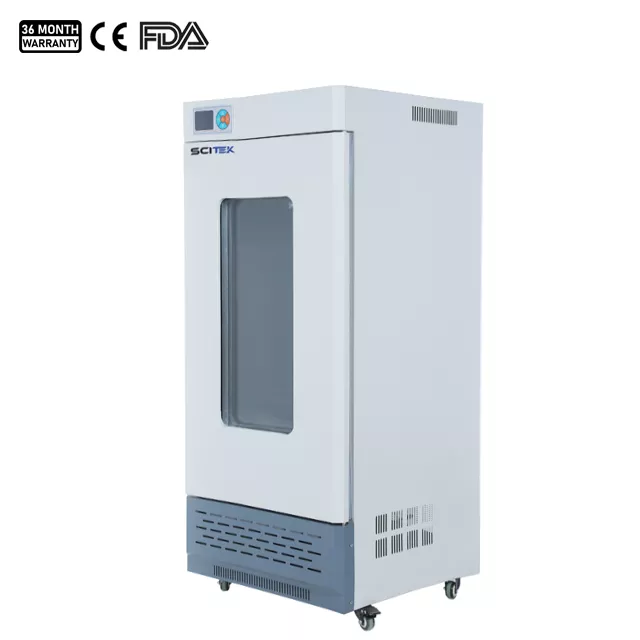

Mould Incubator
The mould incubator is specially designed for the cultivation and study of moulds. The mould incubator provides precise temperature and humidity control, enabling moulds to grow and multiply in a controlled manner. It uses advanced temperature control technology and humidity regulation systems to ensure that samples are grown under optimum conditions.
Mould Incubator Feature:
- Observation Window: Provides an easy way to view the chamber contents without opening the door.
- Adjustable Shelving: minimum spacing of 30mm to accommodate various sample sizes.
- The inner chamber is made of brushed stainless steel, ensuring durability and resistance to corrosion.
- The mould incubator is equipped with a high-quality fan and features an efficient internal circulation system with back suction and bottom vertical air supply.
- Standard UV lamp with sterilization function.
Mould Incubator Specifications:
Model | ICB-150MI | ICB-250MI | ICB-350MI | ICB-450MI | |
Capacity(L) | 150 | 250 | 350 | 450 | |
Circulation Mode | Forced convection | ||||
Size(WxDxH) | Internal (mm) | 505x380x800 | 550x450x1050 | 550x550x1150 | 700x550x1200 |
External (mm) | 635x575x1425 | 680x660x1710 | 685x780x1860 | 830x760x1860 | |
Temperature | Range (℃) | 0~60 | |||
Fluctuation (℃) | ±0.5 | ||||
Resolution (℃) | 0.1 | ||||
Uniformity (℃) | ±1 | ||||
Sensor | PT100 | ||||
Controller | PID | ||||
Display | High efinition LCD | ||||
Timer | 1~9999min | ||||
Material | Internal | Mirror sainless steel | |||
External | Cold rolled steel electrostatic spraying exterior | ||||
Shelves | 3 | 3 | 3 | 4 | |
Test Hole (Optional) | Φ25, 50, 80, 100mm | ||||
Refrigerant | R134a (CFC free) | ||||
Safety Device | Leakage protector, over temperaure visible & audible alarm | ||||
Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | |||
Consumption (W) | 690 | 730 | 780 | 1320 | |
N.W./G.W. (kg) | 100/120 | 120/150 | 140/160 | 158/200 | |
Shipping Size (WxDxH) (mm) | 760x710x1610 | 800x760x1930 | 810x900x2020 | 900x1150x2080 | |
Optional | Test hole, spare shelf, internal socket, digital independent temp. limiter, intelligent LCD procedure temperature controller (Optional USB, RS485/232 port, and built-in printer) |
Advantages of Mould Incubator:
- Shelves are laser hollowed-out to improve ventilation and temperature uniformity throughout the chamber.
- Intelligent Control System: The mould incubator supports both fixed value and timing modes for versatile operation.
- Features a synthetic silicone sealing strip to prevent heat loss, ensuring energy efficiency.
- Control parameters are automatically adjusted for optimal heating and energy consumption.
- Utilizes a high-efficiency, energy-saving compressor that provides stable temperature control while maintaining low power consumption.
Application of Mould Incubator:
- Scientific research: Used in microbiological research, especially in studying the growth pattern, reproduction law and physiological properties of moulds.
- Food safety is the process of detecting and controlling moulds in food in the food industry to ensure food quality and safety.
- Drug development: For testing the effect of drugs on moulds and evaluating the anti-mould effect of drugs.
- Industrial applications: In fermentation and brewing processes to provide stable environmental conditions and improve productivity and product quality.
Mould Incubator Packing:
The mould incubator is professionally packed to ensure safety during transport and packaged with a sturdy foam liner and a durable outer box. The outside of each package is marked with anti-tilt and fragile markings to remind transporters to handle it with care. Co-operate with reputable logistics companies to ensure safe and timely delivery of the equipment to customers and provide full tracking service to ensure the equipment is in good condition.
