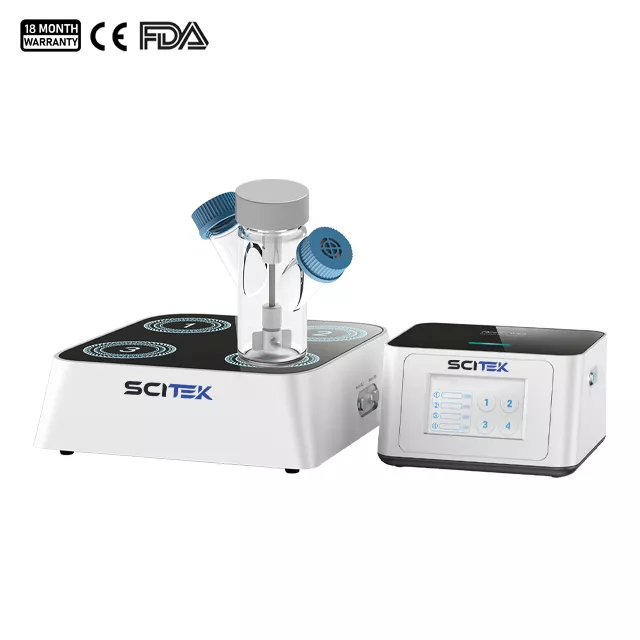

The mini bioreactor is designed for cell 3D suspension culture and is suitable for research, R&D, small-scale pilot production validation and seed tank cell expansion. It enhances cell culture flow field mixing and nutrient exchange through ultra-low-speed agitation, adapting to a variety of process scenarios. It is suitable for a variety of process scenarios, including viral infection research, microcarrier-walled cell suspension culture, wall-free cell suspension culture, cell expansion and fermentation.
Mini Bioreactor Feature:
- Easy to use interface that is simple.
- Adaptable control, intermittent speed, or constant speed to accommodate various production and experiment requirements.
- Controller and main machine operated separately. Control the main machine outside the incubator in real time. stations run independently.
Mini Bioreactor Specifications:
| Model |
BioR-M5 |
| Display |
4.3-inch |
| Maximum Working Capacity (L) |
500mL |
| Maximum Qty of Culture Vessel |
4 |
| Capacity of Culture Vessel |
125mL or 500mL |
| Design of Culture Vessel |
Built-in impeller, breathable cap, bottle with high quality glass, autoclavable and reusable |
| Working Mode |
Constant / Intermittent / Customized |
| Speed Control |
0-120 rpm stepper adjustable |
| Speed Accuracy |
1rpm |
| Power Supply |
AC220V, 50/60Hz |
| Controller Size(W×D×H)(mm) |
200x170x115 |
| Size(W×D×H)(mm) |
390x352x104 |
| Shipping Size(W×D×H)(mm) |
760x510x280 |
| N.W./G.W. (kg) |
6/8 |
Advantages of Mini Bioreactor:
- 0 to 120 rpm low speed design with smooth operation, 1 rpm high precision, and an effective way to increase the rate of cell proliferation.
- Stable temperature control with a unique insulation/heat dissipation design to suit cell culture requirements.
- Smooth speed control to prevent shear stresses during start, stop, acceleration, and deceleration from damaging cells.
- Culture bottles, reusable and autoclavable, available in several capacities (125 mL, 500 mL, etc.).
Application of Mini Bioreactor:
- Ideal for cultivating cells in a three-dimensional suspension environment.
- Scientific Research: Supports various research projects and experiments.
- R&D and Process Validation: Useful in R&D exploration and validating small-scale production processes.
- Cell Expansion: Facilitates cell scale-up in seed tank equipment.
- Special Cell Cultures: Suitable for suspension cultures of walled and non-walled cells, and special cell clusters.
- Virus Research: Enables virus infection studies.
- Fermentation: Applicable for fermentation processes
