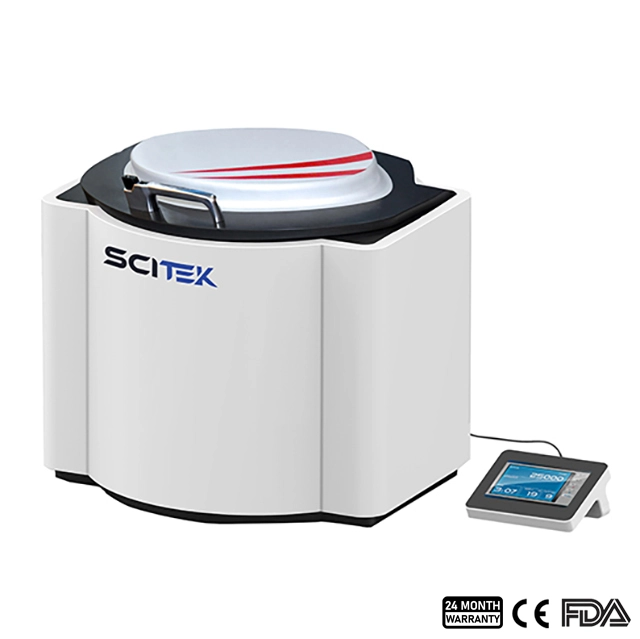

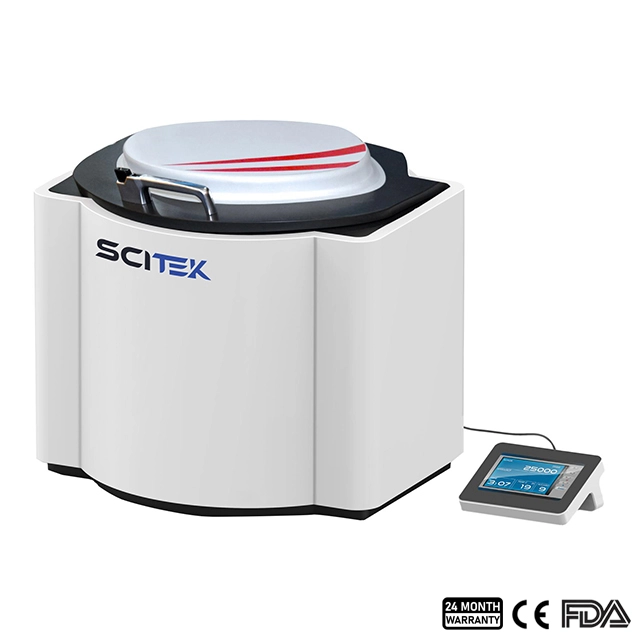

Microwave Digestion System MDS-12/18

This microwave digestion system uses a non-contact temperature sensor for unrivalled digestion control.

  • Model : MDS-12; MDS-18
  • Vessel Volume 100 ml
  • Temperature Monitoring Contactless IR sensor
  • Temperature Control Scanning control of each vessel
  • Sizes (W×D×H)(mm) : 640x630x690(Main device)

Share the product

Microwave digestion is commonly used to prepare a wide variety of samples, from food to metals, ceramics and mining, and anything in between. Our microwave digestion system in this range incorporates advanced sensor technology and the highest safety standards. Designed for closed vessel microwave acid digestion, it offers a wide range of benefits including safety and ease of use.

Microwave Digestion System Feature:

  1. Sample Digestion Vessel with a Special Design
    The national patent-winning automatic vent and self-resealing structure guarantees that the digestive vessels can promptly and automatically release pressure.reseal in the event of an unexpected overpressure scenario. It also saves vessel breakage and the waste of batch samples and solutions.
  2. Contactless System for Monitoring Pressure and Temperature
    Each digesting vessel’s sample solution temperature may be monitored in real time by the sophisticated contact-less infrared sensor. The pressure of each vessel could be tracked in real time by the contact-less pressure sensor in the meantime. This prevents cross-contamination of samples and achieves isolation between the temperature and pressure control systems. A clear assessment of the circumstances for digestion is made possible by the presentation of every temperature and pressure measurement in real time throughout the entire process.

Microwave Digestion System Specification:

Model MDS-12 MDS-18
Vessel Quantity 12 Vessels 18 Vessels
Vessel Volume 100 ml
Temperature Monitoring Contactless IR sensor
Temperature Control Scanning control of each vessel
Temperature Control Range 50~400℃
Temperature Control Accuracy ±0.3℃
Maximum Working Temperature 250℃
Inner Vessel Temperature Limit 300℃
Display 7 inches Touch Screen
Rotation Mode 360° Continuous Rotation
Vessel Material lnner: lmported TFM
Outer; Imported PEEK+Glass Fiber
Pressure Testing Contactless pressure sensor
Maximum Working Pressure 6 MPa
Pressure Control Range 0-10MPa
Pressure Control Accuracy 0.01 MPa
Power Supply AC 220V, 50/60Hz
Microwave Power 0-2000W Adjustable/ 0-3000W Adjustable
Microwave Frequency 2450Hz
Microwave Leak <5mw/cm2
Sizes(W×D×H)(mm) 640x630x690 (Main device)
Shipping Size(W×D×H)(mm) 800x800x810 (Main device); 620x590x560 (Accessories)
N.W./G.W. (kg) 70kg(Main device) + 26kg (Accessories)/ 120kg (Main device) + 31kg (Accessories) 75kg (Main device) + 33kg (Accessories)/ 120kg (Main device) + 38kg (Accessories)

Advantages of Microwave Disgestion System:

  1. Big Capacity for Storage
    In order to provide users with convenient operation, it can edit and store 255 different types of programs in accordance with their needs. Additionally, each method program has the ability to specify parameters (such as temperature, pressure, duration, and microwave power) in accordance with their own needs.
  2. System of Safety Protection
    The gadget can operate in an extremely safe environment thanks to its powerful double-locked security door, real-time temperature and pressure monitoring, automatic overpressure and overtemperature adjustment, and abnormal sound monitoring.
  3. Power Modification
    High efficiency and even microwave throughput are guaranteed by the variable frequency resonance or non-pulse (optional) continuous rotation mode. It is able to be configured. 0~2000W to 0~3000W, depending on the needs of the user.

Applications of Microwave Digestion System:

  1. Digesting soil, water, and air samples to detect trace metals and pollutants.
  2. Analyzing nutritional content and contaminants in food and beverages.
  3. Preparing samples for elemental analysis to ensure compliance with safety and quality standards.
  4. Dissolving rock and mineral samples for subsequent elemental analysis.
  5. Breaking down complex chemical compounds for detailed study of their composition.

Microwave Digestion System Inner Structure:

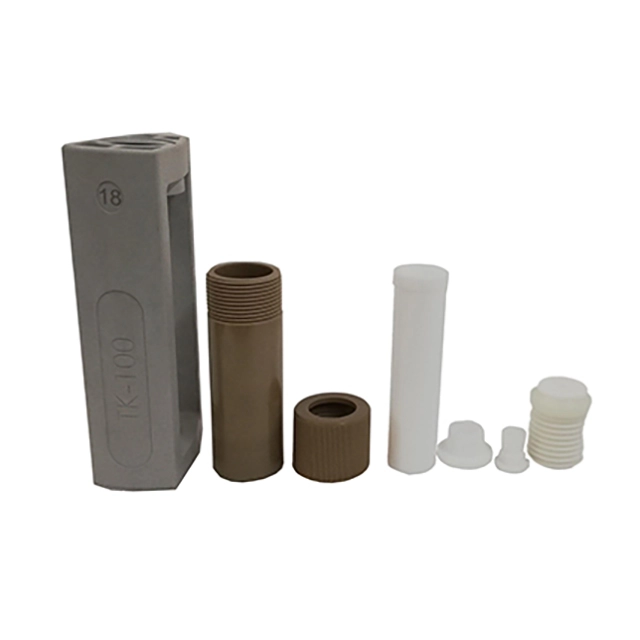

Microwave Digestion Vessel Structure

MDS-12 Inner Structure

MDS-18 Inner Structure
