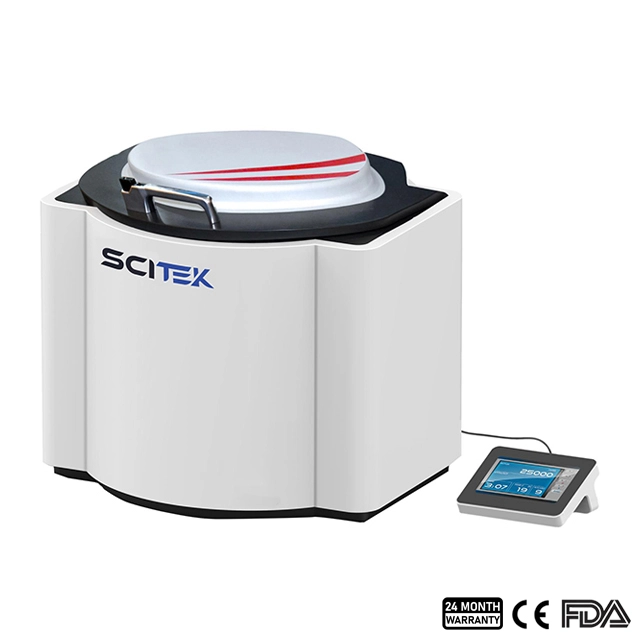

This microwave digestion system uses a non-contact temperature sensor for unrivalled digestion control.
Microwave digestion is commonly used to prepare a wide variety of samples, from food to metals, ceramics and mining, and anything in between. Our microwave digestion system in this range incorporates advanced sensor technology and the highest safety standards. Designed for closed vessel microwave acid digestion, it offers a wide range of benefits including safety and ease of use.

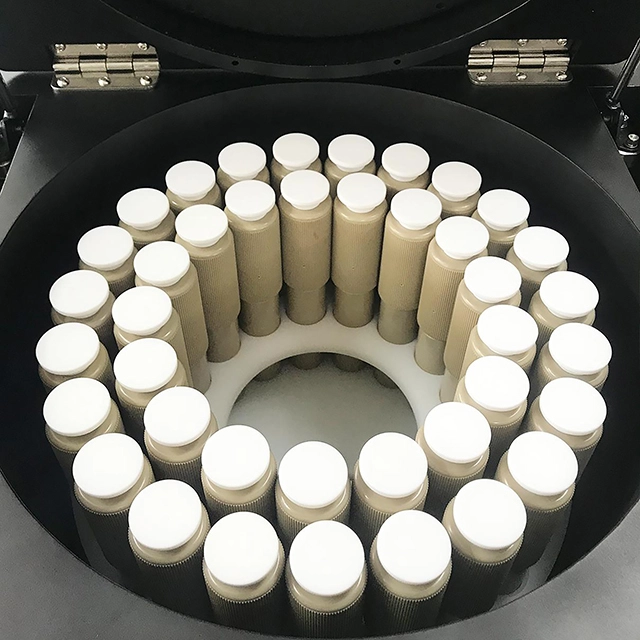

Sample Digestion Vessel with a Special Design
When an unexpected over-pressure scenario arises, the automated vent and self-resealing structure—which was awarded a national patent—ensures that the digestive vessels may release pressure automatically and quickly reseal. It also saves vessel breakage and the waste of batch samples and solutions.
Contactless System for Monitoring Pressure and Temperature
Each digesting vessel’s sample solution temperature may be monitored in real time by the sophisticated contact-less infrared sensor. The pressure of each vessel could be tracked in real time by the contact-less pressure sensor in the meantime. This prevents cross-contamination of samples and achieves isolation between the temperature and pressure control systems. A clear assessment of the circumstances for digestion is made possible by the presentation of every temperature and pressure measurement in real time throughout the entire process.
Big Capacity for Storage
In order to provide users with convenient operation, it can edit and store 255 different types of programs in accordance with their needs. Additionally, each method program has the ability to specify parameters (such as temperature, pressure, duration, and microwave power) in accordance with their own needs.
System of Safety Protection
The gadget can operate in an extremely safe environment thanks to its powerful double-locked security door, real-time temperature and pressure monitoring, automatic overpressure and overtemperature adjustment, and abnormal sound monitoring.
Power Modification
High efficiency and even microwave throughput are guaranteed by the variable frequency resonance or non-pulse (optional) continuous rotation mode. It may be adjusted between 0 and 3000W based on the needs of the user.
| Model | MDS-40 |
| Vessel Quantity | 40 vessels |
| Vessel Volume | 50 ml |
| Temperature Monitoring | Contactless IR sensor |
| Temperature Control | Scanning control of each vessel |
| Temperature Control Range | 50-400°C |
| Temperature Control Accuracy | ±0.3℃ |
| Maximum Working Temperature | 250℃ |
| Inner Vessel Temperature Limit | 300℃ |
| Display | 7 inches Touch Screen |
| Rotation Mode | 360° Continuous Rotation |
| Vessel Material | Inner: Imported TFM |
| Outer: lmported PEEK+Glass Fiber | |
| Pressure Testing | Contactless pressure sensor |
| Maximum Working Pressure | 6 MPa |
| Pressure Control Range | 0-10MPa |
| Pressure Control Accuracy | 0.01MPa |
| Power Supply | AC 220V, 50/60Hz |
| Microwave Power | 0-3000W Adjustable |
| Microwave Frequency | 2450Hz |
| Microwave Leak | <5mw/cm2 |
| Sizes(W×D×H)(mm) | 640x630x590 |
| Shipping Size(W×D×H)(mm) | 800x800x810(Main device); 620x590x560(Accessories) |
