Microwave Digestion System

Microwave Digestion System

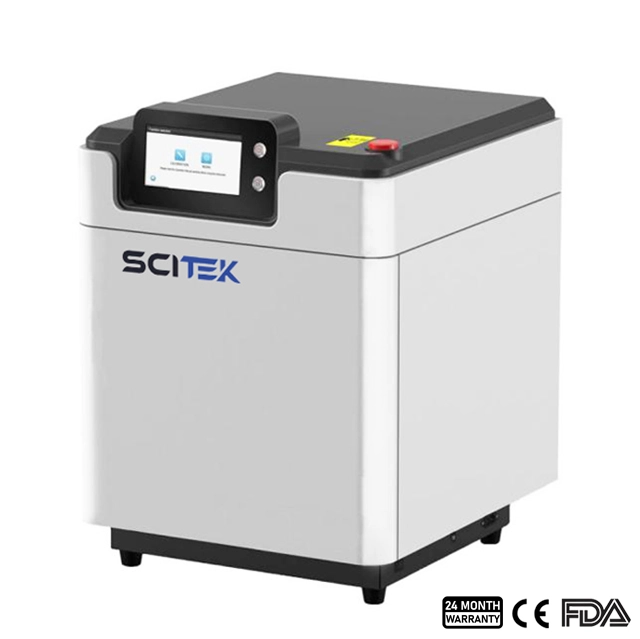

The MDS-T Series is a reliable yet safe and easy to operate microwave digestion system suitable for a wide range of matrix samples and applications

Model : MDS-T6; MDS-T8; MDS-T10; MDS-T12
Vessel Quantity : 6; 8; 10; 12
Vessel Volume : 100ml
Sample Vessel : Material Imported TFM
Sizes (W×D×H)(mm) : 560x490x630 (Main device)

Share the product

Category: Microwave Digestion

Details

Microwave digestion is commonly used to prepare a wide variety of samples, from food to metals, ceramics and mining, and anything in between. Our microwave digestion system in this range incorporates advanced sensor technology and the highest safety standards. Designed for closed vessel microwave acid digestion, it offers a wide range of benefits including safety and ease of use.

Microwave Digestion System Feature:

Up to 12 vessels are an optional quantity to accommodate varying requirements for digestion.
Designed vertically to distribute microwaves evenly.
Monitoring in real time of each vessel’s pressure and temperature.
Maintenance and consumable costs are reduced with contactless sensor monitoring that does not use a burst disk design.
Safety is greatly ensured by using imported vessel material for both sample and protection vessels.
A 7-inch color touch screen with an intuitive interface makes operating it simple.
Impact resistance is guaranteed by the high-strength imported CFRP outer shell material.
Users can also create, store, edit, and remove the pre-installed common standard methods.
A multilayer teflon coating on a 316L industrial stainless steel cavity prevents acid corrosion and increases cooling effectiveness.

Microwave Digestion System Specification:

Model		MDS-T6	MDS-T8	MDS-T10	MDS-T12
Vessel Quantity		6	8	10	12
Temperature	Temperature Monitoring	Contactless IR Sensor；Scan monitoring for each vessel
Monitoring System	Temperature Controlling Range	50~400℃
	Temperature Accuracy	±0.1℃
	Display Accuracy	±0.1℃
Pressure Monitoring System	Pressure monitoring	Contactless Sensor; Scan monitoring for each vessel
	Pressure Controlling Range	0~15MPa
	Pressure Accuracy	±0.01MPa
	Display Accuracy	±0.01MPa
Vessel Volume		100ml
Sample Vessel Material		Imported TFM
Protection Vessel Material		Peek+Glass Fiber
Display		7 inch Touch Screen
Rotation		360° Continuous Rotating
Microwave Tank		316L Stainless Steel tank With Corrosion-Proof Coating
Power Supply		AC 220V±10%, 50/60Hz
Microwave Power		0-1000W (Adjustable)
Microwave Leakage		<5mw/cm²
Air Exhaust		High Power Corrosion-Proof Air Blower
Sizes(W×D×H)(mm)		560x490x630(Main device)
Shipping Size (W×D×H)(mm)		710x640x880(Main device); 410x400x300(Accessories)		710x640x880(Main device); 500x440x320(Accessories)
N.W./G.W. (kg)		47kg(Main device) + 8kg (Accessories)	47kg(Main device) + 9kg (Accessories)	47kg(Main device) + 11kg (Accessories)	47kg(Main device) + 12kg (Accessories)
N.W./G.W. (kg)		72kg(Main device) + 11kg(Accessories)	72kg(Main device) + 12kg(Accessories)	73kg(Main device) + 14kg(Accessories)	75kg(Main device) + 15kg(Accessories)

Applications of Microwave Digestion System:

Digesting soil, water, and air samples to detect trace metals and pollutants.
Analyzing nutritional content and contaminants in food and beverages.
Preparing samples for elemental analysis to ensure compliance with safety and quality standards.
Dissolving rock and mineral samples for subsequent elemental analysis.
Breaking down complex chemical compounds for detailed study of their composition.

Microwave Digestion System Inner Structure:

Microwave Digestion Vessel Structure

MDS-T6 Inner Structure

MDS-T12 Inner Structure
