The inverted microscope offers a flexible optical concept for optimal image quality. It is the ideal solution for routine cell culture in clinics, laboratories and university teaching.

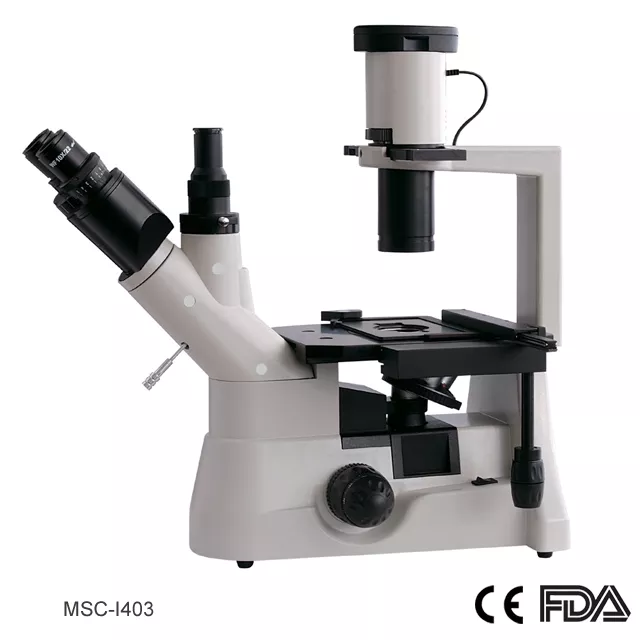

| Model | MSC-I403 |
| Viewing Head | Trinocular head inclined at 45°, interpupillary distance 50-75mm |
| Eyepiece | WF10X/ 20mm |
| Objective | LWD plan objective LWDPL 4X, 10X, 20X, 40X |
| Stage | Double layers mechanical stage |
| Stage size: 242mm x 172mm | |
| Central stage: Φ110mm | |
| Moving range: 75mm x 50mm | |
| Condenser | N.A.0.3Abbe condenser W.D .75mm |
| Focusing | Coaxial coarse & fine focusing adjustment with rack and pinion mechanism fine focusing scale Value 0.002mm |
| Phase Contrast Sliding Plate | Center of phase contrast ring plate adjustable |
| Centering Telescope | Centering telescope |
| Filter | Blue, green, yellow and froster glass |
| Light Source | Halogen bulb 12V/30W, adjustable brightness |
| Fluorescence Attachment | B.GWave band, 220V(110V)/100W mercury lamp |
| Shipping Size (WxDxH)(mm) | 770x320x480 |
| G.W. (kg) | 20 |
