The ET-H04 is a complete, compact gel electrophoresis system for easy separation of nucleic acids.
- Model : ET-H04
- Sample Comb : 26, 52 samples (can range guns and add samples)
- Buffer Capacity : 1600ml
- Sizes (W×D×H)(mm) : 420×270×85

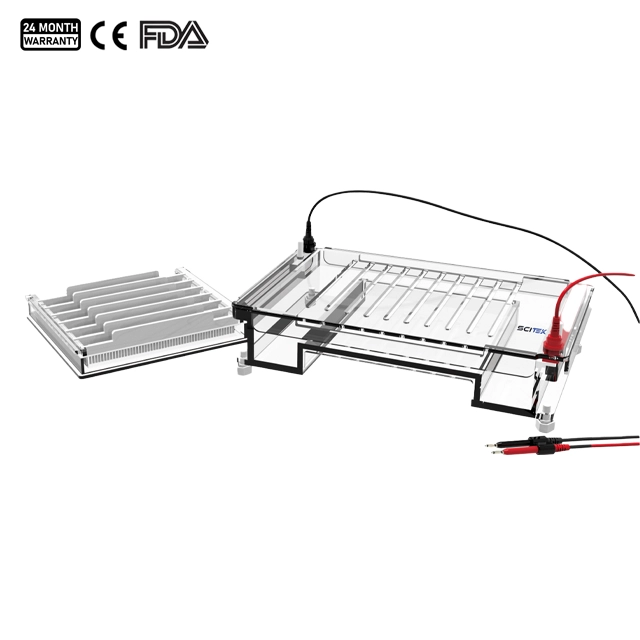

Horizontal Electrophoresis Tank ET-H04
The horizontal electrophoresis tank is made of acrylic and consists of two buffer chambers, each containing one electrode. The device consists of a gel comb, a horizontal electrophoresis tank, a casting tray, electrodes and a power supply.
Horizontal Electrophoresis Tank Feature:
- Horizontal electrophoresis tank can be used for high-throughput agarose horizontal electrophoresis, which can detect the molecular weight of DNA, as well as for DNA identification and separation.
- The operating efficiency of the electrophoresis tank is increased because it can electrophorese 360 samples simultaneously.
- The top lid of the horizontal electrophoresis tank is made with openings to help disperse heat and make it easier to see the experiment.
Horizontal Electrophoresis Tank Specifications:
| Model | ET-H04 | |
| Gel tray(W×L)(mm) | 245×250 | |
| Sample Comb | 26, 52 samples (can range guns and add samples) | |
| Buffer Capacity | 1600ml | |
| Sizes (W×D×H)(mm) | 420×270×85 | |
| Shipping Size(W×D×H)(mm) | 630×440×240 | |
| N.W./G.W. (kg) | 4/8 | |
| Name | Specification | Quantity |
| Main Body Groove (upper cover) | 1 | |
| Main Tank (lower tank) | 1 | |
| Glue Maker | 1 | |
| Tray | 1 | |
| Sample Comb | 52 samples | 7 |
| 26 samples | 4 | |
| Wireway | 1 | |
Advantages of Horizontal Electrophoresis Tank:
- A horizontal adjustment knob on the bottom of the electrophoresis tank guarantees a smooth level.
- The preparation experiments are made more convenient by the specifically constructed gel-making tank.
- Utilizing 99.99% high-purity platinum electrode wire greatly increases conductivity and resistance to corrosion while assuring the precision and robustness of the investigations.
