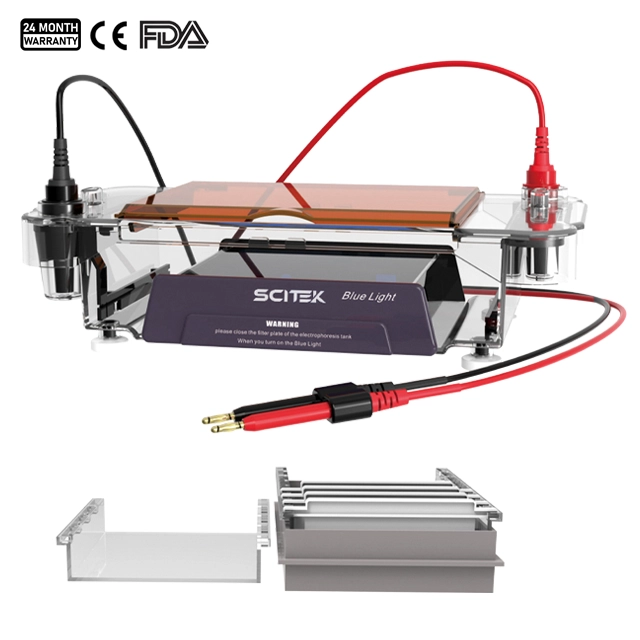

The horizontal electrophoresis tank is made of acrylic and consists of two buffer chambers, each containing one electrode. The device consists of a gel comb, a horizontal electrophoresis tank, a casting tray, electrodes and a power supply.
Horizontal Electrophoresis Tank Feature:
- To view the electrophoresis bands in real time while the procedure is underway, include an integrated blue light monitoring device.
- To view clear electrophoretic bands, a flip-up anti-blue light top cover can totally block blue light.
- After five minutes, the blue light turns off automatically to prevent prolonged lighting from shortening the blue light beads’ lifespan.
- It can dissipate heat by opening the top cover for electrophoresis when monitoring is not required.
Horizontal Electrophoresis Tank Specifications:
| Model |
ET-H03I |
| Gel Tray(W×L)(mm) |
130×150,130×200 |
| Gel Thickness |
1.0mm |
| Sample Comb |
14, 18, 26 samples |
| Blue Light Wavelength |
470nm |
| Buffer Capacity |
800ml |
| Shipping Size(W×D×H)(mm) |
410×250×220 |
| N.W./G.W. (kg) |
1.5/3 |
Advantages of Horizontal Electrophoresis Tank:
- Up to 200 samples can be electrophoresed at once in large volumes.
- It is more convenient to maintain and replace movable electrodes.
- The electrophoresis tank’s horizontal state can be changed by turning the bottom horizontal adjustment screw.
- Dedicated glue maker that produces glue quickly and conveniently
