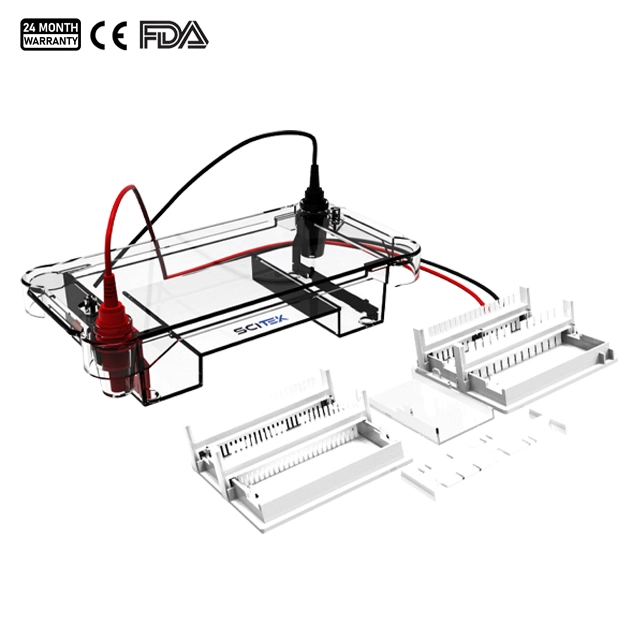

The horizontal electrophoresis system is made of acrylic and consists of two buffer chambers, each containing one electrode. The device consists of a gel comb, a horizontal electrophoresis tank, a casting tray, electrodes and a power supply.
Horizontal Electrophoresis Tank Feature:
- Durable Construction: Made from high-strength transparent material using one-time injection molding, ensuring quality and durability.
- Efficient Heat Dissipation: The open-hole design of the upper cover aids in heat dissipation and allows observation of internal experiments.
- Simplified Gel Preparation: Unique elastic compression-type gel maker prevents gel from sticking to the tray, making preparation simpler, safer, and faster.
- Easy Maintenance: Removable electrodes facilitate cleaning and maintenance, ensuring long-term stability and reliability.
- Enhanced Performance: 99.99% high-purity platinum electrode wire improves conductivity and corrosion resistance, ensuring accuracy and durability in experiments.
Horizontal Electrophoresis Tank Specifications:
| Model |
ET-H02 |
| Gel Tray(W×L)(mm) |
120×120, 120×60, 60×120, 60×60 |
| Gel Thickness |
1&1.5mm |
| Sample Comb |
2+3, 6+13, 8+18,11+25 samples |
| Number of Samples |
2~50pcs |
| Buffer Capacity |
700ml |
| Sizes (W×D×H)(mm) |
270×140×80 |
| Shipping Size(W×D×H)(mm) |
420×380×290 |
| N.W./G.W. (kg) |
1/2 |
| Standard Accessories |
| Name |
Specification |
Quantity |
| Main Body Groove (Upper Cover) |
|
1 |
| Main Tank (Lower Tank) |
|
1 |
| Electrode |
Positive pole (red) |
1 |
| Negative electrode (black) |
1 |
| Glue Maker |
Big |
1 |
| Fission |
1 |
| Large Tray |
120×120 |
1 |
| Middle Tray |
120×60 |
1 |
| 60×120 |
1 |
| Small Tray |
60×60 |
2 |
| Sample Comb |
2/3 samples |
1 |
| 6/13 samples |
2 |
| 8/18 samples |
2 |
| 1/25th samples |
2 |
| Wireway |
|
1 |
Advantages of Horizontal Electrophoresis Tank:
- Proteins, RNA, and DNA are often analyzed and separated by size in horizontal electrophoresis tanks.
- The two buffer chambers that make up the acrylic horizontal electrophoresis apparatus each include an electrode.
- The benefits of horizontal electrophoresis systems are ease of use, affordability, and capacity to evaluate a higher volume of samples.
- Tanks for horizontal electrophoresis are widely used in comet assay and nucleic acid separation and analysis.
