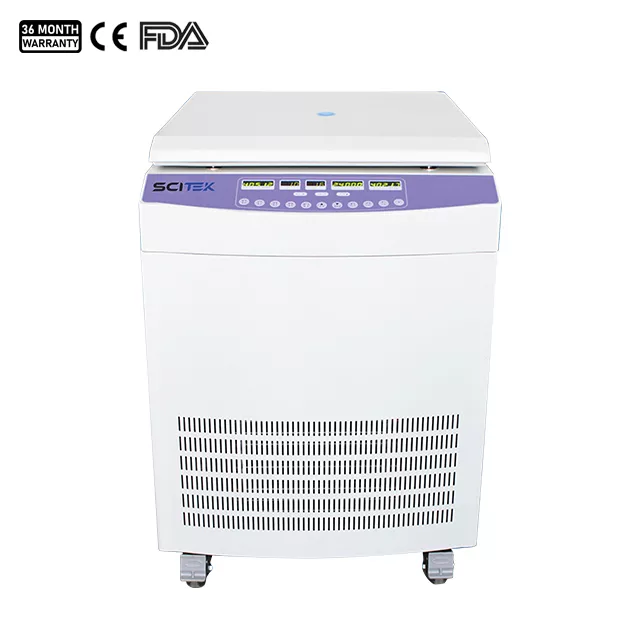

This floor-standing high speed refrigerated centrifuge is a high-performance piece of laboratory equipment designed for applications requiring fast, efficient centrifugation. Its powerful freezing function ensures that samples remain cold during high-speed centrifugation, avoiding sample degradation due to elevated temperatures. The unit is powered by an advanced DC brushless motor that provides strong power while ensuring low noise and low maintenance.

High Speed Refrigerated Centrifuge Feature:

The refrigerated centrifuge is equipped with a wide range of rotor options, including fixed-angle rotors, horizontal rotors and microplate rotors, to suit a variety of experimental needs.
Microprocessor control allows precise adjustment of speed and time, ensuring high accuracy of centrifugation operations.
Supports the saving and execution of 20 personalised programs
LCD display for easy parameter setting.
Brushless AC motor ensures the durability and reliability of the refrigerated centrifuge.
Dual lid lock design for added security

High Speed Refrigerated Centrifuge Specifications:

Model	CFG-F24HR	CFG-F24HRI
Max. speed	23,000 rpm	24,000 rpm
Max. RCF	36,795×g	40,217×g
Max. Capacity	300 mL×4	750 mL×4
Speed Accuracy	±20 rpm
Timer	1 s-99 min, continuous operation, one touch short spin operation
Noise	≦60 dB
Temperature range	-20℃-40℃
Power	220V 50Hz
Swing Out Rotor	4×300 mL, 4500 rpm, 3781×g	4×750 mL, 4200 rpm, 3550×g
Adapter1:	4×250 mL, 4×100 mL,12×50 mL (round bottom), 40×10 mL (round bottom), 20×15 mL (conical), 56×5 mL	4×500 mL, 4×250 mL, 12×100 mL (round bottom), 20×50 mL (conical), 56×15 mL/20 mL (round bottom), 76×15 mL, 96×5 mL, 144×5 mL
(Bucket)
Microplate	2×2×96
Sizes (W×D×H) (mm)	620x648x525	600x720x890
Shipping Size (WxDxH) (mm)	820x740x685	830x700x1080

Fixed-angle	Max. capacity	Parameter	CFG-F24HR	CFG-F24HRI
rotor model	Max. capacity	Parameter	CFG-F24HR	CFG-F24HRI
H0.512	12×0.5 mL	Max. rpm	23000 rpm	24000 rpm
H0.512	12×0.5 mL	Max. RCF	32625×g	32625×g
H0.524	24×0.5 mL	Max. rpm	18000 rpm	18000 rpm
H0.524	24×0.5 mL	Max. RCF	24631×g	24631×g
H0212	12×1.5 mL/2.2 mL	Max. rpm	22000 rpm	23000 rpm
H0212	12×1.5 mL/2.2 mL	Max. RCF	36795×g	40217×g
H0224	24×1.5 mL/2.2 mL	Max. rpm	16500 rpm	16500 rpm
H0224	24×1.5 mL/2.2 mL	Max. RCF	25871×g	25871×g
H0236	36×1.5 mL/2.2 mL	Max. rpm	14000 rpm	14000 rpm
H0236	36×1.5 mL/2.2 mL	Max. RCF	34237×g	34237×g
H0512	12×5 mL	Max. rpm	16500 rpm	16500 rpm
H0512	12×5 mL	Max. RCF	25871×g	25871×g
H1012	12×10 mL	Max. rpm	15000 rpm	15000 rpm
H1012	12×10 mL	Max. RCF	22891×g	22891×g
H1508	8×15 mL	Max. rpm	12500 rpm	12500 rpm
H1508	8×15 mL	Max. RCF	15721×g	15721×g
H30068	6×30 mL	Max. rpm	15000 rpm	15000 rpm
H30068	6×30 mL	Max. RCF	21885×g	21885×g
H5006	6×50 mL	Max. rpm	13000 rpm	13000 rpm
H5006	6×50 mL	Max. RCF	19838×g	19838×g
H8504	4×100 mL	Max. rpm	12000 rpm	12000 rpm
H8504	4×100 mL	Max. RCF	16904×g	16904×g
H0.548	48×0.5 mL	Max. rpm	16000 rpm	16000 rpm
H0.548	48×0.5 mL	Max. RCF	22324×g	22324×g
H0.232	32×0.2 mL	Max. rpm	12000 rpm	12000 rpm
H0.232	32×0.2 mL	Max. RCF	10464×g	10464×g
H8506	6×100 mL	Max. rpm	12000 rpm	12000 rpm
H8506	6×100 mL	Max. RCF	19320×g	19320×g

Advantages of Floor-standing High Speed Refrigerated Centrifuge:

Provides up to 15 speed options to meet different experimental needs.
Convenient Functions: Includes a countdown timer for setting speed and one-button short-time centrifugal operation.
Automatic imbalance detection: Equipped with audible alarm and overspeed protection to ensure safe operation.
Dynamic parameter adjustment allows the user to modify the settings during centrifugation (excluding programming).
Rapid pre-cooling function: equipped with a Danfoss compressor, the rotor chamber is rapidly cooled down from room temperature to 4°C within 10 minutes.
Standby function: maintains a constant temperature to ensure efficient operation.

Application of High Speed Refrigerated Centrifuge:

Molecular biology: Extraction and purification of nucleic acids (DNA and RNA).
Cell biology: Isolation of organelles, viruses and bacteria.
Biochemistry: For protein precipitation and purification.
Clinical medicine: Separation of blood components such as plasma and serum.
Drug discovery: For drug screening and metabolite analysis.
Environmental Science: analysis of microorganisms and particulate matter in water and soil samples.
Food Science: Detection and separation of trace components and contaminants in food.

High Speed Refrigerated Centrifuge Packing:

The high speed refrigerated centrifuge is professionally packed to ensure safety during transport and packaged with a sturdy foam liner and a durable outer box. The outside of each package is marked with anti-tilt and fragile markings to remind transporters to handle it with care. Co-operate with reputable logistics companies to ensure safe and timely delivery of the equipment to customers and provide full tracking service to ensure the equipment is in good condition.
