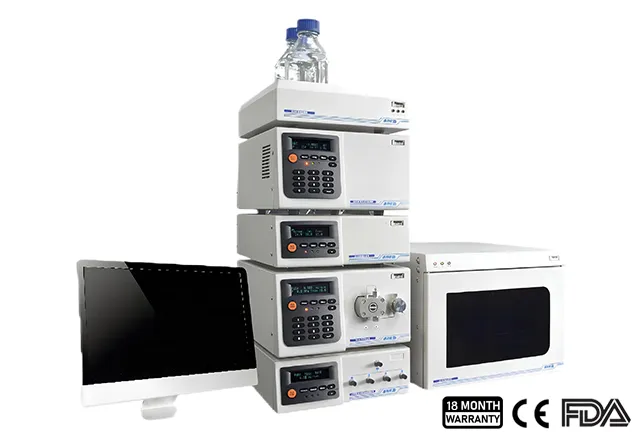

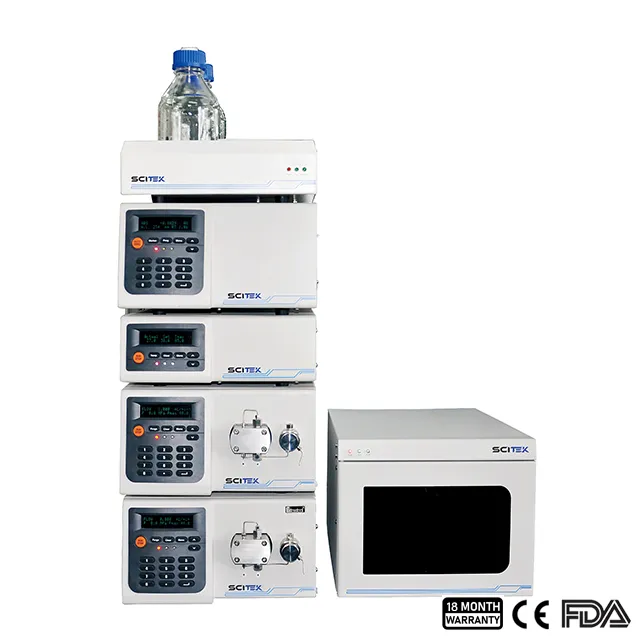

This high performance liquid chromatograph(HPLC) is ideally suited for academic laboratories that require a robust and reliable standard HPLC system.
| Model | LC-I3100 | LC-BGH3100 | LC-QGL3100 | LC-QGL3100D |
| Pump | P3100x1 | P3100x2 | P3130x1 (With mixer) | |
| Detector | UV3100x1 | DAD3100 512×1 | ||
| Gradient Mixer | / | TD-1-15×1 | / | |
| Solvent Bottle Tray | TP3100x1 | |||
| Sampler Injector | Rheodyne 7725ix1 | |||
| Column | Supersil ODS2 5μm; ID4.6x200mmx1 | |||
| Workstation | W5100x1 | W5100+PDA | ||
| AD Adapter | / | AD adapter + startup kit | ||
| Valve Mounting Frame | ZJ-1×1 | ZJ-4×1 | ||
| Degasser | / | DG3110x1 | ||
| System Kit | EClassical 3100×1 | |||
| Power Supply | AC220V±10%, 50Hz | |||
| Optional Accessory | 500ml Solvent bottlex2, Column, Column Oven, S3100 Auto-sampler, Degasser | 500ml Solvent bottlex4, Column, Column Oven, S3100 Auto-sampler | ||
| Shipping Size (W×D×H)(mm) | 630x470x410 | 630x470x410x3 | 630x470x410x2 | 630x470x410x2 |
| 350x220x260x1 | 350x210x250x1 | |||
| 530x390x130x1 | ||||
| G.W. (kg) | 35 | 50 | 39 | 43 |

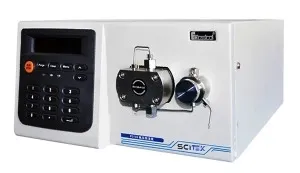

| P3100 High-Pressure Constant Flow Pump | |
| Flow Range | 0.001~10.000 mL/min (step 0.001 mL/min) |
| Accuracy | ≤±0.2% |
| Precision | ≤0.06% RSD |
| Pressure Range | 0-45 MPa |
| Power | AC220V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 620x460x400 |
| G.W. (kg) | 15 |

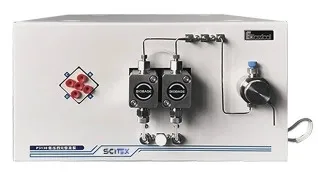

| P3130 Low-Pressure Quaternary Constant Flow Pump | |
|---|---|
| Flow Range | 0.001~10.000 mL/min (step 0.001 mL/min) |
| Gradient Accuracy | ≤±1% |
| Retention Time Repeatability | ≤0.1% |
| Maximum Working Pressure | 63 MPa |
| Communication Methods | UDP Network Communication |
| Mixed Volume | 750μL |
| Power | AC220V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 650x460x420 |
| G.W. (kg) | 17 |
| UV3100 UV-Vis Detector | |
|---|---|
| Linear | 2.0 AU |
| Wavelength Range | 190~700 nm |
| Noise | ≤±0.5*10-5AU |
| Drift | ≤1.0*10-4 AU/h |
| Cell | Analytical:Optical path 10 mm, 11 μL Semi-prep scale:Optical path 2 mm, 6 μL |
| Power | AC 220V±10%, 50Hz |
| Shipping Size (W×D×H)(mm) | 620x460x400 |
| G.W. (kg) | 18 |
| DAD3100 Diode Array Detector | |
|---|---|
| Linear | ≥2.0 AU |
| Wavelength Range | 190〜800 nm |
| Noise | ≤±1.0M05 AU |
| Drift | ≤2.0*104 AU/h |
| Power | AC220 V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 620x460x400 |
| G.W. (kg) | 18 |

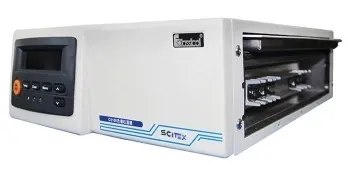

| O3100 Column Oven: | |
|---|---|
| Temperature Range | Ambient+5°C~85°C |
| Accuracy | ±0.3 °C |
| Precision | ≤0.1 °C |
| Power | AC220 V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 620x460x260 |
| G.W. (kg) | 15 |
