Automatic freezing point osmometers increase laboratory efficiency, throughput and productivity in medium to high volume laboratories.

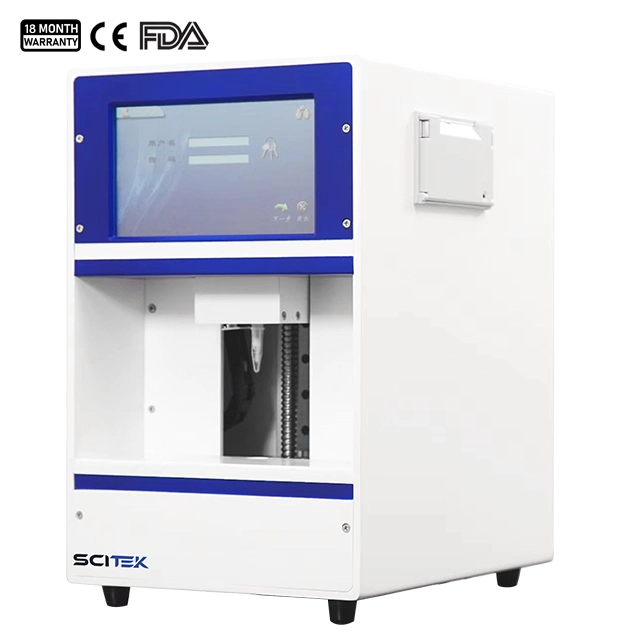

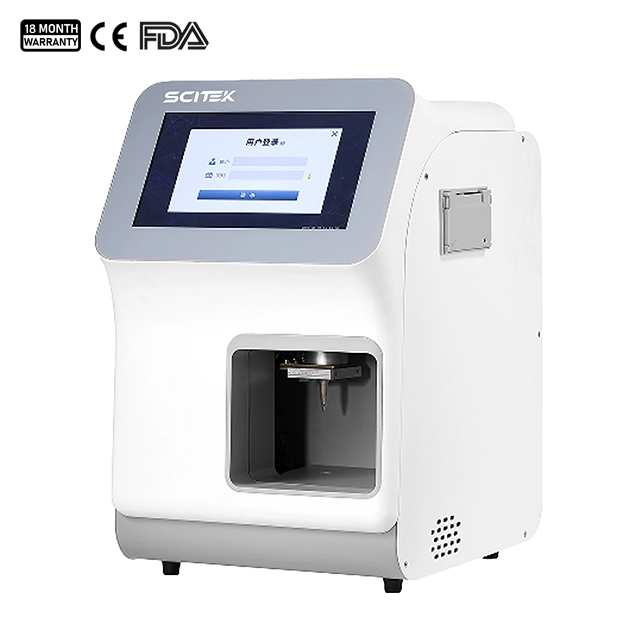

- Model : OSM-FP2; OSM-FP3
- Sample Amount: 100µl
- Measurement Error: ≤1%
- Size(W×D×H)(mm): 275x225x345; 340x300x400
Full Automatic Freezing Point Osmometer
Full Automatic Freezing Point Osmometer Feature:
- It conforms with CFR PART21, has an electronic signature feature, user categorization management capabilities, and can save testing data for up to three years. It also allows data inquiries depending on time.
- Able to carry out single-point or multi-point (31-point) linear calibration, guaranteeing that the device keeps its stability and detection accuracy throughout a range of range intervals.
- With just a tap on the screen, the entire testing procedure may be effortlessly finished thanks to the use of a screw linear guide motor design.
Full Automatic Freezing Point Osmometer Specifications:
| Model | OSM-FP2 | OSM-FP3 |
| Measurement Range | 0～2000 mOsmol | 0～3000 mOsmol |
| Sample Amount | 100µl | |
| Testing Duration | ≤3min | |
| Pre-cooling Time | ≤3min | |
| Measurement Error | ≤1% | |
| Repeatability | ≤1% | |
| Linearity | ≤1% | |
| Resolution Ratio | 0.1 | |
| Environment | 0～30℃ | |
| Temperature | Recommended for 15～25℃ | |
| Humidity Range | 60% | |
| Power Supply | AC220V,50/60Hz | |
| Size(W×D×H)(mm) | 275x225x345 | 340x300x400 |
| Shipping Size(W×D×H)(mm) | 565x440x600 | 575x450x630 |
| N.W./G.W. (kg) | 15/26 | 17/30 |
Advantages of Automatic Freezing Point Osmometer:
- With its dual refrigeration system, short pre-cooling time, and quick detecting speed, the temperature probe enables continuous testing.
- The freezing point value, molar concentration ratio, osmotic pressure, and molar concentration value are all displayed simultaneously.
- By using an athermal transfer fluid design, the cooling system lowers the requirement for routine maintenance.
Application of Automatic Freezing Point Osmometer:
The freezing point osmometer works based on Raoult’s freezing point depression theory, which states that the freezing point of a solution decreases in proportion to its molar concentration. This device uses a highly sensitive temperature sensor to accurately measure the freezing point of different solutions. From these measurements, the osmotic pressure molar concentration can be determined. This method is widely used in the analysis and research of osmotic pressure molar concentration, with significant applications in pharmaceutical analysis, pharmaceuticals and biological and food therapy.
How does a freezing point osmometer work?
The freezing point osmometer works by cooling the sample below its freezing point, then gently agitating it to induce freezing. The instrument detects the temperature at which freezing occurs, which is lower for solutions with dissolved solutes.
