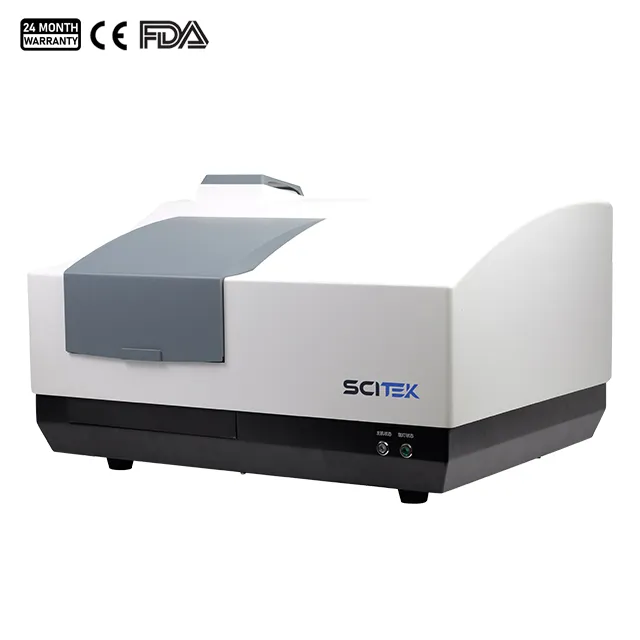

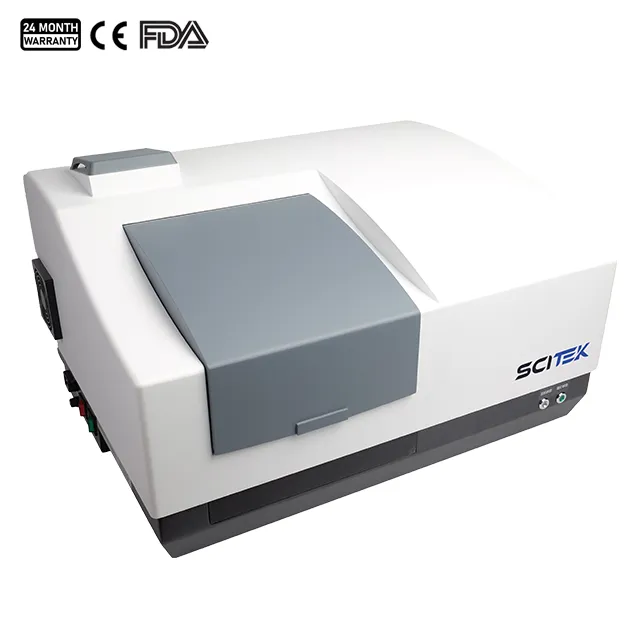

The SP-LF98 Fluorescence Spectrophotometer is designed for high performance experiments or testing.
- Model : SP-LF98
- Emission Wavelength : 200-900nm
- Wavelength Repeatability : ≤0.2nm
- Wavelength Accuracy : ±0.4nm
- Size(W×D×H)(mm) : 610×460×365
Fluorescence Spectrophotometer
Fluorescence Spectrophotometer Feature:
- Horizontal slit optical design with excellent luminescence detection efficiency and high signal-to-noise ratio.
- Adjustable bandwidth 1/2/5/10/20nm
- Fluorescence quantum yield accessories available
- Wavelength scanning speed up to 60,000 nm/min.
- Software provides synchronised scanning function
- Built-in frequency filter can provide sufficient light intensity signal.
- Photomultiplier detector ensures detection sensitivity.
Fluorescence Spectrophotometer Specification:
| Model | SP-FL98 |
| Excitation Source | 150W xenon lamp (Hamamatsu) |
| Excitation Wavelength | 200nm-900nm |
| Emission Wavelength | 200nm-900nm |
| Excitation Slit | 1nm/2nm/5nm/10nm/20nm |
| Emission Slit | 1nm/2nm/5nm/10nm/20nm |
| Wavelength Accuracy | ±0.4nm |
| Wavelength Repeatability | ≤0.2nm |
| Signal-to-Noise Ratio | S/N≥350(P-P), S/N≥1000(RMS) |
| Limit | ≤5×10-11 g/ml (Quinine Sulfate Solution) |
| Linearity | γ≥0.995 |
| Peak Repeatability | ≤1.5% |
| Wavelength Scan Speed | Multi-speed Level, Maximum at 60000nm/min |
| Minimum Sample Size | 0.5mL (Using a standard 10mm square sample cell) |
| Octave Filter | Build in Octave filter |
| Photometric Quantity Range | -19998 |
| Response Time | 0.02/0.1/0.5/1/2/4/8s, Auto adjust |
| Data Transportation | USB 2.0 |
| Power | 200W |
| Power Source | AC 220V/50Hz; 110V/60Hz |
| Size (W×D×H)(mm) | 610×460×365 |
| Shipping Size(W×D×H)(mm) | 790x670x530 |
| N.W./G.W. (kg) | 21/47 |
