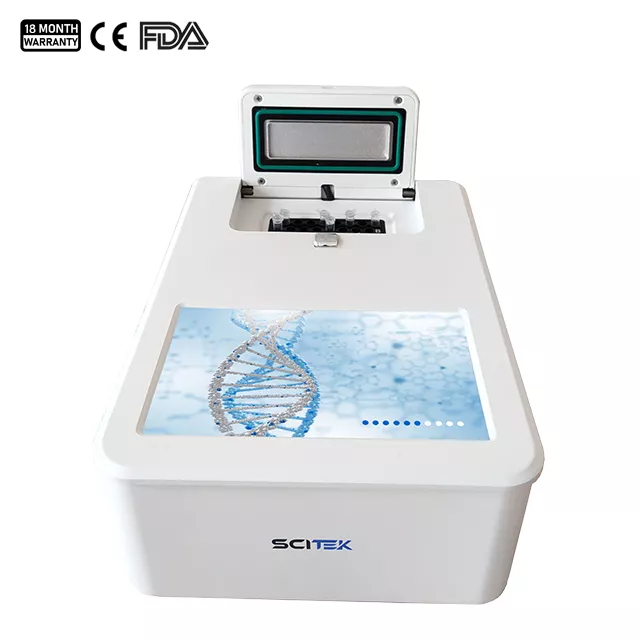

Isothermal Amplification Fluorescence PCR Detection System

The fluorescence PCR detection system combines the reliability and performance you expect with flexible configuration and control features to meet your research needs.

Model : PCR-IAF16; PCR-IAF16I
Sample Tray Sample Size : 0.2mL-16 holes (8-strip tubes are available)
Detection Wavelength : 525nm/625nm
Channel : Single/dual channel optional
Size(WxDxH)(mm) : 195x275x112

Share the product

Category: PCR Analyzers

Details

This isothermal amplification fluorescence PCR detection system is an advanced laboratory equipment designed for rapid and accurate detection of nucleic acids. The fluorescence PCR detection system combines isothermal amplification technology with fluorescence detection, enabling DNA or RNA amplification at a constant temperature and real-time monitoring of the amplification process. Its high sensitivity and specificity make it ideal for molecular diagnostics, pathogen detection and gene expression analysis.

Isothermal Amplification Fluorescence PCR Detection System Feature:

Side-illuminated detection system detects reaction volumes as low as 20 µl, saving lab materials and reagents.
Temperature control accuracy of up to 0.1°C ensures experimental stability.
Real-time monitoring of the fluorescence signal avoids human interpretation errors.
Directly displays negative and positive results without additional calculations.
High detection accuracy and efficiency to optimise the experimental process.

Isothermal Amplification Fluorescence PCR Detection System Specifications:

Model		PCR-IAF16	PCR-IAF16I
Sample Tray	Sample Size	0.2mL-16 holes (8-strip tubes are available)
	Reaction System	15-150μL (recommended 25-30μL)
	Applicable Dyes	FAM/ROX etc.
Temperature Control	Temperature Range (℃)	RT～99℃
	Maximum Heating Rate (℃)	2℃/s
	Maximum Cooling Rate (℃)	2℃/s
	Temperature Uniformity (℃)	±0.15℃
	Temperature Accuracy/Temperature Control Accuracy (℃)	±0.1℃/0.1℃
	Hot Lid Function	Yes, the temperature is adjustable
Light Path System	Channel	Single/dual channel optional	Dual channel
	Excitation Wavelength	470nm/570nm
	Detection Wavelength	525nm/625nm
	Excitation Light Source/Detection Method	Cold light source LED/real-time fluorescent signal detection
Function	Data Analysis	According to the tested samples, direct analysis to determine positive or negative
	Result Display Method	1. Negative/positive
		2. Peak starting time
		3. Melting Tm value
	Interpretation Method	1. Construction of the amplification curve to judge;
	Interpretation Method	2. Automatic judgment of the instrument
	Display Screen	7-inch touch screen
	Controlling Software	Instrument software
Power Supply	Power Supply	AC100-240V 50/60Hz,DC15V6A
Size and Weight	Size(W×D×H)(mm)	195x275x112
	Shipping Size(W×D×H)(mm)	520x440x340	520x440x340
	N.W./G.W. (kg)	3.5/6.5	3.6/6.5

Isothermal Amplification Fluorescence PCR Detection System Packing:

This isothermal amplification fluorescence PCR detection system is packed in a sturdy wooden case with foam lining, shock and impact resistant. Co-operate with reputable logistics companies to provide full tracking. Free repair or replacement for transport damage to ensure safe delivery.
