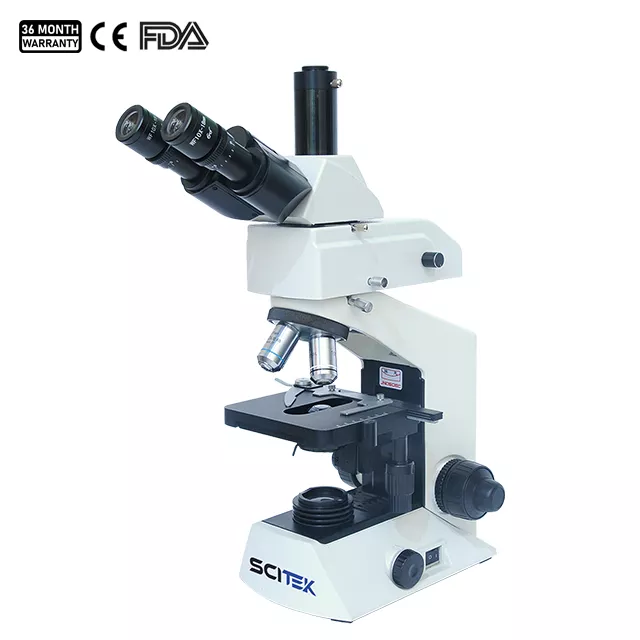

Fluorescence Microscope, Seidentopf Trinocular

The research grade fluorescence microscope offers superior quality for any laboratory.

Model : MSC-F201T
Optical System : Infinite optical system
Viewing Head : Seidentopf trinocular head, inclined at 30°, interpupillary 55-75mm
Eyepiece : WF10×18mm
Shipping Size(W×D×H)(mm) : 370x260x470

Fluorescence Microscope Feature:

The seidentopf trinocular lens is tilted at 30° for a comfortable viewing experience.
The interpupillary adjustment range of 55-75mm ensures that users with different eye distances can easily adjust the microscope for optimal viewing.
High color fidelity and minimal optical aberration.
The flexibility of multiple magnifications makes it suitable for a wide range of applications, from low-magnification scanning to detailed analysis of high magnification.
It enables precise, repeatable focusing, essential for detailed fluorescence imaging.
Adjustable brightness of the LED illumination system ensures consistent, bright illumination of specimens.

Fluorescence Microscope Specification:

Model	MSC-F201T
Optical System	Infinite optical system
Viewing Head	Seidentopf trinocular head, inclined at 30°, interpupillary 55-75mm
Eyepiece	WF10×18mm
Objective	Infinite plan achromatic objective：4×, 10×, 40×, 100×
Nosepiece	Quadruple Nosepiece
Stage	Double layers mechanical stage 140x135mm/ 75x50mm
Condense	Abbe condenser N.A. 1.25 with iris diaphragm & filter
Focusing System	Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 22mm
Illumination	LED illumination, brightness adjustable
Illumination	5W fluorescent LED illumination, with adjustable brightness
Fluorescent Attachment	DF-I fluorescent vertical illuminator.Equipped with a set of fluorescent channels.
	DF-II fluorescent vertical illuminator equipped with two sets of fluorescence channels
	DF-VI fluorescent vertical illuminator can be configured with three to six groups of fluorescent channels
Shipping Size(W×D×H)(mm)	370x260x470
G.W. (kg)	8
