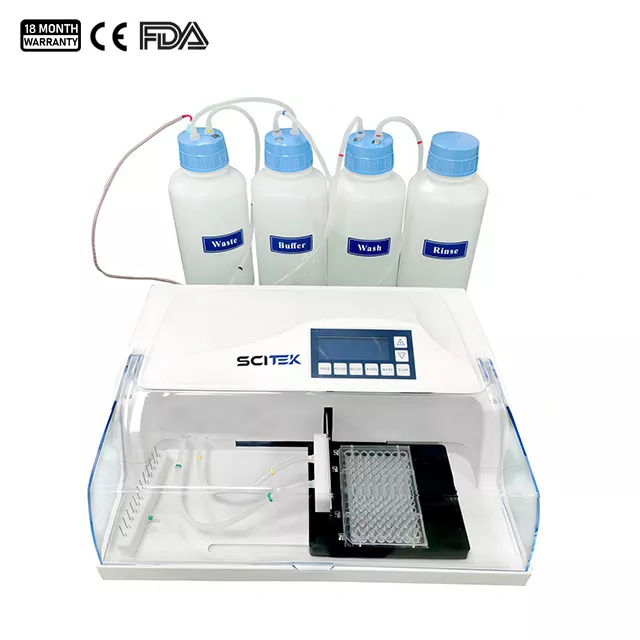

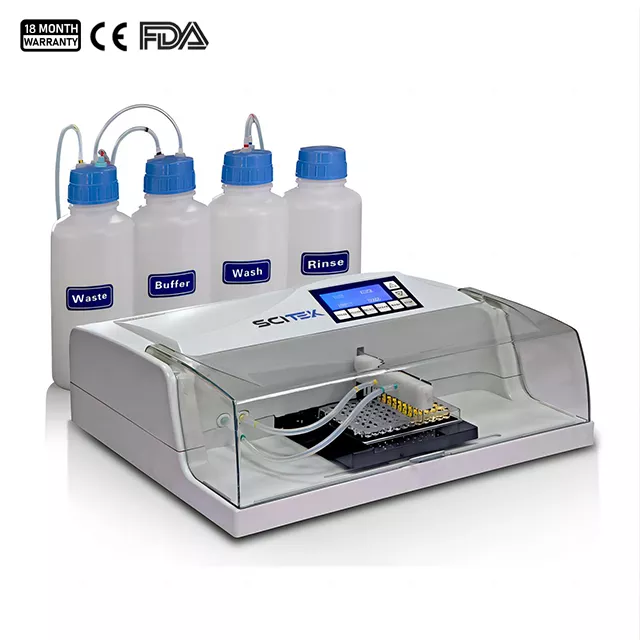

Elisa Microplate Washer

Ease of use, convenience and versatility for washing microplates in ELISA applications

  • Model : ELMW-310; ELMW-320
  • Input : 8 key membrane keyboard
  • Manifold : 8 pins and 12 pins
  • Wash Mode : Strip mode and plate mode
  • Sizes(W×D×H)(mm) : 448x382x163

Share the product

This is an efficient and user-friendly Elisa microplate washer designed for the cleaning step of ELISA and other microplate-based experiments. It provides thorough and consistent cleaning for more accurate results. With customizable wash programs, adjustable wash cycles and precise liquid dispensing, the system is suitable for a wide range of applications. The elisa plate washer also features an easy-to-use control panel and reliable waste management, making it an essential laboratory tool.

Elisa Microplate Washer Feature:

  1. A large LCD with an intuitive menu system
  2. Cleaning an entire plate or just one strip at a time
  3. Alarm system for waste liquid overflow
  4. Whole, two-, and one-point bottom washing
  5. Strip cleaning with a flat bottom, V-bottom, or U-bottom
  6. Huge memory that may hold up to 48 cleaning algorithms that users have programmed in

Elisa Microplate Washer Specification:

Model ELMW-310 ELMW-320
Input 8 key membrane keyboard
Display High brightness LCD display screen
Manifold 8 pins and 12 pins
Wash Mode Strip mode and plate mode
Wash Strips 1~12 adjustable
Applicable Well Flat, V-bottom or U-bottom
Washing Times 0~99 times adjustable
Dipping Time 0~3600s adjustable
Shaking Time 0~600s adjustable
Residual Volume ≤1μL/well
Liquid Volume 50~3000ul/well
Sipping Time 0.1~9.9s
Storage Capacity More than 100 user defined wash board procedures
Power Supply 198~242V, 49~51Hz
Washing Fluid Channel 1 1 (Optional: 2-4 Channels)
Sizes(W×D×H)(mm) 448x382x163
Shipping Size (W×D×H)(mm) 620x550x490
N.W./G.W. (kg) 10/16

Details of Elisa Plate Washer:

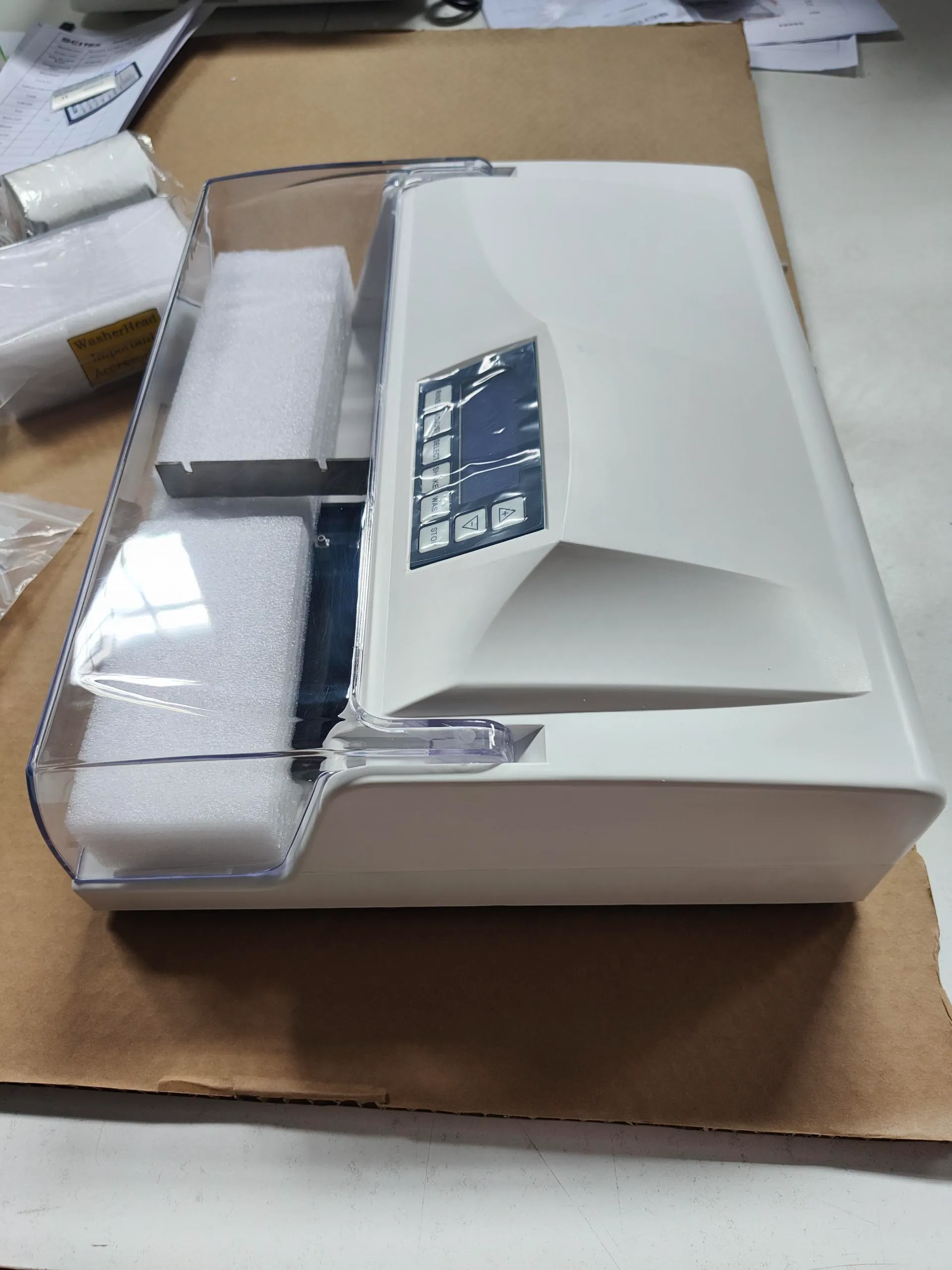

elisa plate washer

elisa plate washer

The user interface is logical and intuitive, enabling rapid development of experimental programs. The easy-to-use software is quick to start using with little training.

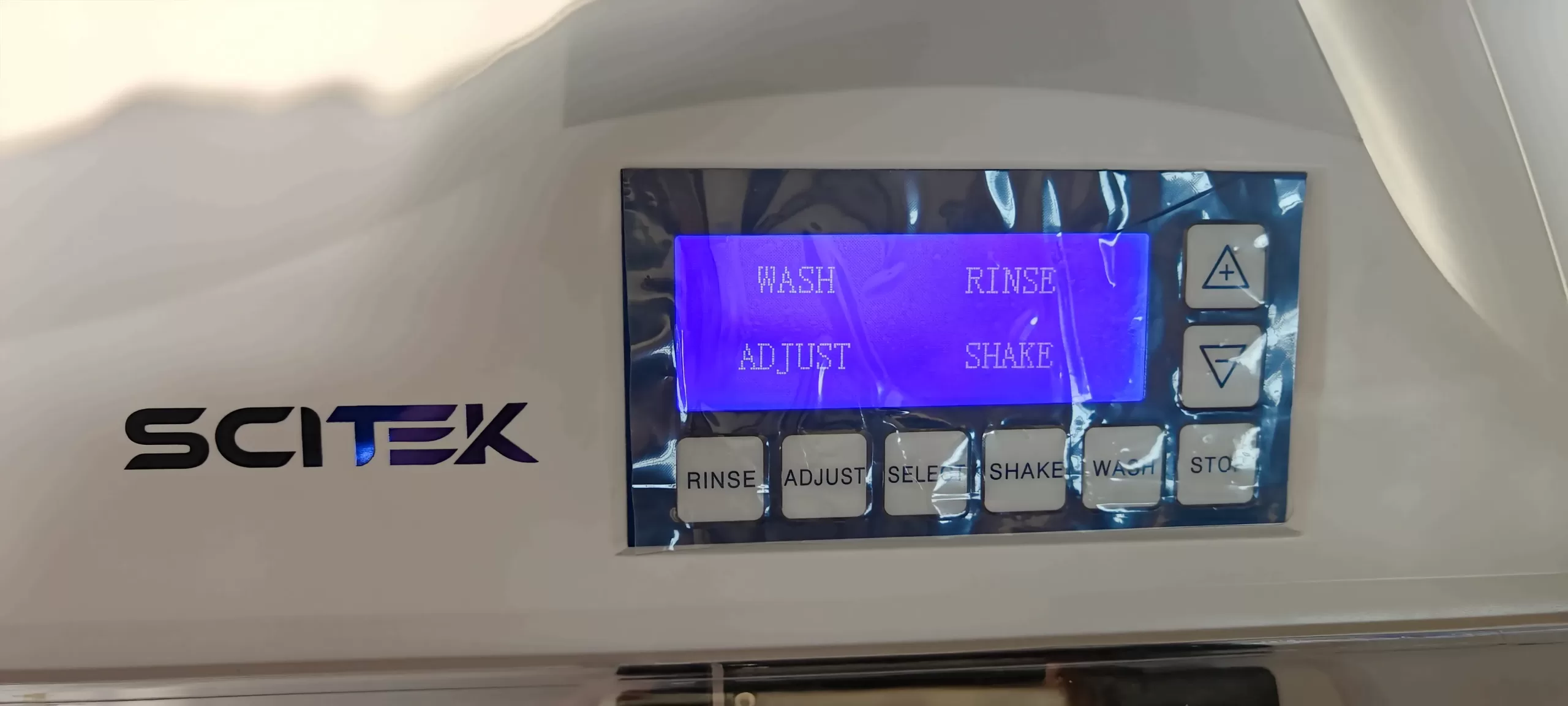

elisa plate washer discreen

Color display and small keypad for easy and convenient use. Clear display shows all information.

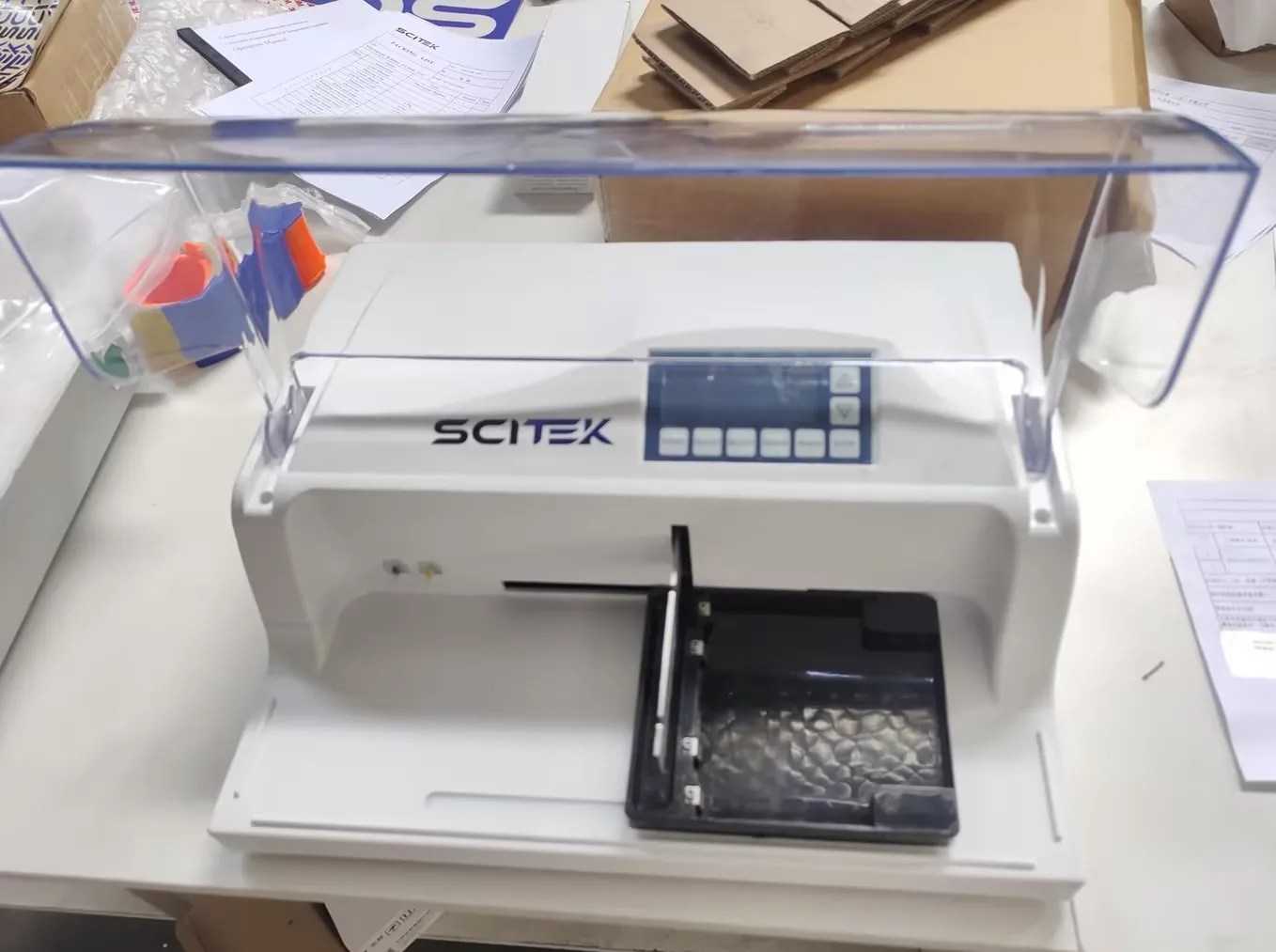

elisa plate washer

elisa plate washer

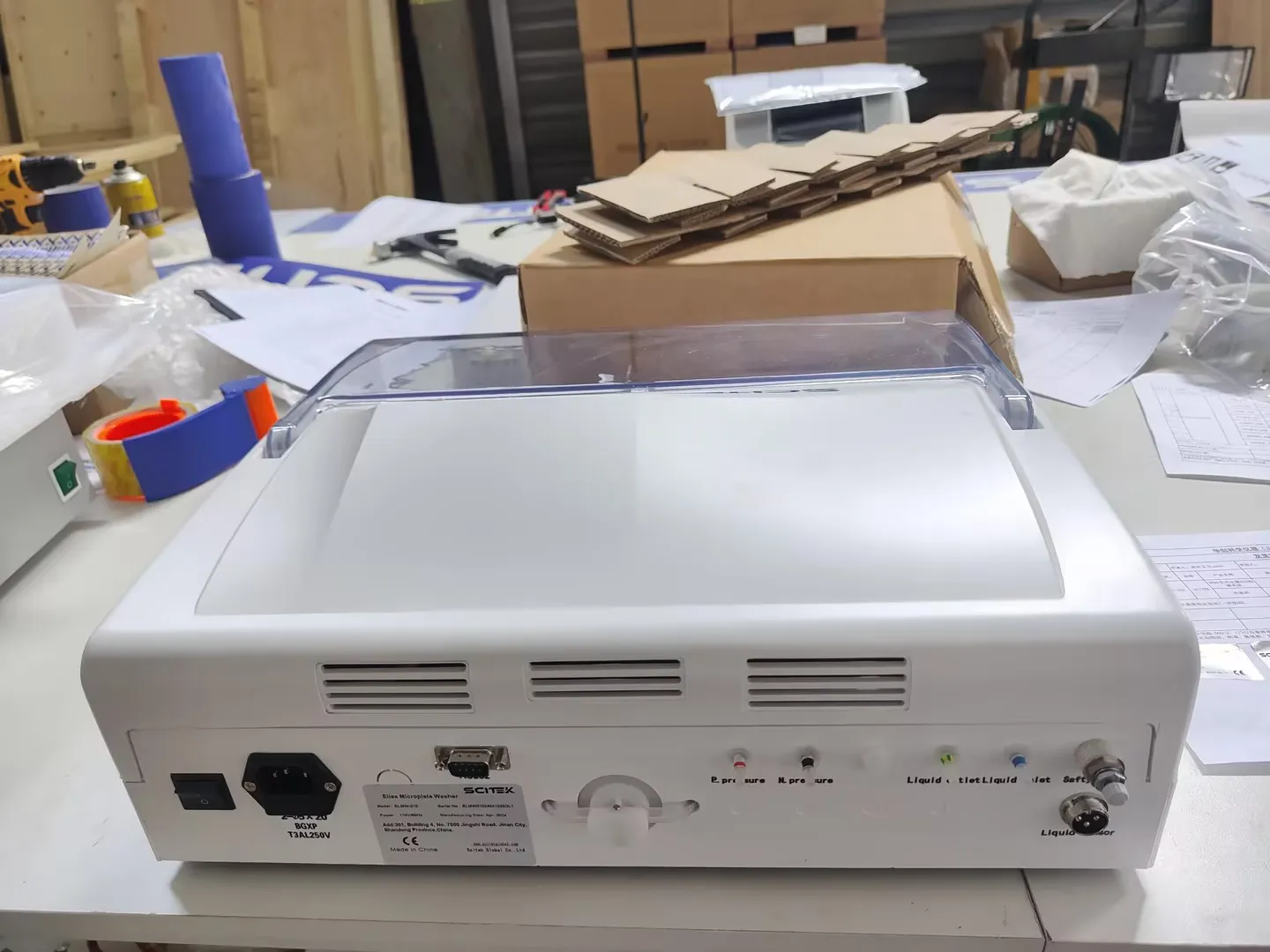

Operational programs can be transferred between multiple plate washers and reports and log files can be printed via the USB port.

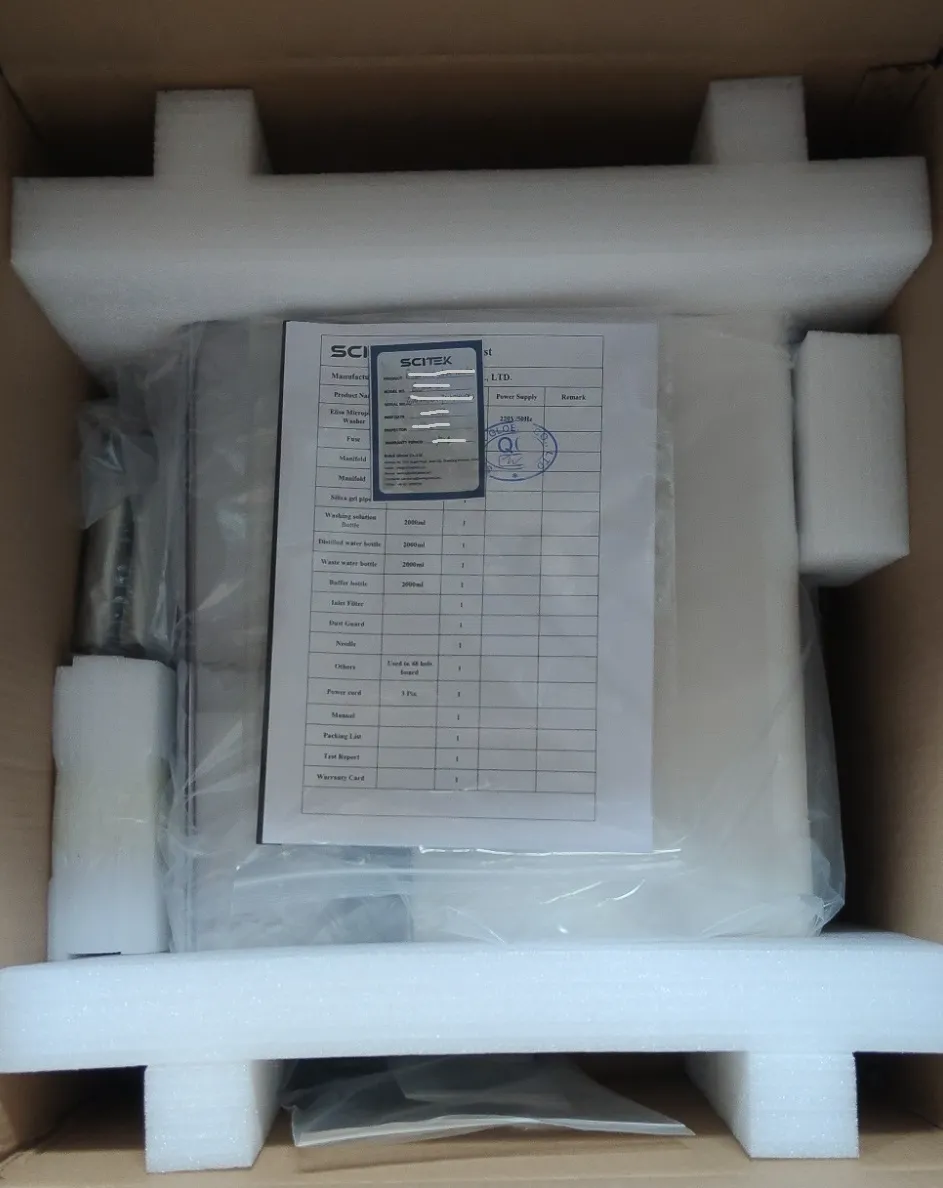

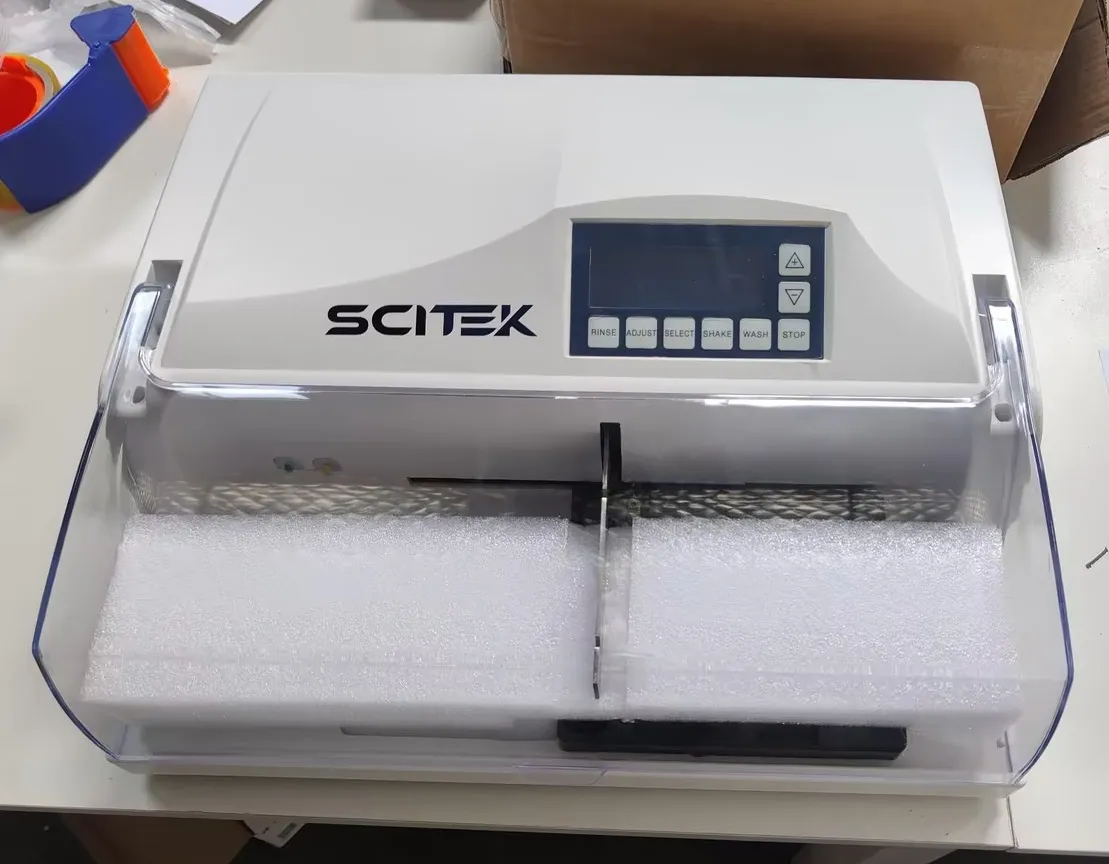

The ELISA Microplate Washer is securely packaged with soft foam padding to ensure protection during transit.

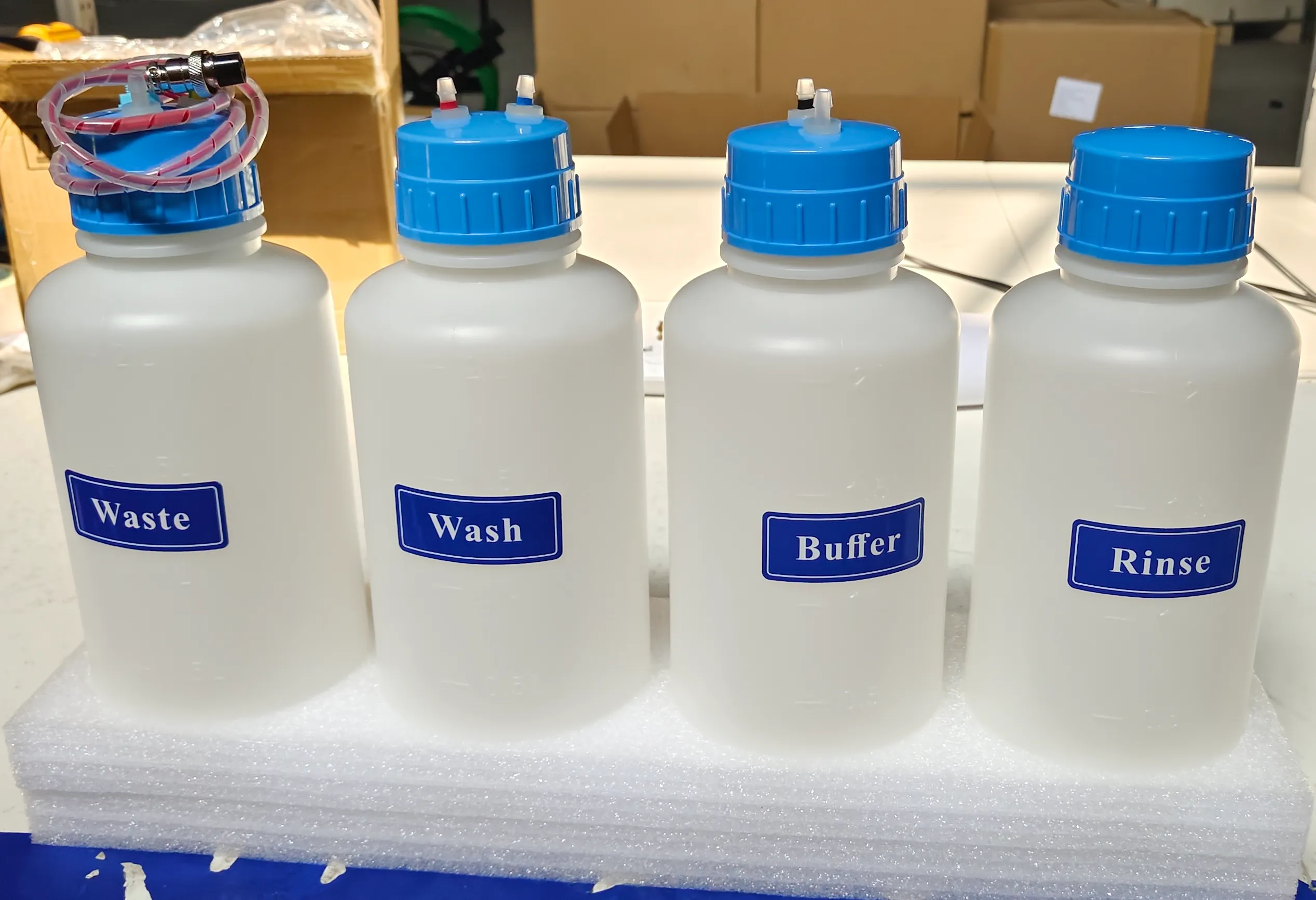

Unpressurized bottles can be used safely and reliably. Liquid level sensors are provided in both wash and waste bottles. The automatic rinsing and filling function guarantees safe performance.

Workflow of the Elisa Plate Washer:

  1. Load the plate: Place the used ELISA 96-well plate on the plate holder of the ELISA plate washer.
  2. Select plate wash program: Select the appropriate wash program and parameters.
  3. Rinse the microplate: the washer will automatically clean the impurities on the plate.
  4. Aspirate the waste liquid: The washer will aspirate the washing liquid and waste liquid from the wells through the vacuum system.
  5. Repeat washing
  6. Finish washing

What is the use of ELISA microplate washer:

An ELISA microplate washer is used to automate the washing steps in ELISA assays. It removes unbound reagents, antibodies, or other substances from the wells of a microplate, ensuring that only the bound target molecules remain. This helps improve the accuracy and reliability of the assay results by reducing background noise and preventing cross-contamination.

What is the function of the microplate washer?

The function of a microplate washer is to clean the wells of microplates, typically used in assays like ELISA, by removing unbound reagents, excess antibodies, or other materials. It ensures that only the specifically bound molecules remain, improving the accuracy and reliability of the assay. The elisa plate washer automates the process of dispensing wash solutions and aspirating the waste, making it efficient and reducing variability in the washing steps.
