The elisa microplate reader is suitable for use in biomedical research, clinical diagnostics, drug discovery and more.
- Model : ELMR-200
- Wavelength Range : 400-850nm
- Repeatability : ≤0.2%
- Accuracy : ±0.008A
- Sizes(W×D×H)(mm) : 460×350×197

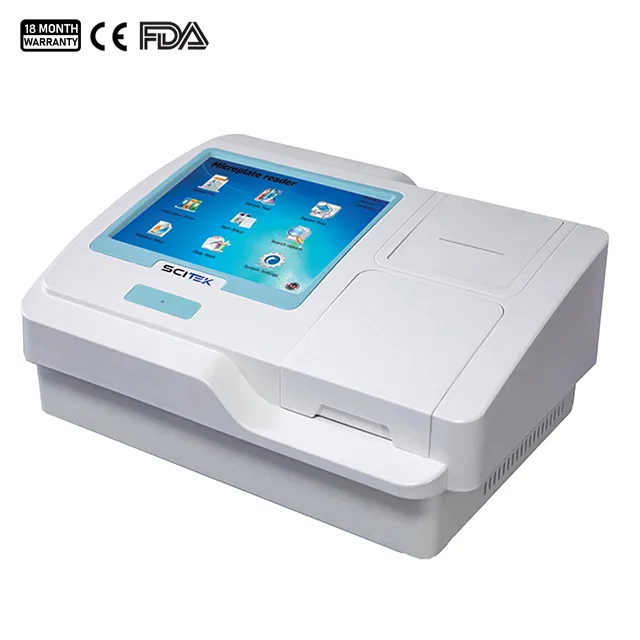

Elisa Microplate Reader, 96/48 Wells
With its high sensitivity and accuracy as well as its automation features, the Elisa microplate reader makes conducting experiments easier and more productive. It is extensively utilized in biological, medical, and biotechnological research to monitor protein interactions, screen drugs, diagnose illnesses, and perform other tasks.
Elisa Microplate Reader Feature:
- 10.4-inch touchscreen for straightforward operation
- Flexible board layout for displaying blanks, standards, samples, reference and QC on a single screen.
- Built-in thermal printer for easy printing and data transfer.
- Supports more than 20 different report formats.
- Storage for up to 20 million test data and 500 test items.
- Comprehensive qualitative and quantitative data evaluation capabilities
- Eight-channel optical system for fast readout;
- Automatic light adjustment and auto-calibration.
- Reference channel with optimised light intensity ensures reliable results;
Elisa Microplate Reader Specification:
| Model | ELMR-200 |
|---|---|
| Microplate Types | 96/48-well plate |
| Photodetector | Silicon photodiode |
| Light Source | 8v/50w controlled tungsten halogen lamp |
| Wavelength Range | 400nm~850nm |
| Standard Filters | 405, 450, 492, 630nm & 4 optional |
| Reading Range | 0.000~4.000A |
| Resolution | 0.001A |
| Accuracy | ±0.008A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003A |
| Reading Speed | Single wavelength ≤3s; Double wavelength ≤6s |
| Shaking | Linear shaking, 3 speeds |
| Printer | Built-in thermal printer, optional external printer |
| Interface Connections | DVI, VGA, NETWORK INTERFACE, USB, AUDIO INTERFACE, RS-232 |
| Power Supply | 100~240V, 50~60Hz |
| Sizes(W×D×H)(mm) | 460×350×197 |
| Shipping Size(W×D×H)(mm) | 610x510x410 |
| N.W./G.W. (kg) | 9/18 |
Details of Elisa Microplate Reader:

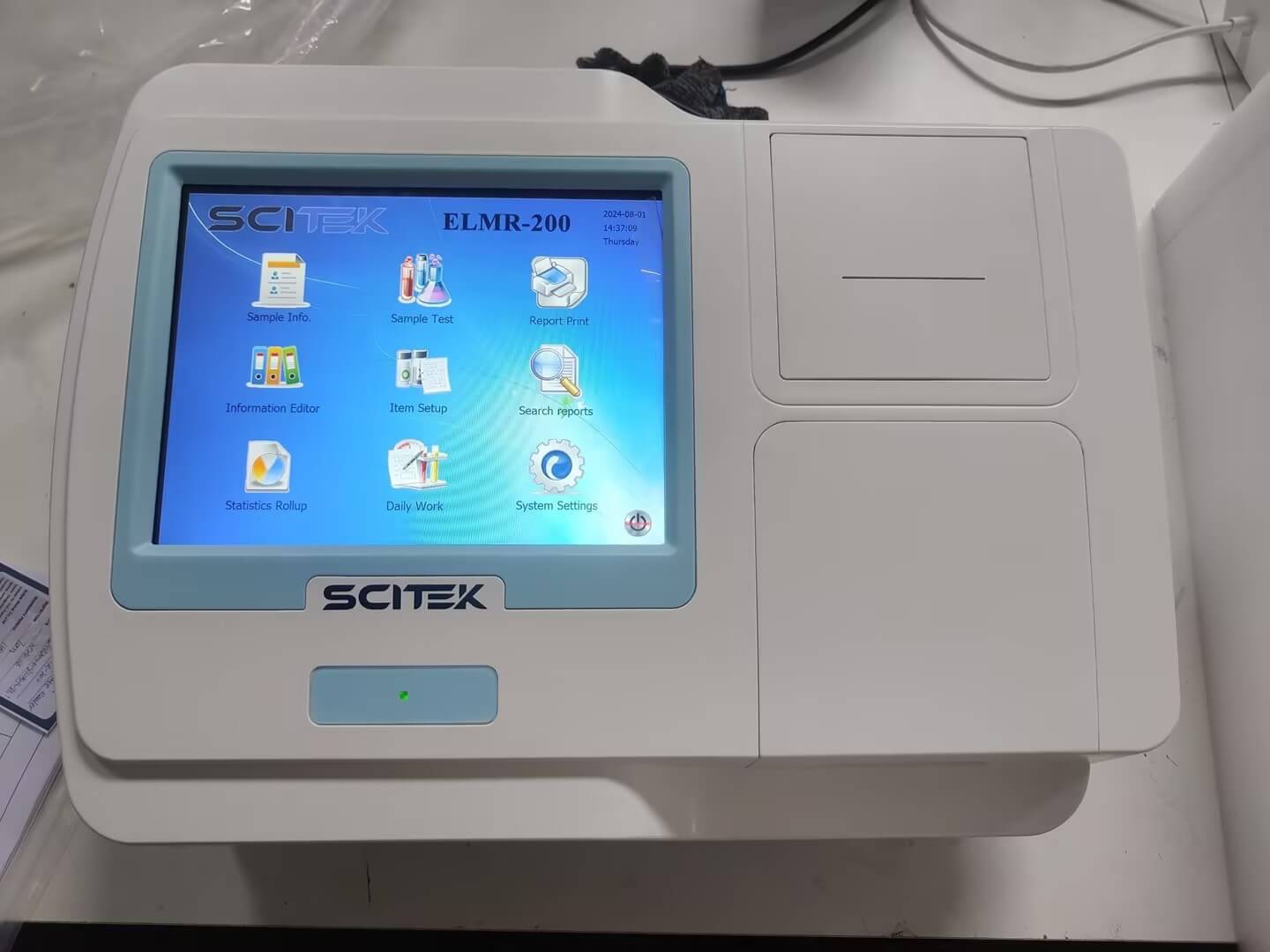

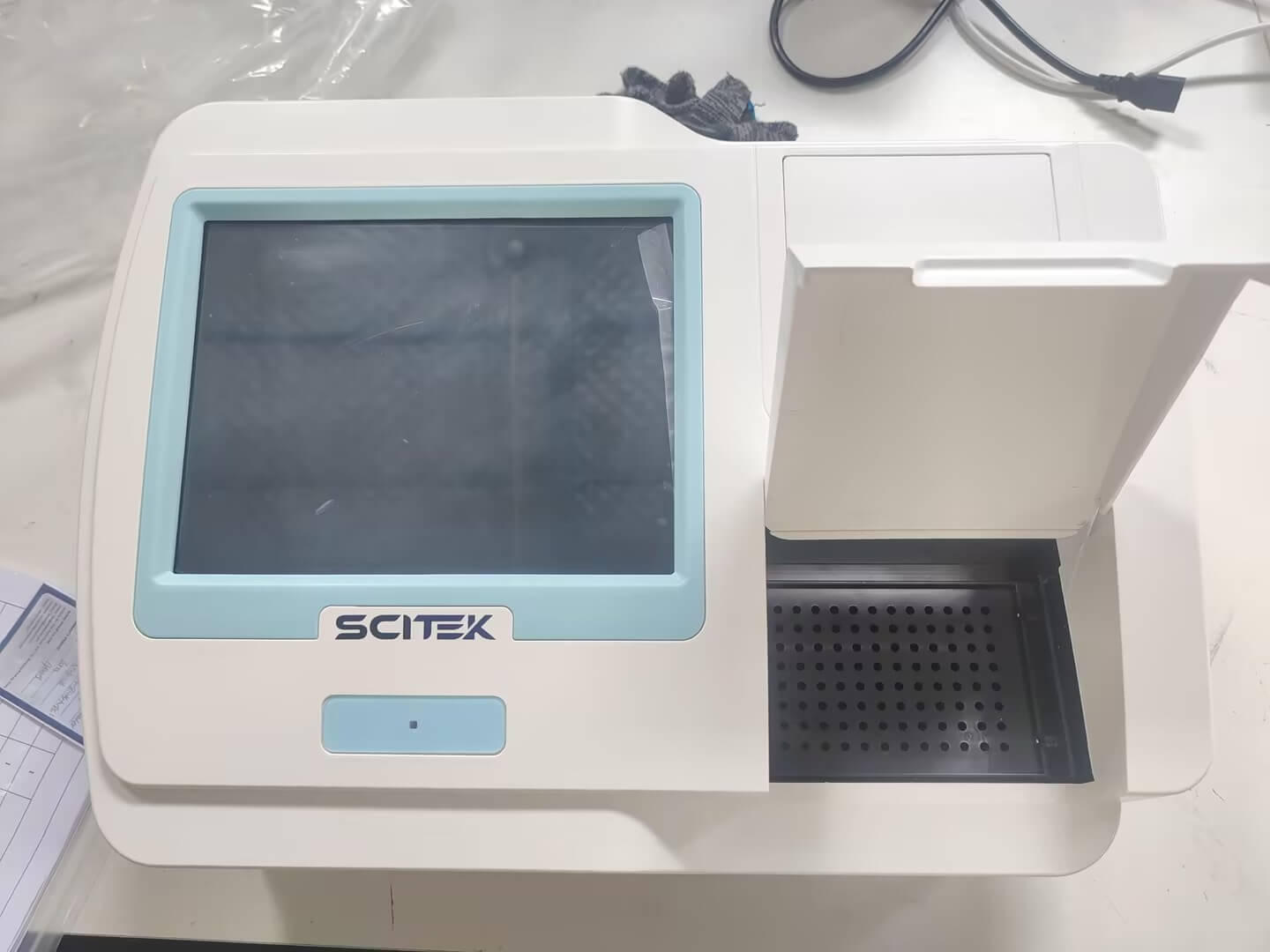

The center of the elisa microplate reader is equipped with a screen for display and a tray for microplates on the right side for user-friendly operation.
The screen displays the current operating status, test results, and menu options that the user can navigate by touch or key.

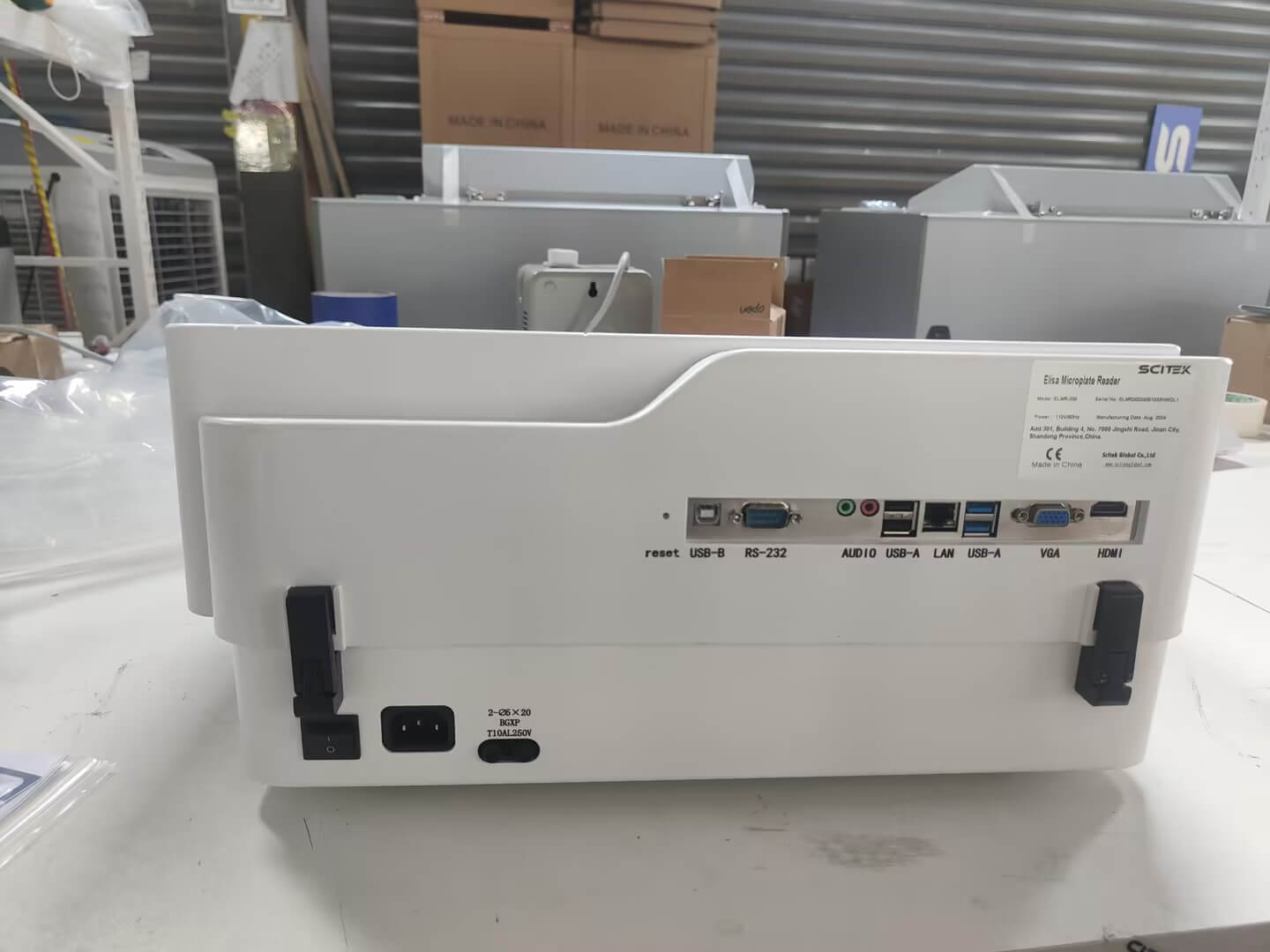

The back of the elisa microplate reader has a simple design that includes a power connector, USB port, and other connectors for easy connection to a computer or other device.
WHY SCITEK
- 18 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
What is a microplate reader for ELISA?
ELISA plate reader (ELISA) is a device capable of detecting and quantifying enzyme-linked immunosorbent assays.
Which microplate is used in ELISA?
ELISA microplates enable a common laboratory procedure to be carried out on multiple samples simultaneously. Popular ELISA plate formats include 96-well microplates and 48-well microplates.
What is the use of ELISA microplate washer?
It is widely used for cleaning enzyme labeling plates in health epidemic prevention stations, blood stations, hospitals, reagent factories, and scientific research laboratories.
