- Model : EPS-600C
- Parallel Output : 4 groups
- Timing : 1 minute~99 hours and 59 minutes
- Testing Temperature : -20℃~+85℃
- Sizes (W×D×H)(mm) : 300×300×130

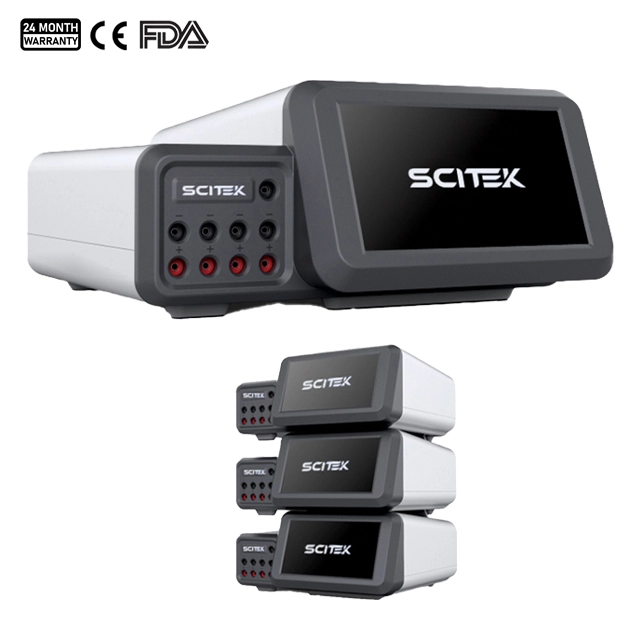

Electrophoresis Power Supply, EPS-600C
The electrophoresis power supply (EPS) is essential in laboratories for creating a stable electric field. The EPS-600C model is designed with a variety of functions and features to support electrophoresis experiments. Its primary function is to regulate voltage and current, providing the necessary electric field for separating and positioning samples in gel electrophoresis. Additionally, it incorporates several safety features to protect both the equipment and the operator during experiments, ensuring reliable and secure operation.
Electrophoresis Power Supply Feature:
- Appropriate for protein, bidirectional, isoelectric point focusing, nucleofection, SSR, and other electrophoresis studies.
- Four electrophoresis tanks can be connected simultaneously with a high current.
- For the equipment to operate steadily and dependably, constant power, constant pressure, and constant current must all be regularly adjusted.
- Each of the ten programs can be executed in ten steps and can be changed and saved.
Electrophoresis Power Supply Specifications:
| Model | EPS-600C |
| Parallel Output | 4 groups |
| Timing | 1 minute~99 hours and 59 minutes |
| Testing Temperature | -20℃~+85℃ |
| Input Range | 110-250V is suitable for different countries and regions |
| Output Range | 5-600V(1V), 1-600mA(1mA), 5-300W (1W) |
| Output Range | Constant voltage, constant current and constant power are continuously adjustable, stable and reliable |
| Resolution | Voltage (1V), current (1mA) and power (1W) |
| Sizes (W×D×H)(mm) | 300×300×130 |
| Shipping Size(W×D×H)(mm) | 470X450X290 |
| N.W./G.W. (kg) | 2.5/4.5 |
Advantages of Electrophoresis Power Supply:
- Protection against overcurrent, overload, overtemperature, short circuit, and rapid load change.
- The power supply for electrophoresis can accommodate a wide range of input voltages globally and may be used for many types of electrophoresis experiments, including blot transfer, vertical, and horizontal.
- When the 7-inch large touch screen is set, it immediately creates a numeric keypad and shows the temperature, the clock, the state of the operation, and different operation prompts.
- When constant voltage, current and power in a certain indicator, the other two automatically rise to the maximum value without human adjustment.
Applications of Electrophoresis Power Supply:
- DNA Sequencing: Provides precise voltage or current control for separating DNA fragments based on size.
- Protein Analysis: Enables accurate separation of proteins in gel electrophoresis for biochemical research.
- PCR Product Analysis: Facilitates the analysis of PCR-amplified DNA products in molecular biology studies.
- Western Blotting: Supports the transfer of proteins from gels to membranes for immunoblotting analysis.
- Mutation Detection: Assists in identifying genetic mutations through electrophoretic techniques in genetics research.
