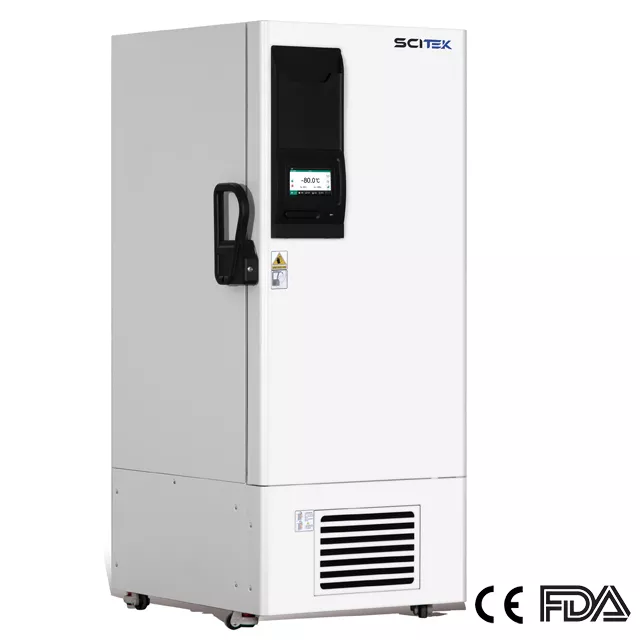

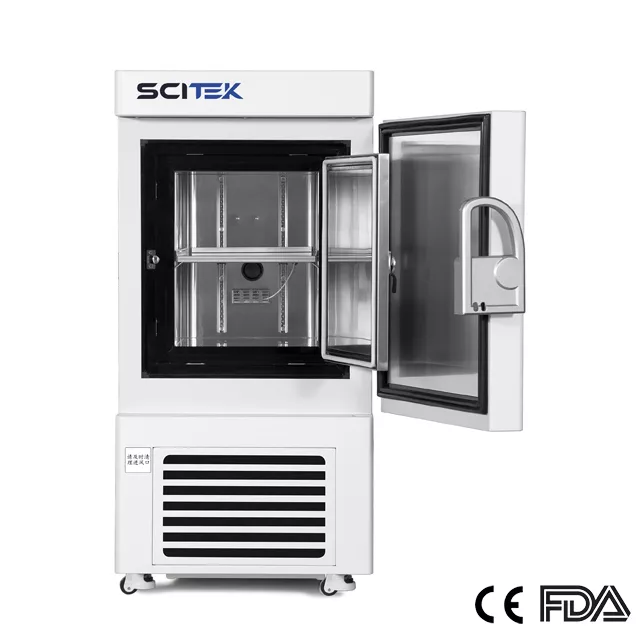

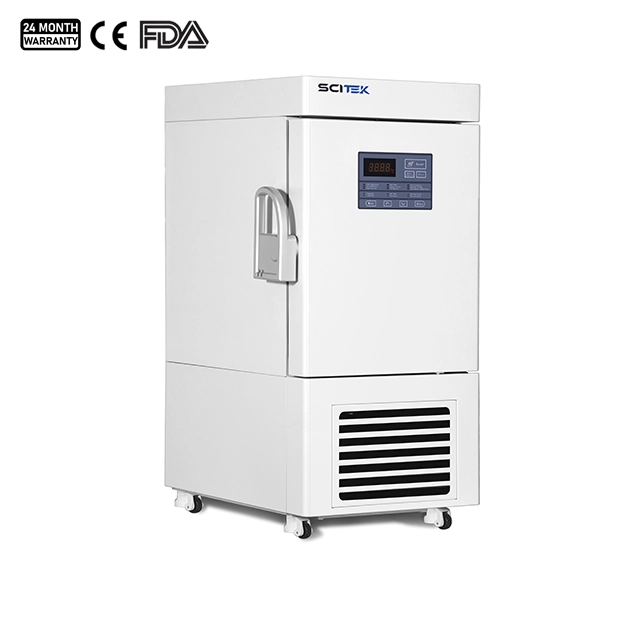

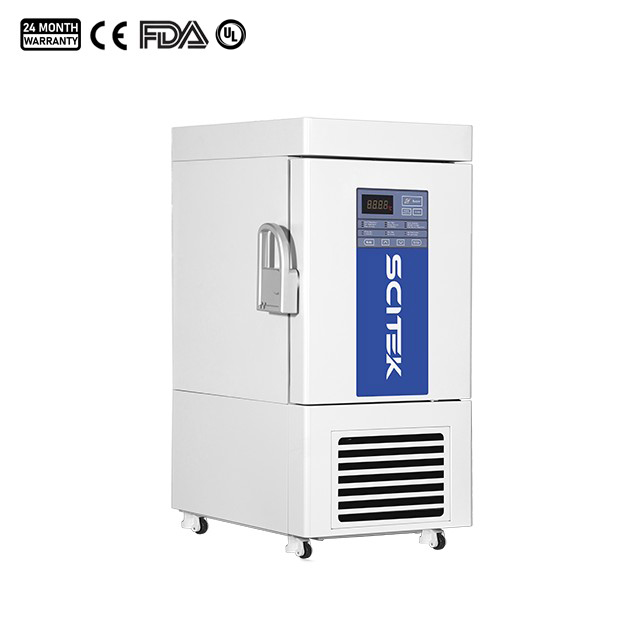

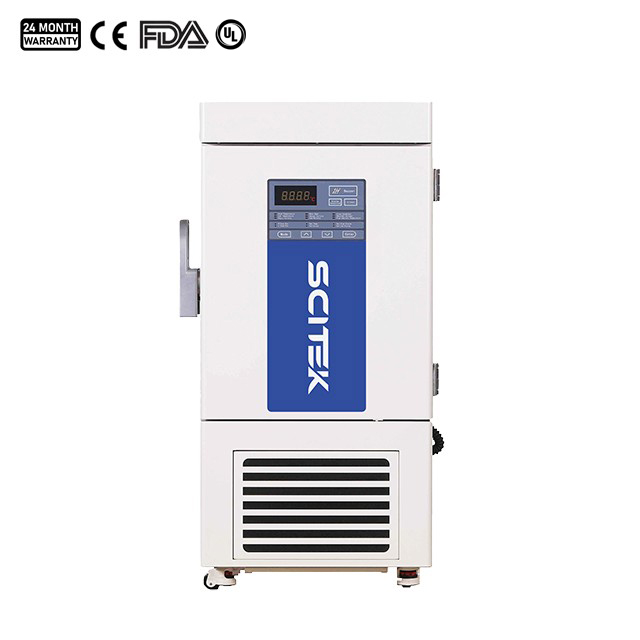

This ultra low temperature freezer, capable of reaching -86°C, offers an efficient and dependable solution for storing samples that need to be kept at exceptionally low temperatures for long durations. Utilizing advanced refrigeration technology and highly efficient insulation materials, it guarantees a uniform and stable internal temperature. Additionally, this freezer features a spacious storage capacity to accommodate various sample sizes and types.
-86℃ Ultra Cold Freezer Feature:
- High-performance V.I.P. (Vacuum Insulation Panel) insulation panels are employed to minimize heat gain within the cabinet and enhance temperature stability.
- An efficient cooling system operates a mixed refrigeration system, ensuring rapid and stable cooling while being energy-saving and easy to maintain.

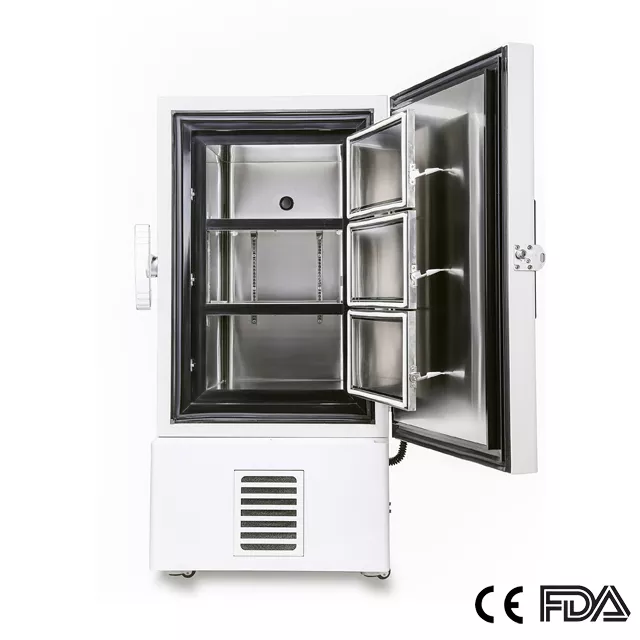

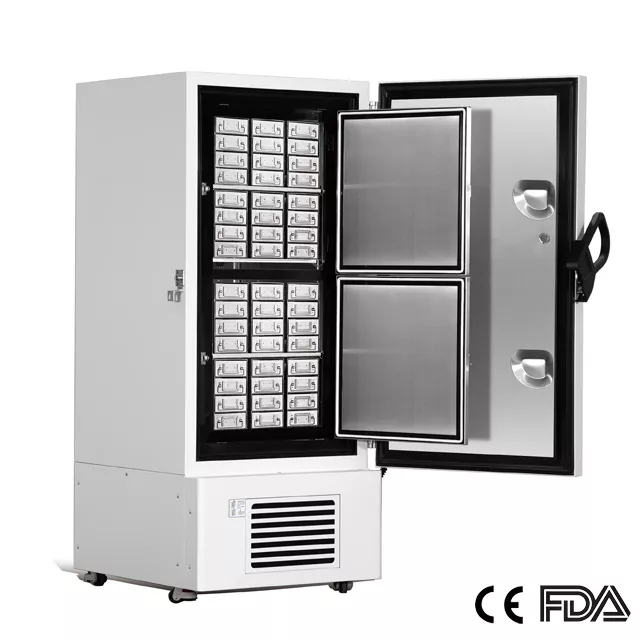

- The inner door features a unique design that separates storage compartments, reducing frost buildup inside the chamber.
- The upright door with a limit hinge prevents collisions when opened.
- Lockable universal caster wheels facilitate easy movement, and the removable inner door allows for user-friendly defrosting and cleaning.
-86℃ Ultra Cold Freezer Specifications:
Model |
UFZ-86V60E |
UFZ-86V180E |
UFZ-86V340E |
UFZ-86V410E |
UFZ-86V590E |
UFZ-86V730E |
UFZ-86V840E |
Capacity (L) |
58 |
188 |
340 |
408 |
588 |
728 |
838 |
Size(WxDxH)(mm) |
Internal |
330x453x410 |
465x465x830 |
488x607x1140 |
606x575x1180 |
606x738x1310 |
963x571x1350 |
894x718x1310 |
External |
635x757x1212 |
830x810x1607 |
854x1006x1907 |
872x1028x1945 |
872x1192x1994 |
1229x1012x1994 |
1160x1172x1994 |
Temperature |
Range (℃) at RT.10~32℃ |
-40~-86 |
Sensor |
PTC |
Controller |
Microprocessor |
Cooling System |
Refrigerant |
R4001 (CFC Free) |
Defrost |
Manual |
Compressor (Qty) |
SECOP/1 |
CUBIGEL/1 |
SECOP/1 |
SECOP/1 |
SECOP/2 |
SECOP/2 |
SECOP/2 |
Display |
Digital display |
Audible & Visible Alarm |
High/Low temperature, High ambient temperature, Sensor error, Abnormal voltage, Low battery, Door ajar, 72h Power failure backup system(alarm) |
Material |
Internal |
Stainless steel, grade 304 |
External |
Electro-galvanized steel with antimicrobial powder coating |
Inner Door |
Stainless steel, grade 304 |
Accessories |
Standard |
USB port, Casters, Remote alarm port, 25 Test hole |
Optional |
Data logger, Back up system (CO₂/LN₂) |
Chart Recorder |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
Shelves / Drawers (Qty) |
Shelf/1 |
Shelves/2 |
Shelves/3 |
Shelves/3 |
Shelves/3 |
Shelves/3 |
Shelves/3 |
Optional Frozen Racks (Qty) |
Racks |
2(6×2) |
9(4×3) |
12(4×4) |
8(5×4)+8(4×4) |
16(5×5) |
18(5×4)+6(6×4) |
24(5×5) |
Boxes (2 Inches) |
24 |
108 |
192 |
288 |
400 |
504 |
600 |
Samples (2ml) |
2400 |
10800 |
19200 |
28800 |
40000 |
50400 |
60000 |
Sound Emission (dB) |
50 |
52 |
52 |
50 |
53 |
50 |
55 |
Electricity |
Voltage / Frequency |
AC110/220V±10%, 50/60Hz |
Consumption |
6.09KWh/24h |
11.17KWh/24h |
13.09KWh/24h |
12.82KWh/24h |
16.02KWh/24h |
23.44KWh/24h |
19.98KWh/24h |
N.W./G.W. (Kg) |
115/155 |
207/222 |
268/288 |
268/293 |
303/332 |
374/394 |
391/424 |
Shipping Size(WxDxH) (mm) |
730x845x1400 |
915x928x1818 |
935x1070x2128 |
954x955x2094 |
970x1138x2185 |
1320x970x2185 |
1270x1100x2185 |
Advantages of -86℃ Ultra Cold Freezer:
- Safety password-protected control panel prevents unauthorized modifications to the system.
- An audible buzzer and visible flashing alarm system alert users to various issues, including high/low temperature, sensor errors, thermostat failures, power failures, door switches, ambient temperature changes, condenser failures, filter checks, voltage abnormalities, and low battery levels.
- Door lock ensures the security of stored items.
- The upright door, equipped with a limit hinge, prevents collisions when opened.
- Lockable universal caster wheels allow for easy mobility.
- A removable inner door facilitates user-friendly defrosting and cleaning.
Application of -86℃ Ultra Cold Freezer:
- Food industry: for storing high-value seafood, meat and other perishable food products to extend shelf life.
- Laboratory research: Provides a reliable low-temperature environment for sample storage in molecular biology, cytology and other scientific research.
- Industrial applications: to provide the required ultra-low-temperature environment for the cryogenic testing of electronic components and specialized materials.
-86℃ Ultra Cold Freezer Packing:
Adopting high-strength corrugated cardboard and shockproof foam padding to ensure that the product is not damaged. The package is printed with obvious operating instructions and warning signs and easy to handle and install. Packaging materials are all environmentally friendly recyclable materials, in line with international environmental standards, to reduce environmental pollution.
