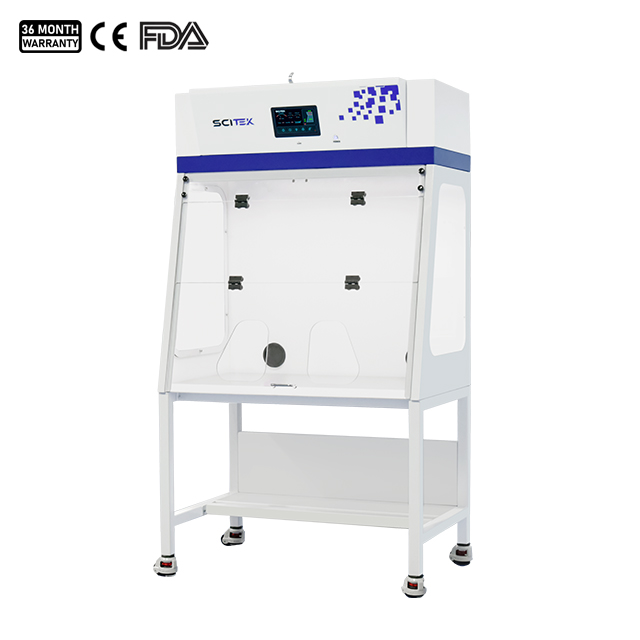

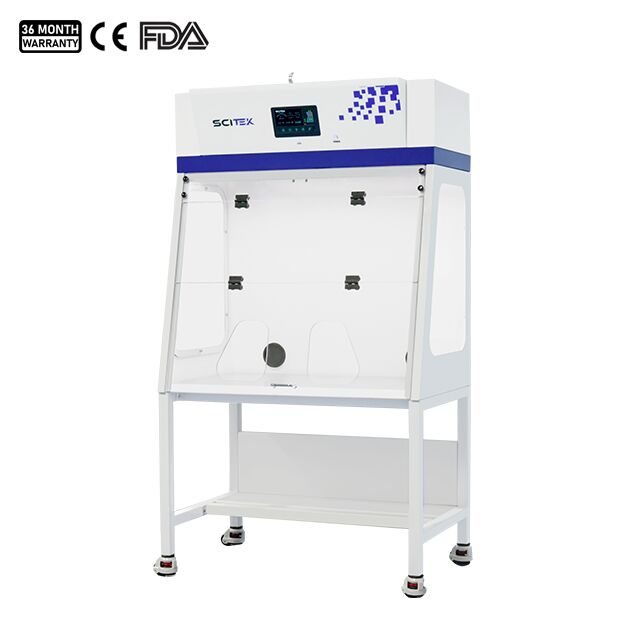

Ductless Fume Hood Features:

Equipped with an active carbon filter to effectively capture harmful gases, particles, dust, and bacteria, ensuring lab cleanliness and protecting both the operator and environment.
Features a 7-inch LCD touchscreen displaying air velocity, VOC concentration, temperature, humidity, and filter lifetime for optimal human-machine interaction.
Real-time monitoring and alarm system tracks air velocity and filter saturation, alerting the user to any abnormalities to enhance operational safety.
Low-noise design with a high-quality DC centrifugal blower, providing a quiet workspace without sacrificing performance.
User-friendly design with a three-sided transparent acrylic window for multi-angle observation.
Optional LED lighting upgrade with a Ra98 Color Rendering Index for accurate color reproduction and RG0 blue light protection for operator safety.

Ductless Fume Hood Specifications:

Model		FMH-1000DL	FMH-1200DL
External Size (WxDxH)(mm)		1000×620×1800	1200×620×1800
Internal Size (WxDxH)(mm)		980×540×775	1180×540×775
Max.Opening		650mm
Operation Surface Height		690mm
Control System		7-inch color touch screen, real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc
Airflow System	Airflow Velocity	0.4-0.6m/s, speed adjustable
Air filtration System	Filter	1pcs Pre-filter, Polyester fiber, washable
Air filtration System	Filter	1pcs Active Carbon filter
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 Stainless Steel, Max.loading of worksurface: 70kg
	Front Window	Manual acrylic window
Electrical System	LED Lamp	16W×2
	Blower	DC Centrifugal blower, adjustable speed, low noise
	Consumption	60W	120W
	Power Supply	220V±10%, 50/60HZ; 110V±10%, 60Hz
Sound Emission		≤50dB(A)
Standard Accessory		1. Base Stand; 2. Active Carbon Filter×1; 3. Pre-Filterr×1; 4. LED Lamp×2
Optional Accessory		1. Base Cabinet; 2. HEPA Filter; 3. Chemical filter; 4. Upgraded LED Lamp
Net Weight		96kg	113kg
Gross Weight		138kg	160kg
Shipping Size (WxDxH)(mm)		1160×840×1320	1360×840×1320
Shipping Volume		1.3m³	1.5m³

Environment Condition:

1. Room temperature: 20-35℃;

2. Relative humidity 30-85%;

3. The number of air changes per hour in the laboratory is not less than 6 times;

4. Voltage fluctuation should be controlled within ±10%.
