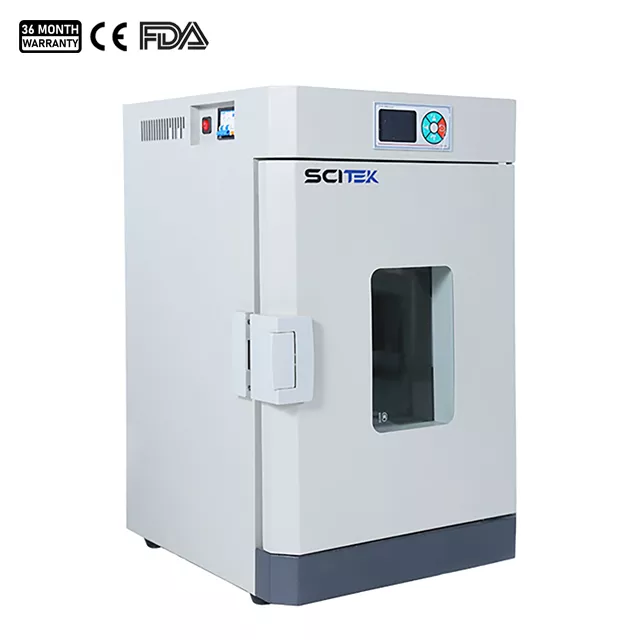

Drying Oven/Incubator (Double Use)

The DOI series drying ovens ensures fast, uniform drying, providing a safe and ideal heating and drying solution for research, clinical or industrial needs.

  • Model : DOI-30; DOI-50; DOI-70; DOI-140; DOI-240
  • Capacity(L) : 30; 50; 70; 140; 240
  • Circulation : Forced air convection
  • Fluctuation(℃) : ±0.5
  • Uniformity(℃) : 25%
  • External Size(WxDxH)(mm) : 490x520x690; 770x640x650; 540x550x870; 600x740x920; 650x800x1130

Share the product

Category:

The drying oven/incubator has a large interior with an adjustable temperature and humidity control system inside.Drying ovens come with removable shelves or trays inside to hold sample containers. A digital display allows the user to visually monitor and adjust the temperature, humidity and run time. The housing is made of high temperature resistant material to ensure stable temperature control and safe operation.

Drying Oven Feature:

  1. The DOI Series Drying Oven combines two functions, reducing the number of devices needed in the lab.
  2. Wide range of temperature and humidity for a variety of experimental needs
  3. Easy to operate with an easy-to-understand control interface

Drying Oven Specifications:

Model DOI-30 DOI-50 DOI-70 DOI-140 DOI-240
Capacity(L) 30 50 70 140 240
Circulation Forced air convection
Size (WxDxH)(mm) Internal 340x325x290 420x350x350 400x375x470 450x557x520 500x615x720
External 490x520x690 770x640x650 540x550x870 600x740x920 650x800x1130
Temperature Range(℃) Oven: 80-200
Incubator: RT+5-80
Fluctuation (℃) ±0.5
Resolution (℃) 0.1
Uniformity (℃) 25%
Sensor PT100
Controller PID
Display LCD
Timer (min) 1 – 9999
Material Internal Stainless steel
External Electro-galvanized steel with antimicrobial powder coating
Shelves 2
Test Hole (mm) Optional φ25, 50, 80
Safety Device Leakage protector/Over- temperature alarm
Electricity Voltage/Frequency 220/50V/Hz
Consumption(W) 550 850 1100 1500 2050
N. W./G.W.(kg) 40/55 42/45 55/75 70/85 85/110
Shipping Size (WxDxH)(mm) 620x630x830 810x640x600 670x660x1040 730x860x1080 780x920x1270
Optional 1. Independent temperature limiting controller
2. Intelligent LCD procedure temperature controller(Optional USB, RS485/232 and printer)

Advantages of Drying Oven:

  1. Improves temperature homogeneity and ventilation efficiency by using a large impeller fan and high-quality fan.
  2. Running function: Timing and fixed value running; when the running time is up, a buzzer alert and the word “END” appear on the screen.
  3. Shelves that may be adjusted, with a 30 mm minimum spacing.
  4. An integrated viewing window allows you to quickly and easily see what’s within the chamber.

Applications of Drying Oven:

  1. Can be used to quickly dry a variety of samples to the desired level, e.g. chemical reagents, biological samples, etc.
  2. Used for culturing microorganisms, cells and tissues, providing a constant temperature and humidity environment to promote their growth and reproduction.
  3. Widely used in laboratories in biology, chemistry, medicine and other fields

WHY SCITEK

  1. 36 Months Limited Warranty
  2. CE & FDA Standards
  3. 1-2 Days Handling and 7-30 Days Shipping

FAQ

What is a drying oven in a laboratory?

A drying oven in a laboratory is a piece of equipment designed to remove moisture from samples or materials by subjecting them to controlled heat.

What is the basic principle of drying oven?

The basic principle of a drying oven is to use controlled heat to remove moisture from samples or materials placed inside the oven. By increasing the temperature within the oven chamber, the water molecules in the samples gain energy, causing them to evaporate and escape into the surrounding air. This process continues until the moisture content of the samples reaches the desired level, effectively drying them. The oven’s ventilation system helps to remove the moist air and maintain a dry environment within the chamber.
