SK-D series double-layer shaker is suitable for centralised constant temperature and cluster oscillation in specific constant temperature room. It not only provides a high level of oscillation efficiency for mass production operations and biopharmaceutical research applications for pilot tests and large-volume strain screening, but also has a strong economy and practicality.
Double-layer Shaker Features:
- PID microprocessor control provides simple push-button operation and easy programming of time and speed.
- Single shaft drive mechanism for quiet operation and durability.
- Advanced finishing technology ensures the stability and reliability of mechanical operation.
- The key parts of the movement are made of expensive chrome alloy materials, high-quality cast iron and original imported bearings.
- Automatically remembers the last set speed and slowly accelerates to the last running speed after switching on.
Double-layer Shaker Specifications:
Model |

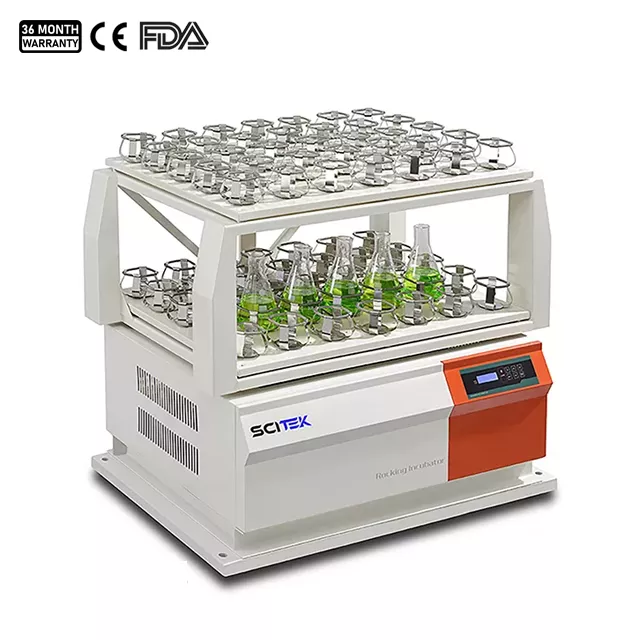

SK-D3112 |

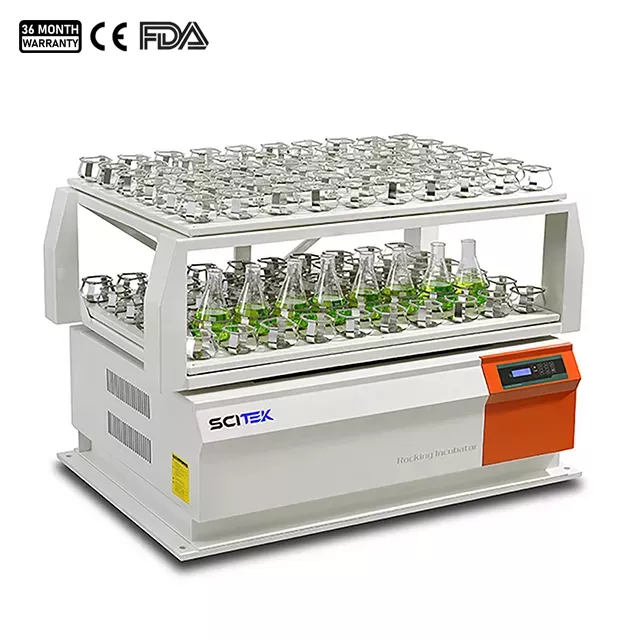

SK-D3222 |
Control Mode |
P. I. D (Microcomputer scans the micro-processing chip) |
Display Mode |
LCD (Large liquid crystal screen) |
Circulation Mode |
Natural convection |
Oscillation Mode |
Gyratory |
Drive Mode |
Balance drive by single shaft |
Balance drive by single shaft |
Ambient Temperature Requirement (℃) |
15-35 |
Curve Programming Settings |
Programming settings of repetition, steps and eight-section curves |
Safety Functions |
Automatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage |
Additional Functions |
Monitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or over-current protector |
Speed Range (r/min) |
30-300 |
Speed Accuracy (r/min) |
±1 |
Amplitude of Rocking Plate (mm) |
50 |
Timing Range (min) |
0-999.59 |
Size of Rocking Plate (mm) |
840×620 |
1108×740 |
Number of Rocking Plates |
2 |
2 |
Power (kW) |
0.25 |
0.25 |
Power Supply |
AC 200-240V 50-60Hz |
Material of Outer Box |
High-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets |
Sizes(W×D×H)(mm) |
910×680×820 |
1270×810×820 |
Shipping Size (W×D×H)(mm) |
1080×800×1030 |
1350×920×1090 |
N.W./G.W. (kg) |
250/375 |
400/535 |
Specifications |
The number of rocking plates in single configuration is highest |
Erlenmeyer Flask |
250ml |
108 |
192 |
500ml |
70 |
120 |
1000ml |
48 |
80 |
Advantages of Double-layer Shaker:
- The slow start line prevents sudden start and splashing, effectively guaranteeing the safety of the reagent.
- Motor overheating, temperature out of control automatic power-off protection device.
- High precision frequency control system, frequency accuracy reaches ±1rpm.
- Advanced large torque motor, maintenance-free, to ensure continuous work.
- Electrostatic colour spraying box body is beautiful and rust-proof, very rich in aesthetic design concept.
- The cabinet is made of high quality and high strength cold rolled steel plate, medium plate, channel steel, angle steel and cast iron.

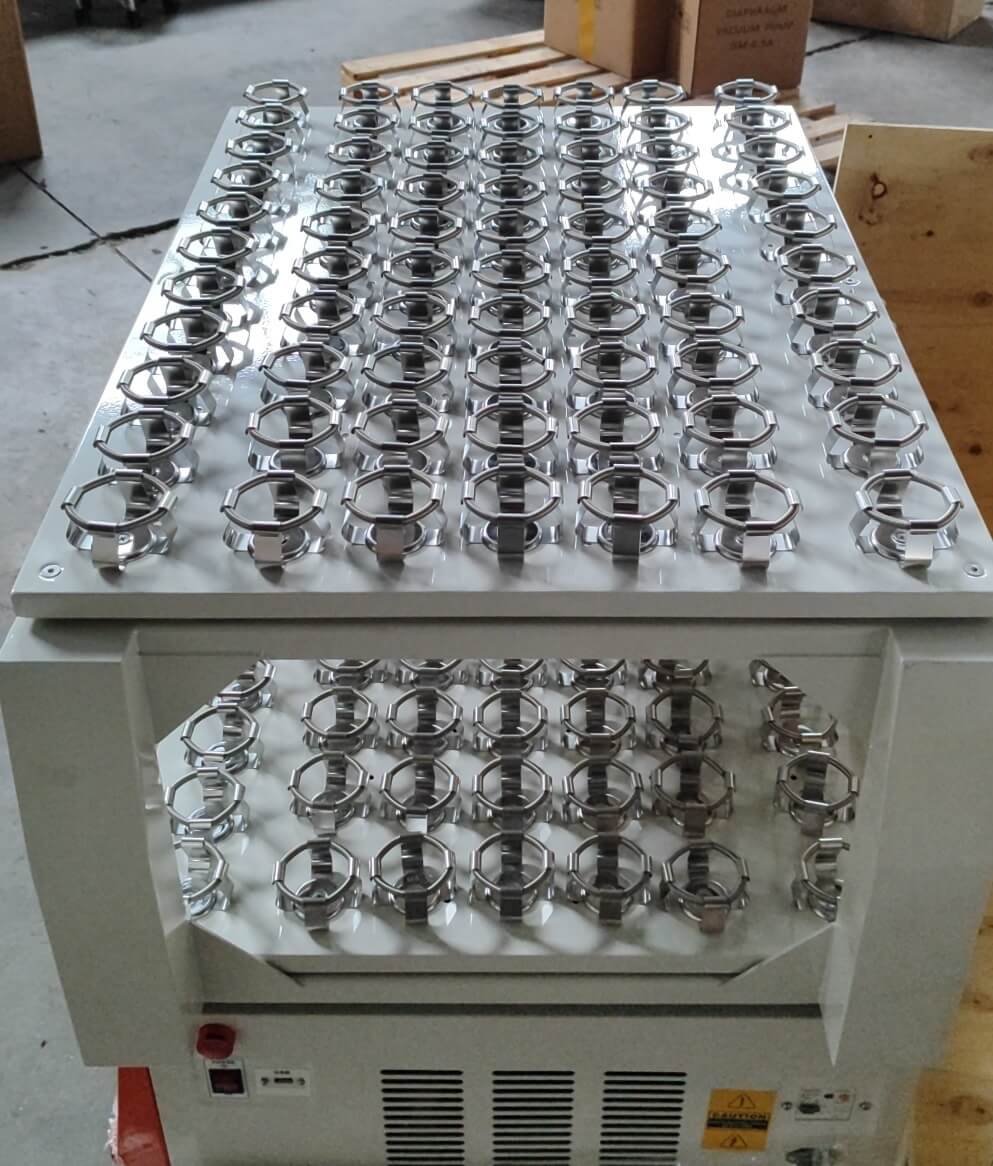

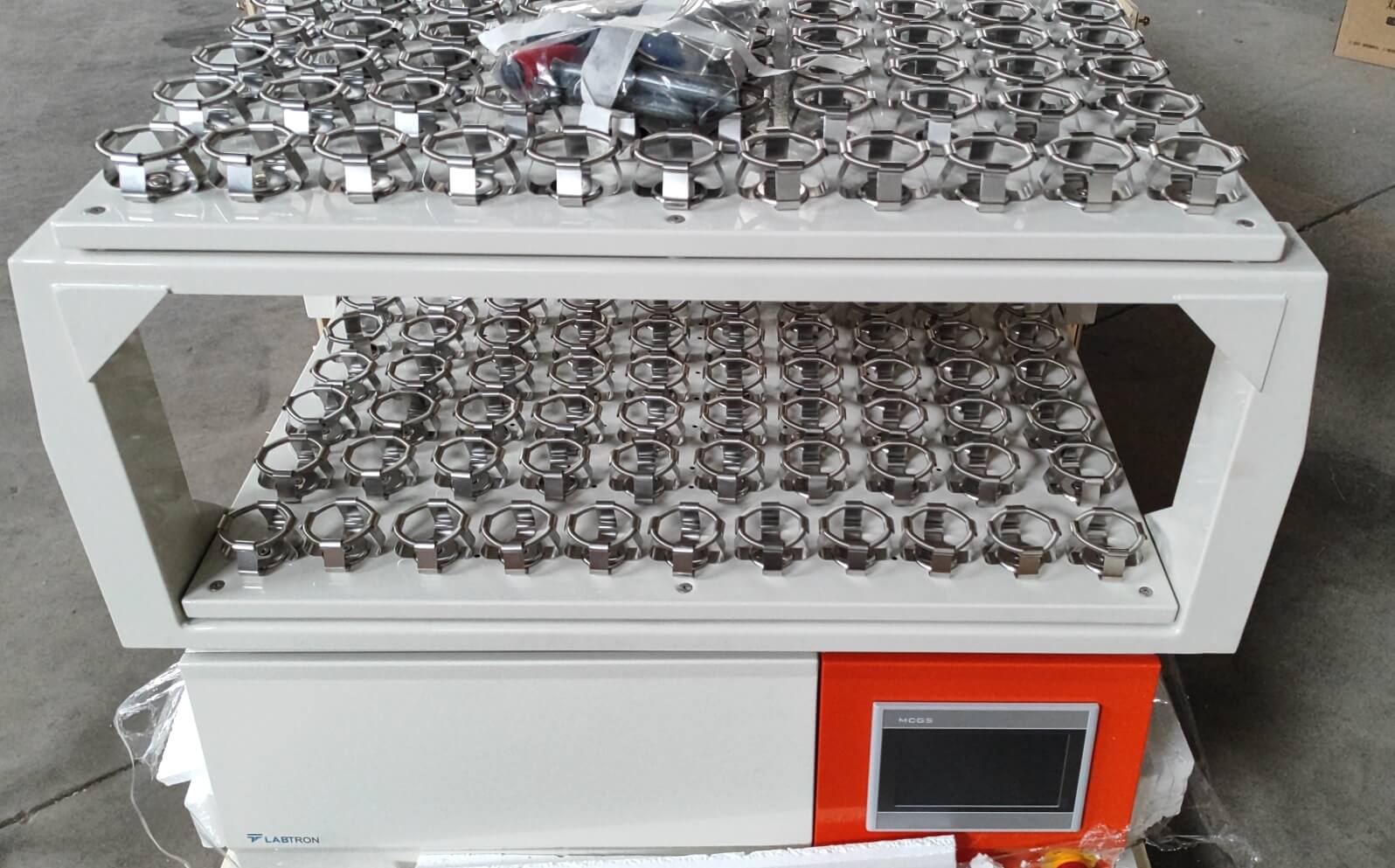

Details of Double-layer Shaker:
