- Model : ICB-70BS; ICB-70BSI
- Capacity : 70L
- Circulation Mode : Forced convection
- Shaking Mode : Convolution
- Temperature Range(℃) : RT+5~65℃; 4~65℃
- Size(WxDxH)(mm) : 750x710x520

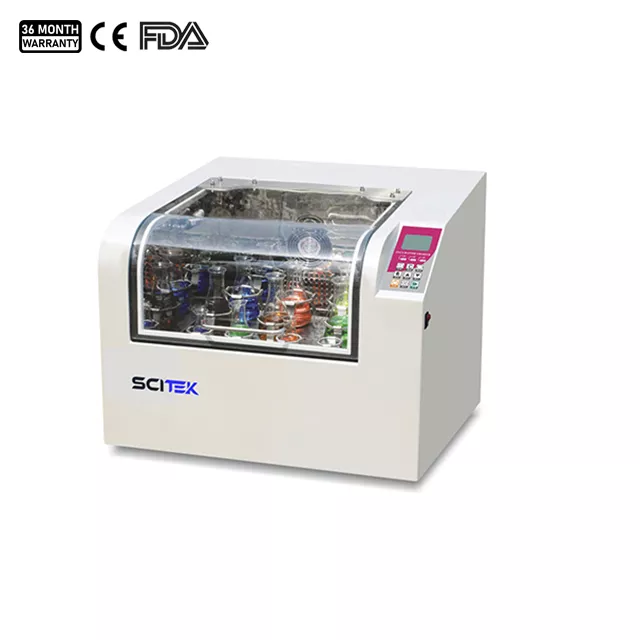

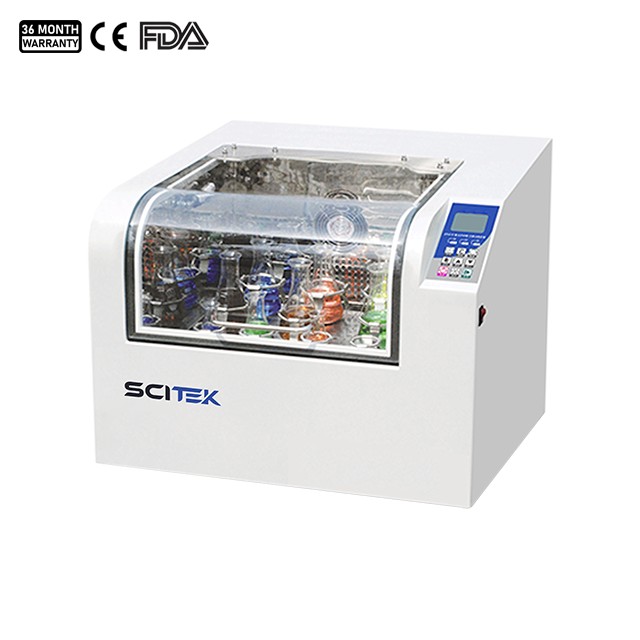

Benchtop Constant Temperature Shaking Incubator
This benchtop constant temperature shaking incubator is widely used in experiments with high requirements for temperature, oscillation frequency and amplitude, such as bacterial culture, fermentation, hybridisation, biochemical reactions and cell tissue research. It plays an important role in the fields of medicine, biology, molecular science, pharmaceuticals, food and environmental protection, helping researchers to carry out experimental studies and production applications.
Benchtop Constant Temperature Shaking Incubator Feature:
- Bright illumination on an LCD display
- Function of automatic defrosting
- Extremely accurate temperature and speed control
- Protection against open doors
- Consolidated and safeguarded operational parameters
- Encrypted and locked operational parameters function
Benchtop Constant Temperature Shaking Incubator Specifications:
| Model | ICB-70BS | ICB-70BSI |
| Display | LCD display | |
| Controller | PID | |
| Circulation Mode | Forced convection | |
| Shaking Mode | Convolution | |
| Drive Mode | Unidimensional drive | |
| Capacity(L) | 70L | |
| Temperature Range(℃) | RT+5~65℃ | 4~65℃ |
| Temperature Accuracy(℃) | ±0.1℃ | |
| Temperature Uniformity (℃) | ±0.5℃(at 37℃) | |
| Cyclotron Frequency Range (rpm/min) | 20-450(r/min)(To do static culture) | |
| Cyclotron Frequency Sensitivity (rpm) | ±1 | |
| Orbit Range (mm) | Φ26 | |
| Refrigerant | / | Environmentally friendly refrigerant |
| Timing Range (h/min) | 0-9999h/min | |
| Standard Capacity | Clamp flask: | Clamp flask: |
| 50mlx4+100mlx4 + 250mlx3+500mlx3 | 50mlx5+100mlx5 + 250mlx4+500mlx3 | |
| Max. Capacity | Clamp flask:100ml x23 or 250ml x15 or 500ml x9 or 1000ml x6 or 2000ml x4 | |
| Auxiliary Functions | Ultra-low speed start, Adjustable start speed, Overspeed auto-prtection, Automatically stop when opening the door, Monitoring timer, Parameters Storage, Encryption parameters, Electricity incoming recovery, Refrigeration unit overload protection, Sound and light alarm when upper and lower overtemperature | |
| External and Internal Material | Stainless steel | |
| Power Supply | AC220V±10%, 50/60Hz; 110V, 60Hz | |
| Consumption | 550W | 650W |
| Shaking Plate Size(mm) | 450×410 | |
| Size(W×D×H)(mm) | 750x710x520 | |
| Shipping Size (W×D×H)(mm) | 900x895x725 | |
| N.W./G.W. (kg) | 75/125 | 110/145 |
Advantages of Benchtop Constant Temperature Shaking Incubator:
- Continuously running or timing
- Unique slow-start design, unique drive system and advantaged air duct design
- High quality servo motor
- Multi-steps rotate speed, temperature and time control systems
- Slow accelerate and decelerate design
- Automatic analyzing, listing table, charting and printing on downloaded dates.
Applications of Benchtop Constant Temperature Shaking Incubator:
- Cell culture: Cultivate cell lines, primary cells, etc., providing stable temperature and oscillation conditions.
- Biochemical reaction: used for enzyme reaction, PCR amplification and other biochemical experiments, ensuring uniform mixing and temperature control of the reaction system.
- Pathology experiments: for tissue culture, virus culture and other medical experiments, simulating in vivo temperature and oscillation conditions.
Constant Temperature Shaking Incubator Packing:
Our shaking incubators come in sturdy packaging to ensure that the equipment is safe and undamaged during transport. Packaging materials are carefully selected to be shock, dust and moisture resistant to ensure that the equipment arrives in perfect condition.
WHY SCITEK
- 36 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
