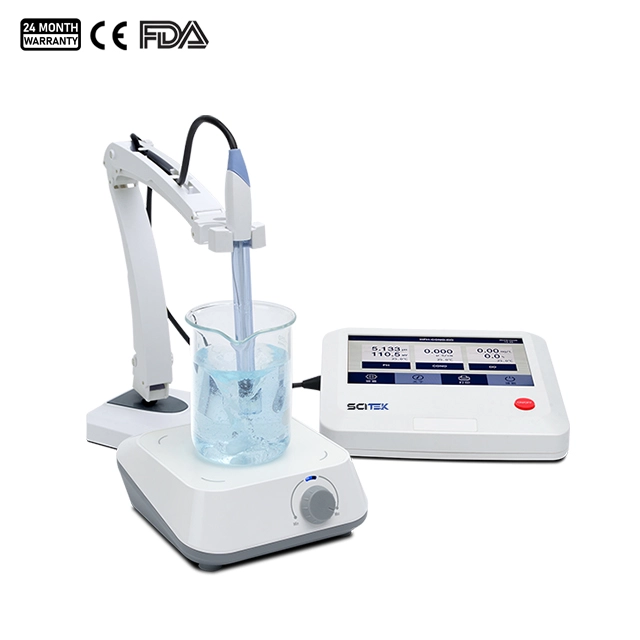

Benchtop Conductivity/Dissolved Oxygen Meter Features:
- It ensures fast response, high accuracy, and stable reading display, catering to various measurement needs with reliability.
- Automatic calibration capabilities streamline the process by recognizing standard buffer solutions, while self-diagnosis enhances operational efficiency.
- Calibration points include conductivity at 1 point and Dissolved Oxygen (DO) calibration at 100% oxygen or zero oxygen.
- Each kit includes a plastic ATC Cond electrode, a polarographic DO probe, and three replaceable sensor caps, all designed to withstand dust and spills with an IP54 rating.
Benchtop Conductivity/Dissolved Oxygen Meter Specifications:
Model |
CON-DOB100 |
Conductivity |
Range |
0~200.0mS/cm, auto divided by range of:
0~19.999μS/cm; 20.0~199.9μS/cm;
200~1999μS/cm; 2.00~19.99mS/cm; 20.00~199.9mS/cm;
TDS: 0 -100.0g/L
Resistivity: 5.00Ω·cm-100.0MΩ·cm
Salinity: 0-100.0 ppt |
Resolution |
0.001 |
Accuracy |
±1.0 % FS±1digit |
DO |
Range |
0-20.00 mg/L(ppm), 0-200.0 % |
Accuracy/Resolution |
± 0.30 mg/L; 0.01 or 0.1 mg/L |
ATC Range |
(0 – 50)℃ automatically |
Salinity Compensation |
0~45 ppt manual |
Barometric Compensation |
0~200 kPa automatically |
Temperature |
Range |
0-100°C |
Resolution/ |
0.1℃; ±0.2℃ |
Accuracy |
Data Storage |
450 groups |
Data Output |
1. USB to Flash Disk
2. Wireless connection to printer (the printer is optional) |
Power Supply |
DC12V |
Packing Including |
1. CON-DOB100 Meter
2. CON201T Plastic ATC Cond probe, K=1.0
3. Standard Cond solution: 50mL: 84μS/1413μS/ 12.88mS/cm, one for each;
4. DO01-2M Polarographic DO probe, cable length: 2m
5. DOS-01 Membrane refill solution: 30mL, 1pc
6. DOSC Sensor caps: 3pcs/group, 1pkg
7. F01 Flexible probe Holder: 1pc
8. A01 Power adaptor: 1pc
|
Shipping Size (WxDxH)(mm) |
430x600x130 |
N.W. / G.W. (kg) |
1.8 / 2.3 |
Applications of Benchtop Conductivity/Dissolved Oxygen Meter:
The benchtop conductivity/dissolved oxygen meter is utilized in laboratory settings for precise measurement and analysis of conductivity and dissolved oxygen levels in various solutions. It finds applications across industries such as environmental monitoring, water quality analysis, pharmaceutical research, and food and beverage production.
