This is a stackable CO2 constant temperature shaker incubator can provide constant temperature, CO2 concentration and shaking function, which will help cell growth and successful experiments.
| Model | ICB-170SCT | ICB-210SCT | ICB-285SCT | |
|---|---|---|---|---|
| Temperature Control |
Temperature Range | 4°C-60°C (Ambient temperature -18°C, minimum 4°C) | ||
| Temperature Uniformity | ±0.5°C (At 37°C) | |||
| Temperature Accuracy | ±0.1℃ | |||
| Temperature Recovery Time |
≤±10 mins | |||
| Ambient Temperature Range |
5℃-35℃ | |||
| Humidification Mode | Natural humidification | |||
| CO2 Concentration Control |
CO2 Control Scope | 0-20% | ||
| CO2 Control Accuracy | 0.1% | |||
| CO2 Stability | ±0.1% | |||
| CO2 Accuracy | ±0.3% | |||
| CO2 Sensor | Imported infrared ray (IR) sensor | |||
| Sterilization Mode | Ultraviolet sterilization | |||
| Concentration Recovery Time |
≤5mins, door opened for 30s | |||
| Speed Control | Rotation Frequency | 0~300rpm | ||
| Rotation Accuracy | ±1rpm | |||
| Vibration Range | 25mm (50mm) | |||
| Technical Specification | Volume | 170L | 208L | 282L |
| Rocker Size(mm) | 480×440 | 780×500 | 920×540 | |
| Maximum Capacity | 250mlx20; 500mlx16; 1000mlx9; 2000mlx5; 5000mlx4 and a static culture shelf |
250mlx40; 500mlx28; 1000mlx15; 2000mlx12; | 250mlx60; 500mlx40;
1000mIx24; 2000mlx15; 5000mlx7; |
|
| Number of Rockers | 1PC | 1PC | 1PC | |
| Heating Power | 800W | 1000W | 1300W | |
| Refrigeration Power | 150W | 195W | 195W | |
| Motor Power | 250W | 250W | 250W | |
| Light | 8W | 8W | 8W | |
| UV Lamp | 8W | 8W | 8W | |
| Power Supply | 220V, 50/60Hz; 110V, 60Hz | |||
| Maximum Stacking | 2 sets | 3 sets | 3 sets | |
| Internal Size (WxDxH)(mm) | 580x520x565 | 850x570x430 | 1030x595x460 | |
| External Size (W×D×H) (mm) | 715x900x810 | 1200x797x640 | 1410x830x660 | |
| Shipping Size (W×D×H)(mm) | 1020x830x1090 | 1330x1000x930 | 1550x1020x1180 | |
| N.W./G.W. (kg) | 218/268 | 324/390 | 431/520 | |
| Technical Features | Display Mode | 7-inch true color touch screen (switchable in Chinese and English) | ||
| Control Mode | P.I.D microcomputer environment scanning microprocessor chip control | |||
| Cyclic Mode | Forced circulation convection type | |||
| Oscillation Mode | Rotating/Reciprocating switching oscillatory type | Rotary oscillatory type | ||
| Driving Mode | Single-axis balanced drive | |||
| Rocker | / | Free drawing type | ||
| Opening Mode | Side door | Bottom two sets: Pull-down Top: Flip-up | ||
| HEPA Filter | The intake gas is sterilized by a 0.2um online filter | |||
| Bearing | Imported double-row bearings | |||
| Compressor | High quality inverter compressor (Energy saving by 30%) | |||
| Motor | High-quality servo motor | |||
| Rotating Shaft Material | Quenching and tempering treatment of 45# carbon steel and 220-250HBW | |||
| Inner Cavity Material | 304 high-quality imported fully stainless steel plate | |||
| Main Material | High-quality and high-strength OT cast iron, channel steel, angle steel and high-quality cold-rolled steel plate |
|||
| Bottle Gripping Plate Material |
High-quality alloy aluminum, oxidation surface treatment | |||
| Bottle Gripping Material |
Adopt stainless steel mirror material, with an elasticity of 360 degrees and a hardness of 420 degrees, not prone to deformation. |
|||
| Optional Accessories | Bracket (mm) | 620x800x350 | 1070x720x350 | 1280x720x350 |
| Selective Adhesive Plate |
The carrying capacity will increase by about 10% | |||
| Active Humidification | Steam humidification | |||
| Shade | Left-right push-pull type | |||
| Light Culture | Simulated day and night lighting environment | |||
| Print Function | Embedded built-in micro printer | |||
| Interface | USB data storage and export | |||
| Remote Communication Monitoring |
Computer monitoring | |||
| Phone Monitoring | Phone APP remote monitoring | |||
CO2 shaker incubator package

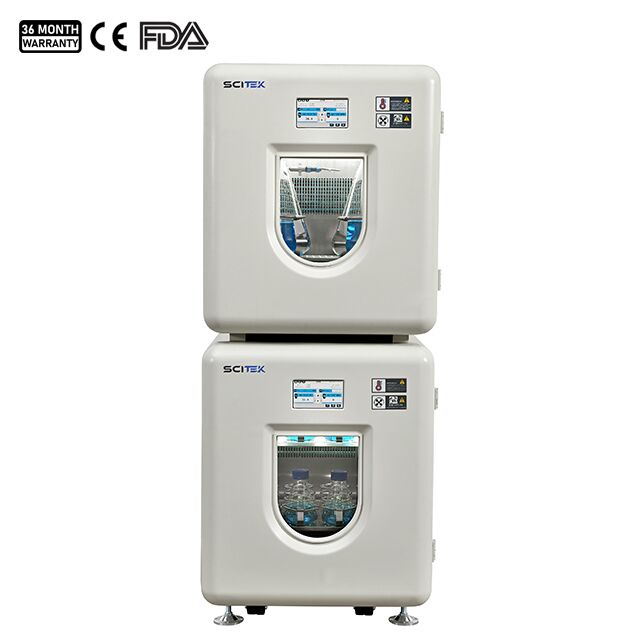

ICB-170SCT shaker incubator package
Each shaker incubator undergoes meticulous assembly steps without any interruptions:
A: We are the manufacturer of shaker incubators.
A: The standard delivery time is typically 10-15 days.
A: You can select the model based on the maximum capacity, shaking speed, and temperature range required for your samples.
A: Quality control is a priority for us throughout the manufacturing process. Our factory holds certifications such as SGS and CE to ensure compliance with international quality standards.
A: Training: Our technician can provide on-site setup and training for the shaking incubator, with the customer covering travel expenses. Alternatively, customers can send their technicians to our facility for training. We also offer training materials for reference. After-sales service: We offer free technical support via phone, WhatsApp, or email. Additionally, we provide lifelong maintenance after the one-year warranty period.
