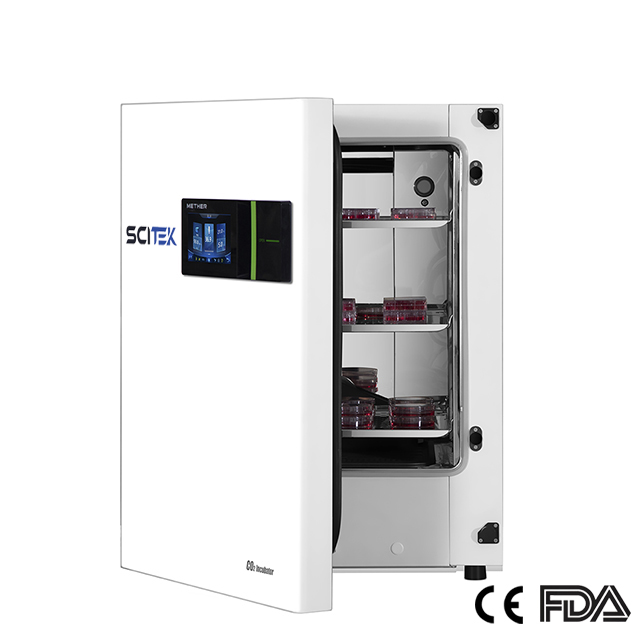

CO2 Incubator 170L

As a general laboratory equipment applied in life science cell culture and research, ICB-170 gas jacketed CO₂ incubator is widely used in the fields of biopharmaceuticals, bacterial culture, cell and gene therapy, scientific research and so on. Whether it is a simple biological experiment or pharmaceutical production process, CO₂ incubator has a vital role.

CO₂ Incubator Feature:

1. LCD touch screen convenient and intuitive operation.
2. The inner door sampling hole can be directly measured parameters such as temperature, CO concentration.
3. Glass inner door is convenient for observing the sample cells inside the chamber during incubation.
4. Open the door for 30s, 5 minutes after the outer door is closed, the cleanliness inside the chamber will be restored to ISO5(100) level;
5. 3L water storage capacity of the built-in integrated sink;
6. Stainless steel electropolished liner, smooth interior walls, large rounded corners design, easy to clean;
7. IR sensor, sterilisation without disassembly; reliable gas control, single beam dual wavelength without calibration.

CO₂ Incubator Specifications:

Advantages of CO₂ Incubator:

1. Duct system:

• Forced convection design brings faster recovery of temperature, humidity and gas concentration.
• Breeze circulation can bring humid air into all areas of the chamber, so that all culture environments are in a reasonable humidity range.
• The temperature and gas sensors are placed inside the chamber to ensure that the detected temperature and gas concentration samples are in the same environment.
• The wind speed is automatically adjusted for more efficient and precise control of temperature, humidity, carbon dioxide concentration and cleanliness.

2. The CO2 incubator adopts multiple PT100 sensors with advanced PID algorithm to precisely control the temperature inside the incubator.

3. Independent area humidification and inflation design, effectively prevent local humidity and gas concentration is too high.

4. Direct heating gas jacket type

• Ensure rapid temperature recovery in the sample chamber and reduce ambient temperature interference.
• Each temperature control zone is intelligently controlled by microprocessor, which ensures the temperature uniformity and minimum fluctuation inside the chamber.

5. Safety

• Operation record support history query
• Temperature, ambient temperature, gas concentration over the range of the automatic alarm
• Low water level, lack of water, the door is not tightly closed alarm

CO₂ Incubator Display:

The design is simple and elegant with an intuitive control panel and LED display. Users can easily adjust the temperature, humidity and CO2 concentration and monitor the parameters in real time.

High-quality insulation materials and advanced temperature control technology ensure stable internal temperatures.

For connecting to an external CO2 gas source to ensure a stable CO2 concentration inside the chamber.

WHY SCITEK

1. 36 Months Limited Warranty
2. CE & FDA European Standards
3. 1-2 Days Handling and 7-30 Days Shipping
