The climate incubator is an advanced laboratory equipment designed to simulate environments under different climatic conditions. The incubator has precise temperature control and can simulate a wide range of climate parameters such as humidity, light and gas composition to meet a variety of experimental and research needs.
Climate Incubator Feature:

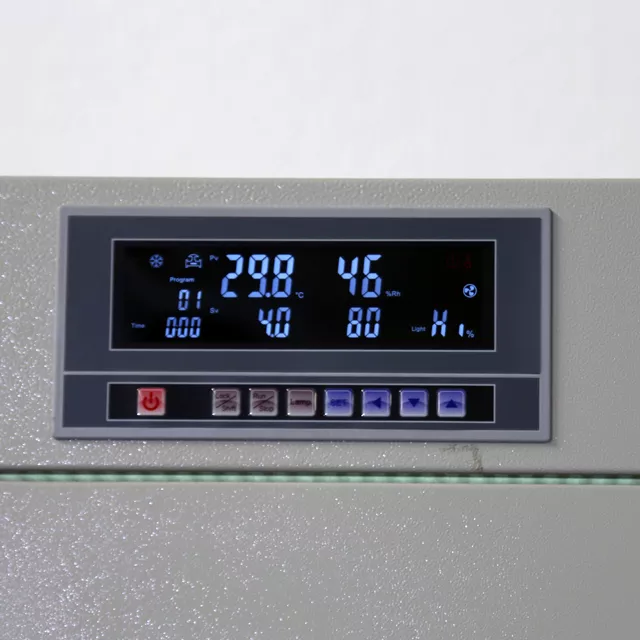

- A large-screen LCD panel makes monitoring simple.
- For effective defrosting, a three-stage electric heating program control is used.
- For the best airflow, use a bottom vertical air supply circulation system and a back suction system.
- Round-holed shelves that have been laser- hollowed out for better temperature consistency and ventilation.
- movable shelves with a 30 mm minimum gap between them for adaptable storage.
Climate Incubator Specifications:
Model |
ICB-250C |
ICB-350C |
Capacity (L) |
250 |
350 |
Circulation Mode |
Forced convection |
Size(WxDxH)(mm) |
Internal |
555x450x1100 |
550x550x1200 |
External |
680x680x1760 |
780x780x1900 |
Temperature |
Range (℃) |
With lighting: 10~60; Without lighting: 4~60 |
Fluctuation (℃) |
±1 |
Resolution (℃) |
0.1 |
Uniformity (℃) |
±1 |
±2 |
Sensor |
PT100 |
Humidity |
Range |
50~90%RH |
Stability |
±5 ~ ±7 % |
Method |
Internal |
Sensor |
High precision anti-condensation |
Illumination (Lx) |
0~12000 |
0~15000 |
Illumination Control |
6-level relative illuminance control |
Controller |
PID |
Display |
Large high efinition LCD |
Timer |
1~9999min (Optional 30x segments x100cycles) |
Material |
Internal |
Stainless steel |
External |
Cold rolled steel electrostatic spraying exterior |
Shelves |
3 |
Test Hole (Optional) |
Φ 25,50,80,100mm |
Internal Socket |
Optional |
Refrigerant |
R134a (CFC free) |
Defrosting Mode |
Automatic |
Safety Device |
Visible & Audible over temperaure, over humidity, water shortage alarm; leakage protector |
Electricity |
Voltage/Frequency |
AC 220/110V, 50/60Hz |
Consumption (W) |
880 |
1640 |
N.W./G.W. (kg) |
120/150 |
140/160 |
Shipping Size (WxDxH)(mm) |
820x800x1920 |
940x990x2080 |
Optional |
Test hole, spare shelf, internal socket, digital independent temp. Limiter, intelligent, LCD procedure temperature controller (Optional USB, RS485/232 port and built-in printer) |
Advantages of Climate Incubator:
- Climate incubator is equipped with a leak prevention system to ensure the safety of the equipment and operators.
- For accurate monitoring, a temperature control sound and light alarm system is installed.
- Defect information is displayed by the self-diagnosis feature for simple troubleshooting.
- For long service life and resistance to corrosion, use a waterproof stainless steel heating tube.
Applications of Climate Incubator:
- Biological experiments such as plant growth, microbial culture, etc., simulating the ecological environment under different climatic conditions.
- Medical experiments such as drug research and development, cell culture, etc., simulate temperature and humidity environments inside and outside the body.
- Simulation of environmental changes under various climatic conditions to study the impact on the environment and coping strategies.
Climate Incubator Packing:
Our climate incubators come in sturdy packaging to ensure that the equipment is safe and undamaged during transport. Packaging materials are carefully selected to be shock, dust and moisture resistant to ensure that the equipment arrives in perfect condition.
