These BOD incubators are microprocessor controlled and are ideal for BOD.
This highly accurate and reliable BOD incubator is specifically designed for BOD testing in environmental monitoring and laboratories. It provides stable temperature control and a uniform incubation environment, ensuring accurate and reproducible results. Whether for research, teaching, or industrial applications, this BOD incubator is the ideal choice.

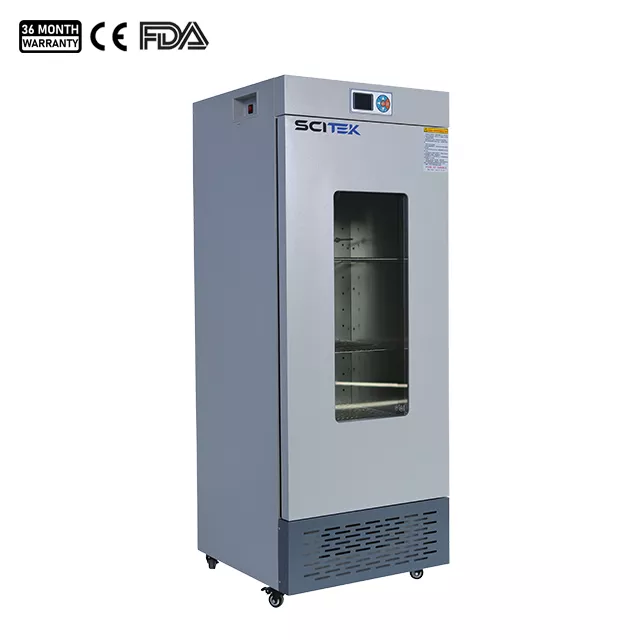

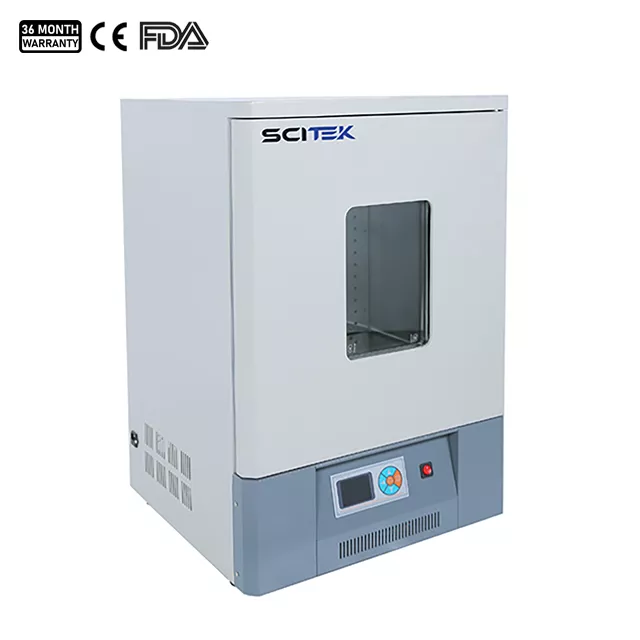

| Model | ICB-70B | ICB-100B | ICB-150B | ICB-250B | ICB-350B | ICB-450B | |
| Capacity (L) | 70 | 100 | 150 | 250 | 350 | 450 | |
| Circulation Mode | Forced convection | ||||||
| Size (WxDxH)(mm) | Internal | 450x350x450 | 510x380x510 | 505x380x800 | 550x450x1050 | 550x550x1150 | 700x550x1200 |
| External | 560x555x885 | 620x585x940 | 635x575x1425 | 675x650x1675 | 685x780x1860 | 830x760x1860 | |
| Temperature | Range (℃) | 0~60 | |||||
| Fluctuation (℃) | ±0.5 | ||||||
| Resolution (℃) | 0.1 | ||||||
| Uniformity (℃) | ±1 | ||||||
| Sensor | PT100 | ||||||
| Controller | PID | ||||||
| Display | High efinition LCD | ||||||
| Timer | 1~9999min | ||||||
| Material | Internal | Mirror stainless steel | |||||
| External | Cold rolled steel electrostatic spraying exterior | ||||||
| Shelves | 2 | 3 | 3 | 3 | 4 | ||
| Test Hole (Optional) | Φ25, 50, 80, 100mm | ||||||
| Refrigerant | R134a (CFC free) | ||||||
| Safety Device | Leakage protector, over temperature visible & audible alarm | ||||||
| Electricity | Voltage/ Frequency |
AC 220/110V, 50/60Hz | |||||
| Consumption (W) | 660 | 680 | 690 | 730 | 780 | 1320 | |
| N.W./G.W. (kg) | 55/60 | 80/100 | 100/120 | 120/140 | 140/160 | 158/200 | |
| Shipping Size (WxDxH) (mm) | 680x680x1050 | 740x710x1140 | 760x710x1610 | 800x760x1930 | 810x900x2020 | 900x1150x2080 | |
| Optional | Test hole, spare shelf, internal socket, digital independent temp. limiter, intelligent LCD procedure temperature controller (Optional USB, RS485/232 port, and built-in printer) | ||||||
Our BOD incubators come in sturdy packaging to ensure that the equipment is safe and undamaged during transport. Packaging materials are carefully selected to be shock, dust and moisture resistant to ensure that the equipment arrives in perfect condition.
ICB-150B BOD Incubator:
A display of the internal multi-stage cartridge module with three large cartridges neatly arranged in individually sealed packages to ensure cleanliness during transportation and installation. The cartridges are of superior quality for high efficiency filtration and deionization.
Equipped with stainless steel partitions and adjustable trays, users can flexibly adjust the space according to the size and number of samples.
The back of the incubator is simple and practical, designed with efficient heat dissipation ports and power supply interface, which is convenient for the stable operation of the equipment.

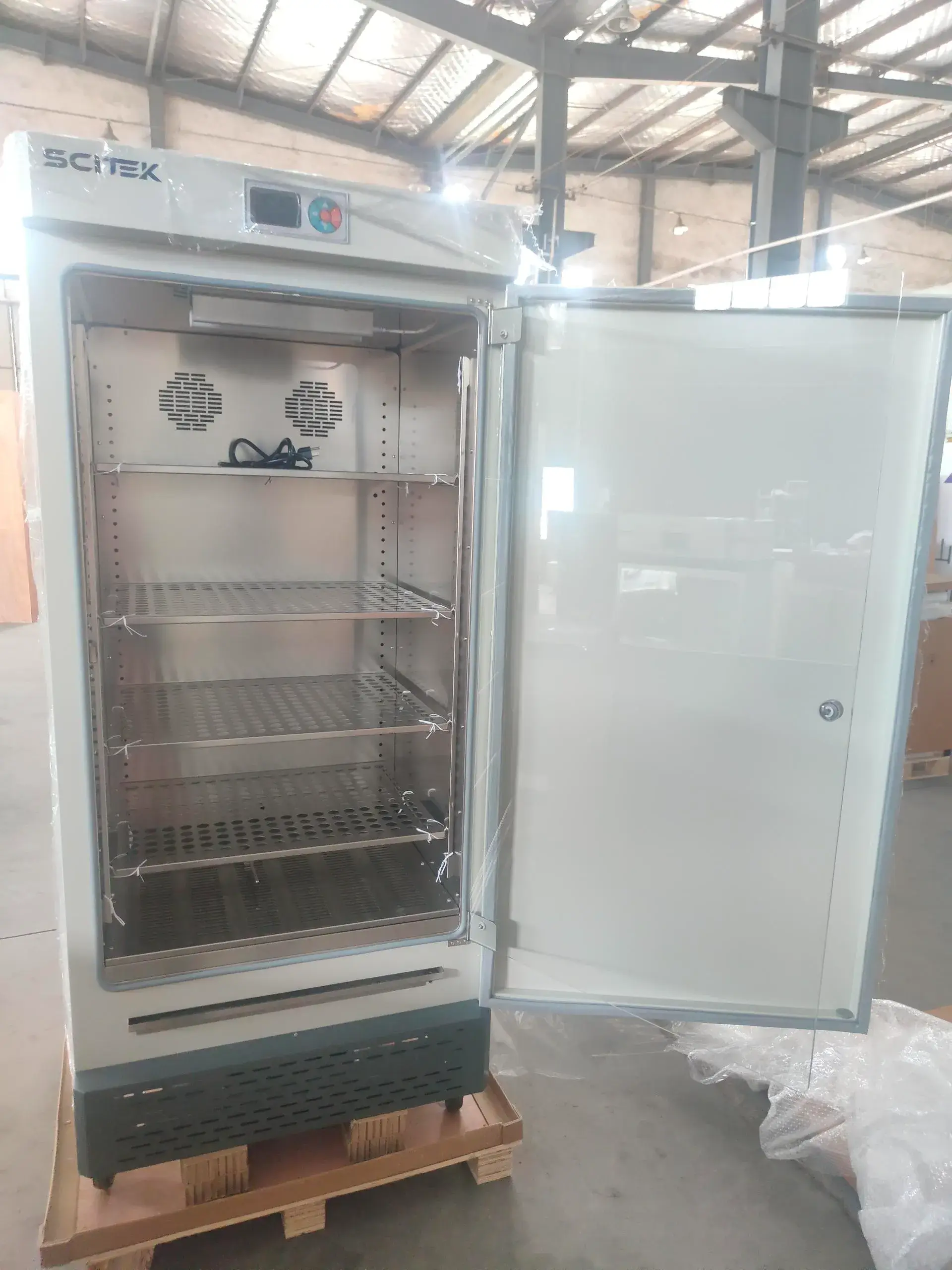

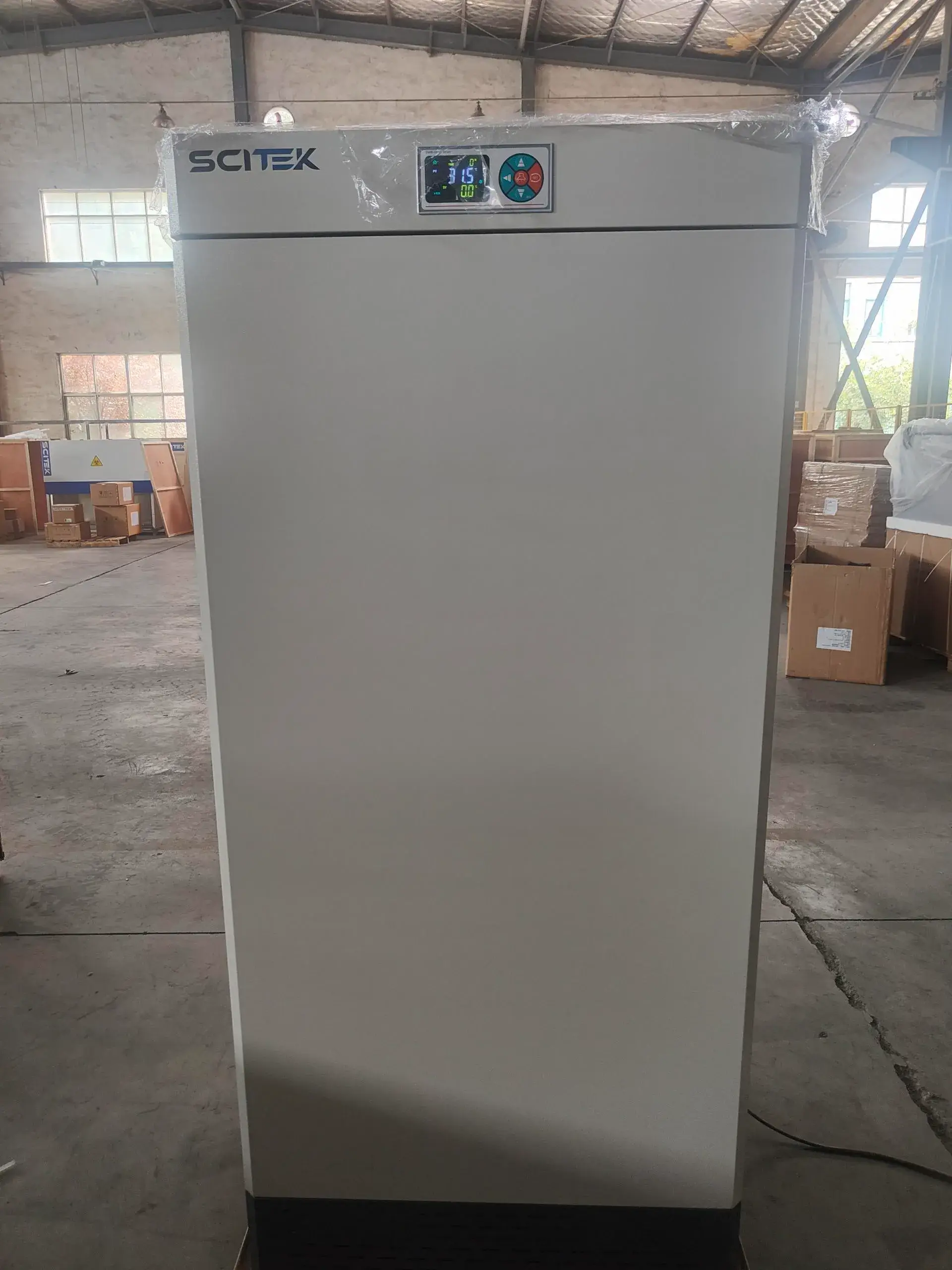

ICB-450B BOD Incubator:
Difference between a normal incubator and a BOD incubator
Temperature is the primary distinction between a BOD incubator and an incubator. A BOD incubator, also called a chilled incubator, has both cooling and heating options and is typically operated at low temperatures like 10°C and 21°C. In contrast, a general purpose incubator only has a heating option and is typically run at 37°C.
Difference between BOD and COD incubators?
The quantity of oxygen needed by microbes to decompose organic compounds is known as biochemical oxygen demand. On the other hand, the quantity of oxygen needed for oxidation to break down organic material is known as chemical oxygen demand.
What is the principle of BOD incubator?
The principle of the BOD Incubator is to measure the BOD in a water sample by precisely controlling the temperature and environmental conditions to simulate the temperature in a natural body of water and to promote the activity of microorganisms.
