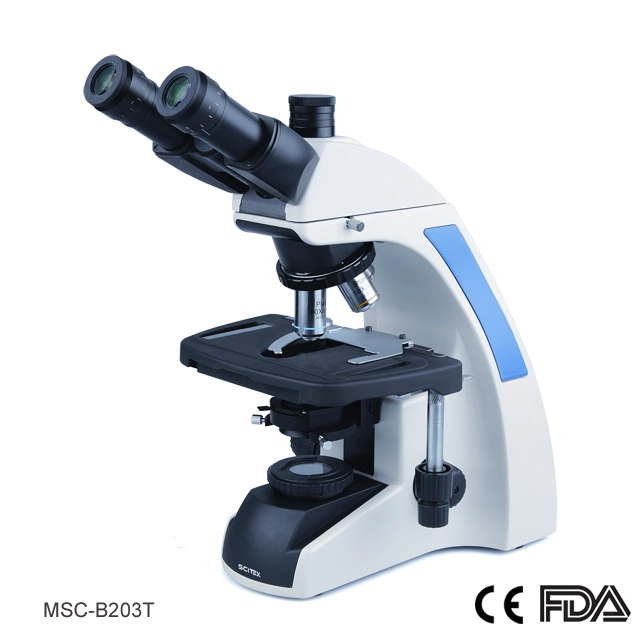

Laboratory biological microscopes adopt a new structural design, with a smoother appearance and stable performance.
The biological microscope features an infinite optical system that delivers exceptional clarity and accuracy in viewing. The trinocular lens is angled to ensure comfortable viewing over extended periods. Additionally, the wide selection of eyepieces offers versatile magnification options to accommodate various specimen needs.
| Model | MSC-B203T |
| Optical System | Infinite optical system |
| Viewing Head | Siedentopf trinocular head/seidentopf trinocular head, inclined at 30°, interpupillary 50-75mm |
| Eyepiece | WF10×22mm wide field eyepiece WF10×22mm; xWF16×; xWF20× |
| Objective | Infinite plan achromatic objective: 4×, 10×, x20×, 40×, 100× |
| xInfinite plan phase objective: Ph10x, 20x, 40x, 100x | |
| Nosepiece | Quadruple nosepiece/xQuintuple nosepiece |
| Stage | Double layers mechanical stage 210x150mm/ 75x50mm |
| Condense | Abbe condenser N.A. 1.25 with iris diaphragm & filter |
| Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm |
| Illumination | LED illumination, brightness adjustable |
| Optional | Phase contrast kit; dark field attachment |
| 1.3M-20.M pixel microscope camera/win10 Pad/digital display | |
| Shipping Size(W×D×H)(mm) | 590x350x360 |
| G.W. (kg) | 9 |

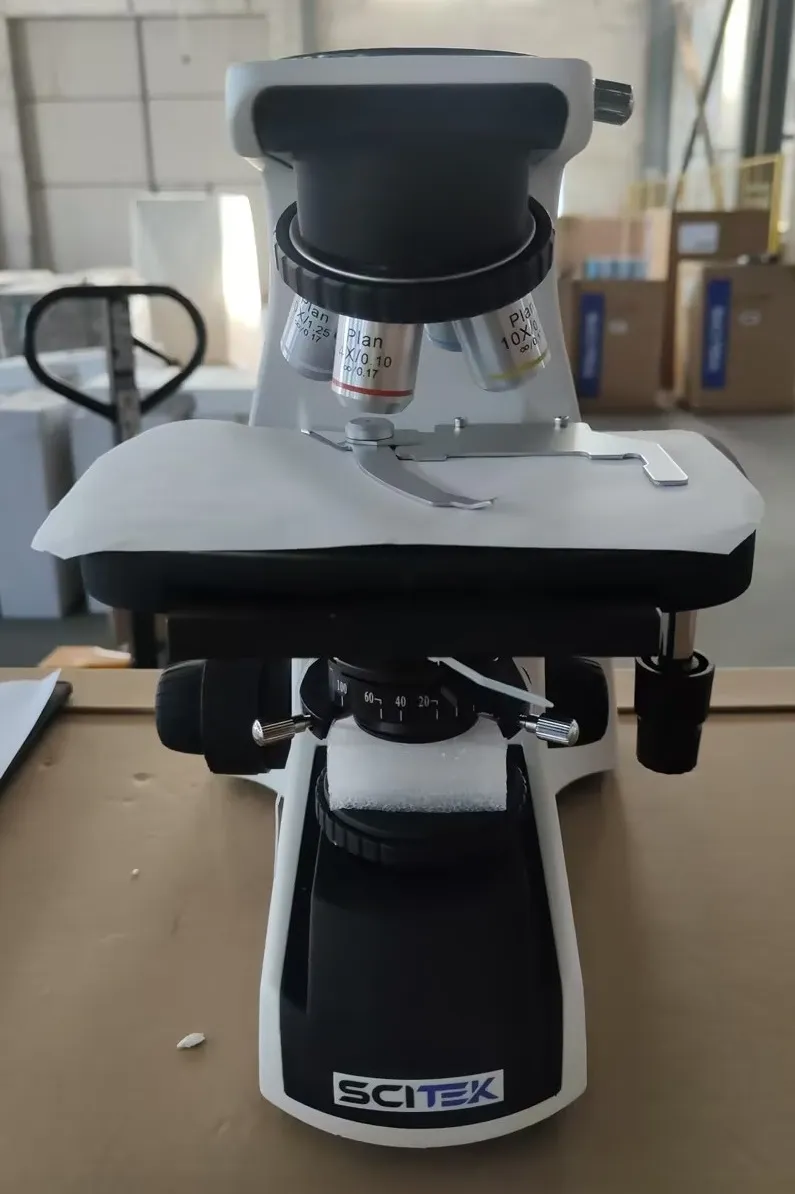

A close-up of the mechanical stage and adjustment knobs demonstrates the precision and quality of the microscope components. Stylishly designed with a compact and modern appearance, the biological microscope is ideal for any laboratory environment.

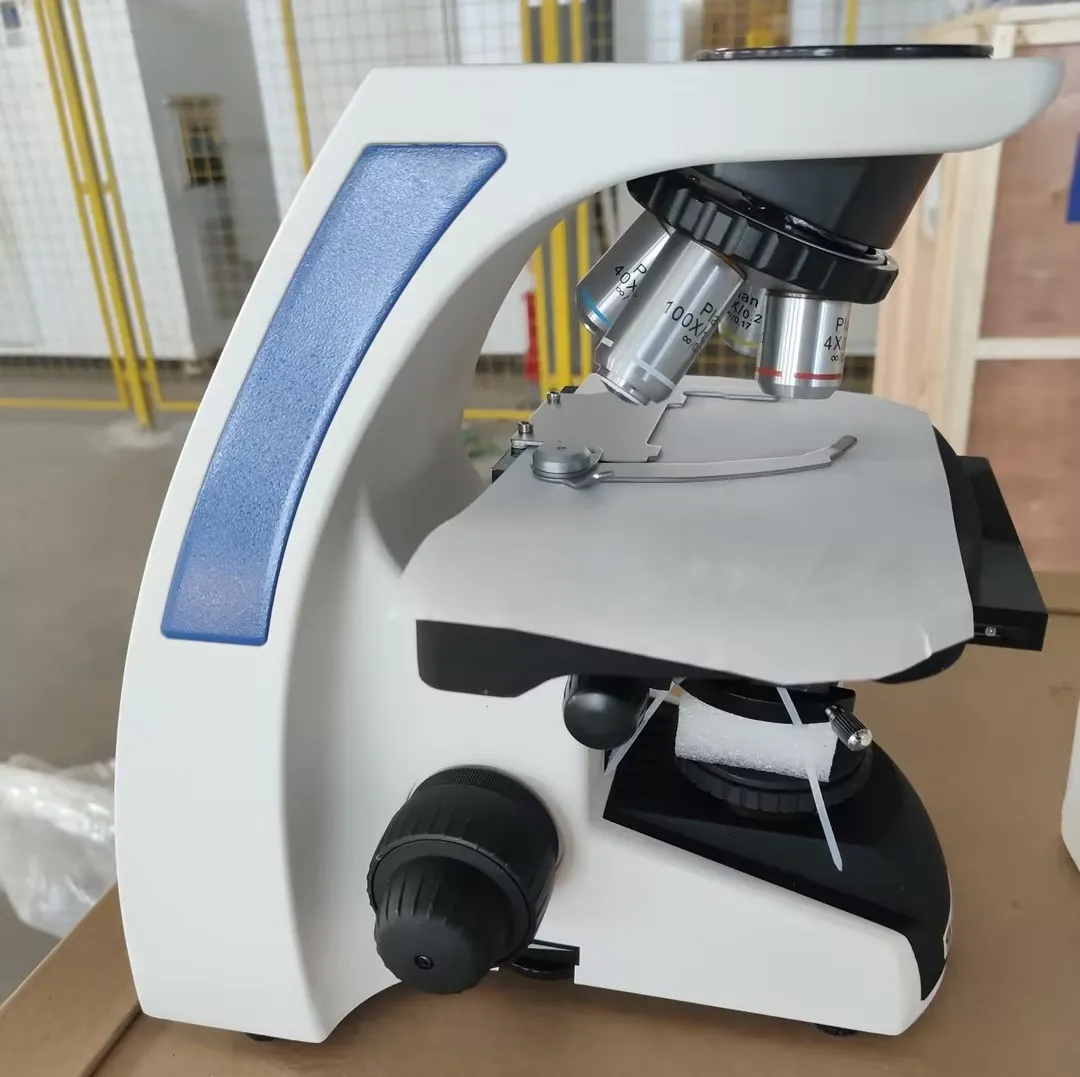

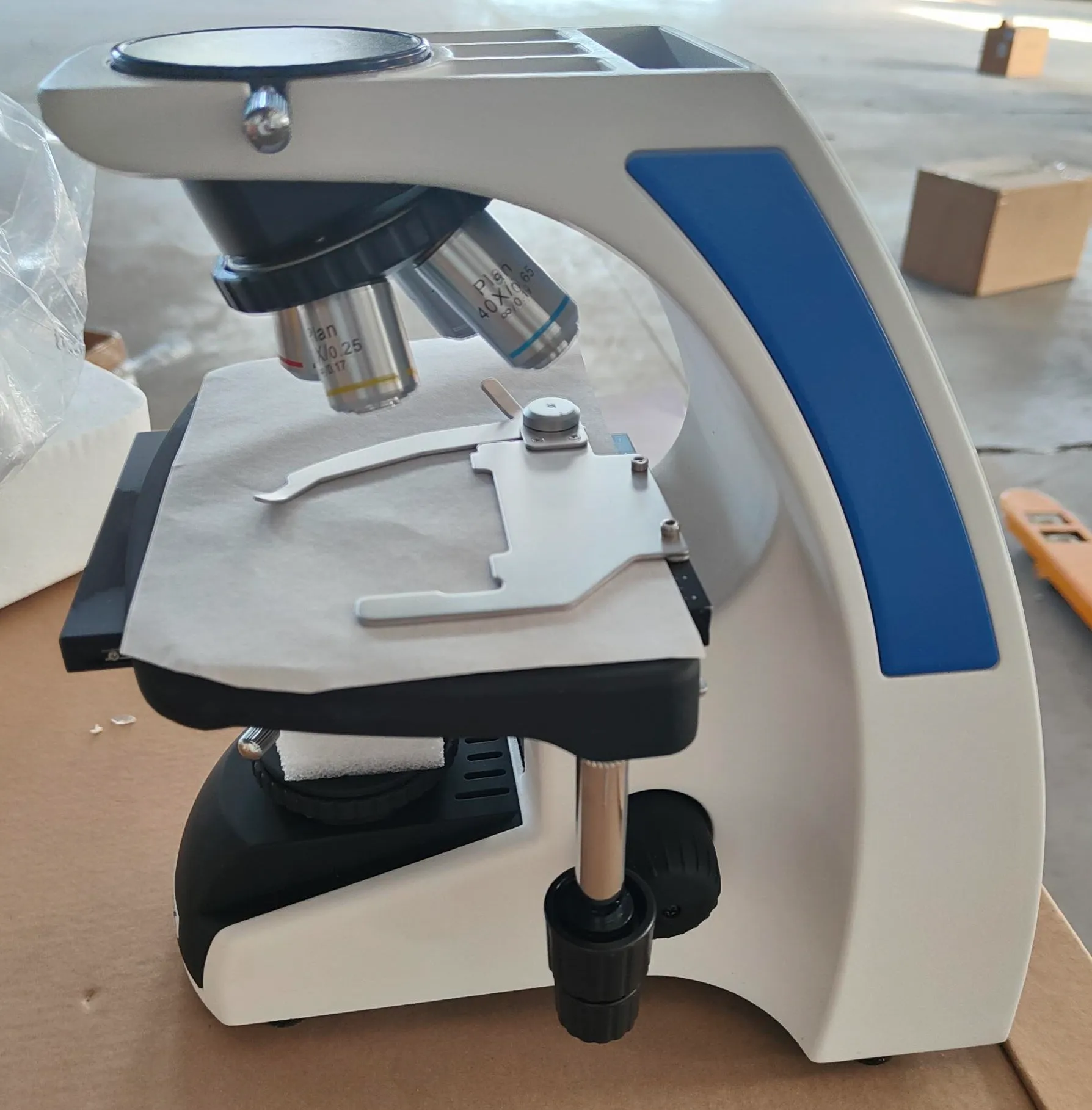

The side view highlights the ergonomic construction of the microscope, ensuring user comfort during extended use.

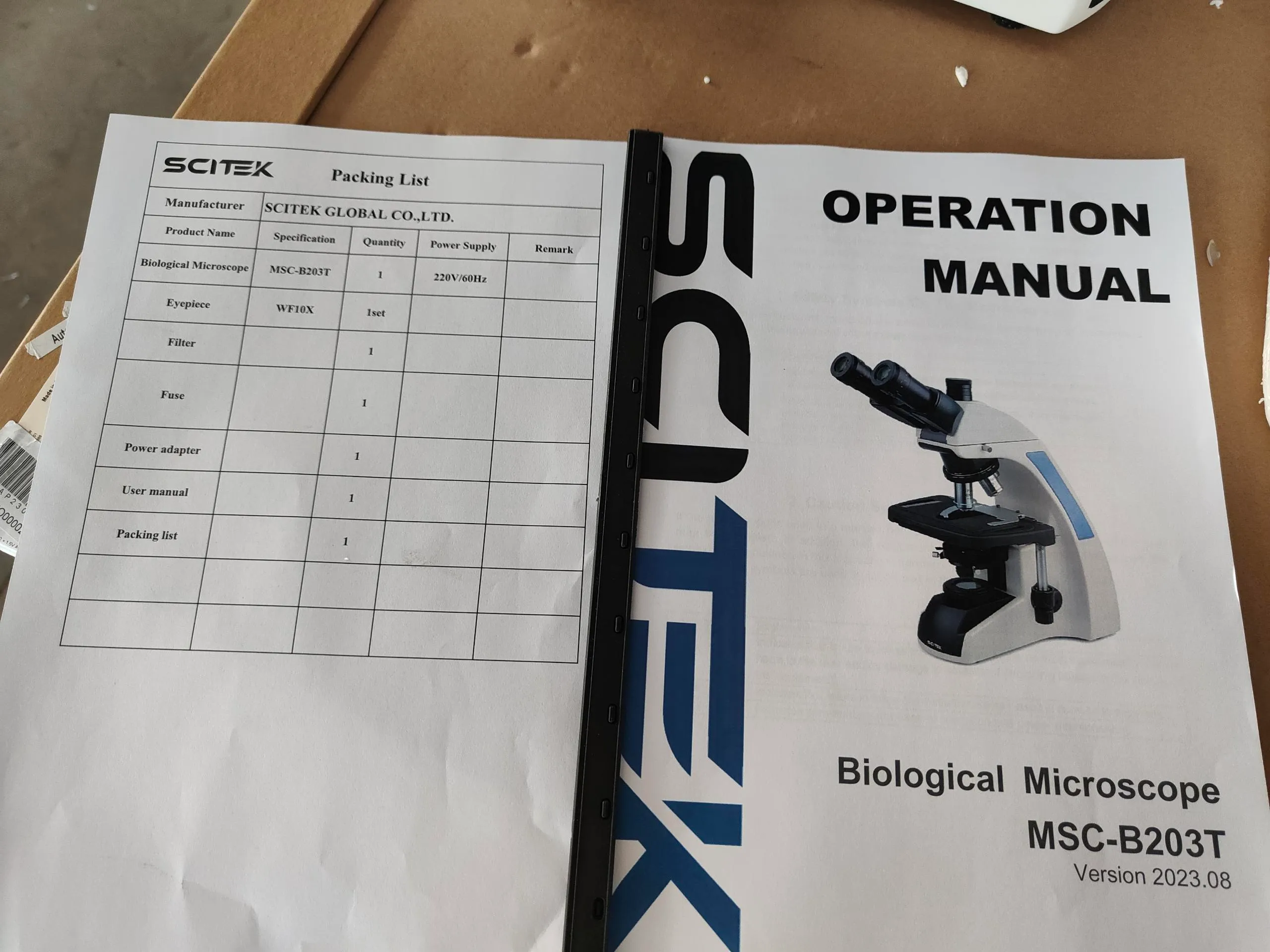

A detailed operation manual ensures easy setup and efficient use, guiding the user through every function of the microscope.
