The biological microscope adopts a new structural design with a smoother appearance and stable performance.

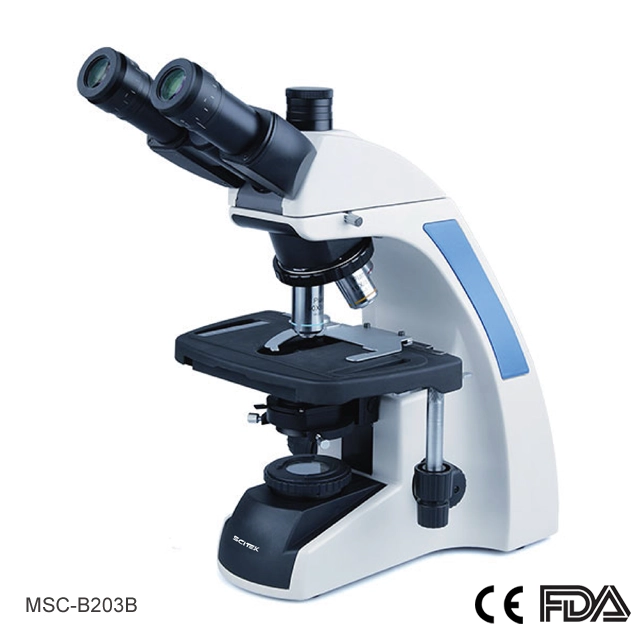

The MSC-B203B biological microscope is a cutting-edge instrument designed for advanced microscopy applications, featuring infinite optics for superior image quality. Its Siedentopf binocular lenses offer a comfortable fit and provide a wide, detailed field of view, ensuring ergonomic observation even during extended use.
| Model | MSC-B203B |
| Optical System | Infinite Optical System |
| Viewing Head | Siedentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm |
| Eyepiece | WF10×22mm Wide Field Eyepiece WF10×22mm; xWF16×; xWF20× |
| Objective | Infinite Plan Achromatic Objective: 4×, 10×, x20×, 40×, 100× |
| xFlour Semi-apo Abjective: 4×, 10×, x20×, 40×, 100× | |
| xInfinite Plan Phase Objective: Ph10x, 20x, 40x, 100x | |
| Nosepiece | Quadruple Nosepiece/xQuintuple Nosepiece |
| Stage | Double Layers Mechanical Stage 210x150mm/ 75x50mm |
| Condense | Abbe Condenser NA1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm |
| Illumination | LED Illumination, Brightness Adjustable |
| xOptional | Phase Contrast Kit; Dark Field Attachment; Fluorescent Attachment |
| xOptional Configuration | |
| Shipping Size (W×D×H)(mm) | 590x350x360 |
| G.W. (kg) | 9 |
The siedentopf binocular lenses ensure comfortable and prolonged use, providing a wide and detailed field of view.
