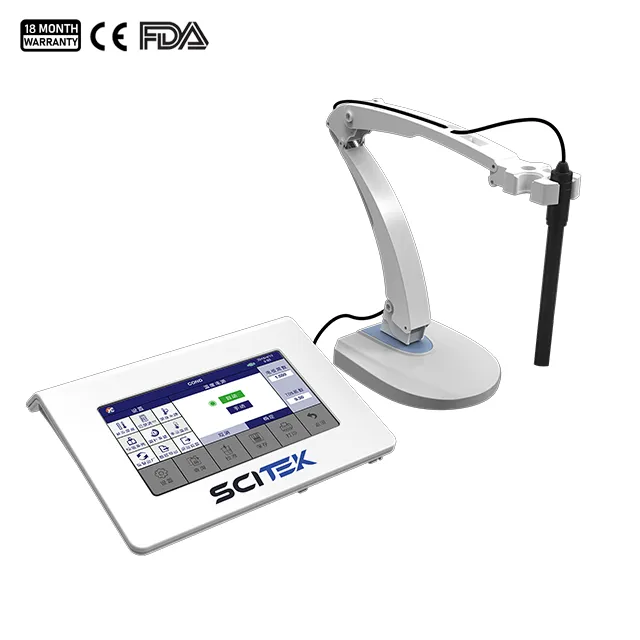

Benchtop Conductivity Meter

  • Model : CON-B11
  • Resolution : 0.01/0.1/1μS/cm; 0.01/0.1mS/cm
  • Accuracy : Electrode: ±1.0% FS, Meter: ±1.5% FS
  • Temp. Compensation Range : (0 ~ 50)℃, auto
  • External Size (W×D×H)(mm) : 215x170x40

Share the product

Benchtop Conductivity Meter Feature:

  1. 7-inch Touch Screen: High-resolution (1024×600) and sensitive capacitive touch screen.
  2. Built-in Microprocessor: Includes automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis.
  3. Wireless Printing: Supports Bluetooth printing; real-time data transfer to mobile devices optional.
  4. Smart Electrode Status: Ensures accurate use with smart display.
  5. Advanced Conductivity Measurement: Measures 0.5μS/cm to 200mS/cm with high accuracy.
  6. Measurement Modes: Switches among conductivity, TDS, salinity, and resistivity; precise TDS and salinity calculations.
  7. Automatic Temperature Compensation (ATC): Fast and precise measurements.
  8. Standard Solutions: Auto-recognition of 8 conductivity standards (Europe, USA, China).
  9. Data Storage: Stores 2000 test results, exportable to USB and Excel.

Benchtop Conductivity Meter Specification:

Model CON-B11
Conductivity Measuring Range Conductivity:
(0.00~20.00)μS/cm
(20.0~200.0)μS/cm
(200~2000)μS/cm
(2.00~20.00)mS/cm
(20.0~200.0)mS/cm
TDS: (0 ~ 100)g/L
Salinity: (0 ~ 100)ppt
Resistivity: (0 ~ 100)MΩ·cm
Resolution 0.01/0.1/1μS/cm; 0.01/0.1mS/cm
Accuracy Electrode: ±1.0% FS, Meter: ±1.5% FS
Temp. compensation Range (0 ~ 50)℃, auto
Electrode Constant 0.1 / 1 / 10 cm-1
Reference Temp. 25℃, 20℃, 18℃
Temperature Range (-10 ~ 110)℃
Resolution 0.1℃
Accuracy 5 ~ 60℃: ±0.5℃; Others: ±1.0℃
Other Parameters Display 7-inch colored capacitive touch screen
Data Storage 1000 sets
Power 12V (110-220, 50-60Hz adapter)
Communication Interface USB, RS232, Bluetooth
Size & Weight 240×170×70mm/600g
Working Conditions Temperature 5 ~ 35 ℃
Humidity ≤80%
IP grade IP54
Meter Kits 1) Conductivity meter
2) Electrode holder
3) Two-in-one electrode that consists of Platinum black electrode (K=1) and temperature probe.
4) Power adapter
External Size(W×D×H)(mm) 215x170x40
Shipping Size(W×D×H)(mm) 475x430x75
Net /Gross Weight (kg) 0.6/3
