The elisa plate reader is suitable for use in biomedical research, clinical diagnostics, drug discovery and more.

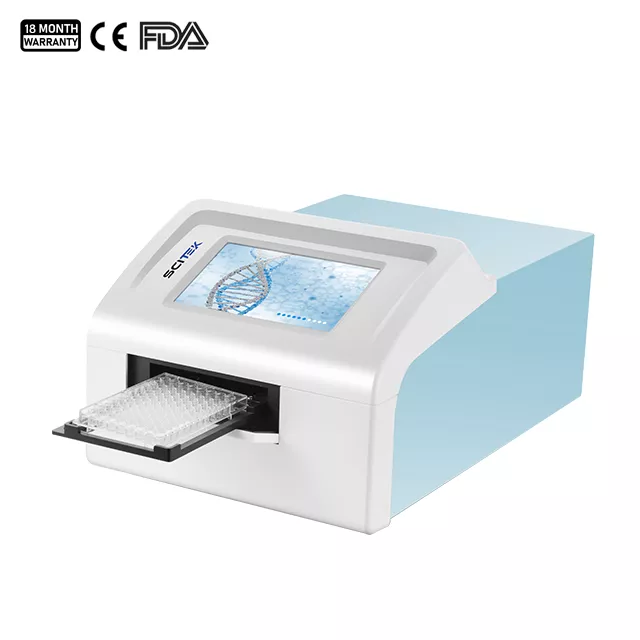

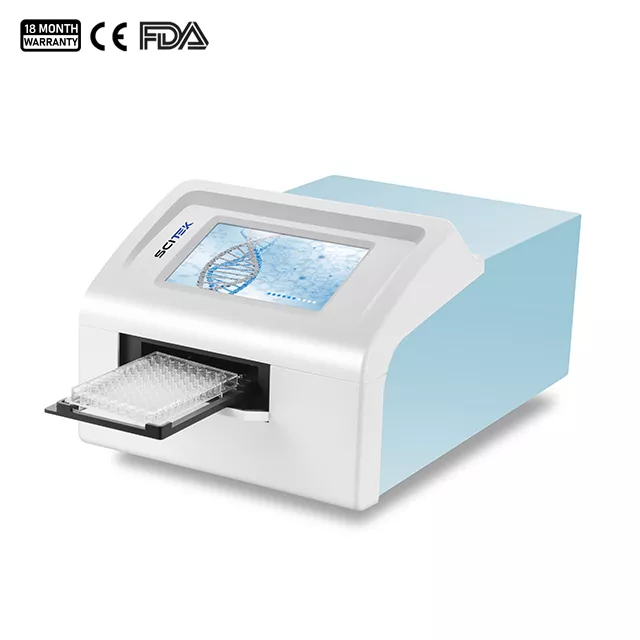

ELMR-96/ELMR-96I is a commonly used plate washer. It is capable of sensitively measuring absorbance signals on microtiter plates to accurately detect and analyse the concentration and activity of biomolecules.
| Model | ELMR-96/ELMR-96I |
|---|---|
| Light Source | 6V 10W halogen lamp |
| Wavelength Range | 340～750nm |
| Filter | Standard configuration: 405, 450, 492, 630nm four filters; It can be loaded with up to eight filters |
| Absorbance Range | 0.000-4.000Abs |
| Resolution | 0.001Abs |
| Linearity | (0, 2.0)≤±1%; [2.0, 4.0)≤±2% |
| Wavelength Indication Error | ≤±3nm |
| Wavelength Repeatability | ≤±1.5nm |
| Repeatability | [0, 3.0)≤0.3%, [3, 4.0)≤1% |
| Stability | [0, 3.0)≤0.3%, [3.0, 4.0)≤1% |
| Accuracy | [0, 2.0)≤ ± 0.005, [2.0 ,3.0)≤ ± 1%, [3.0, 4.0)≤ ± 1.5% |
| Sensitivity | Sensitivity≥0.010 |
| Channel Difference | <0.01A(1.0Abs standard filter ) |
| Measuring Speed | Single wavelength <10s/96 wells, dual wavelengths <16s/96 wells (normal mode) |
| Incubation Temperature | Room temperature+4℃-50℃ (ELMR-96I) |
| Ambient Temperature | 4℃~ 45℃ |
| Relative Humidity | ≤70% |
| Power Supply | AC100-240V, 50/60Hz |
| Sizes(W×D×H)(mm) | 280x432x220 |
| Shipping Size(W×D×H)(mm) | 580x430x360 |
| N.W./G.W. (kg) | 8.5/13 |
The large size display is convenient for users to monitor the experiment process in real time.
The elisa plate reader provides clear experimental data and graphical interface. Users can easily navigate through the functions via the touch screen and view experiment results and progress in real time.
Equipped with multiple ports, including a power jack and USB port for easy connection to a computer or other device.
